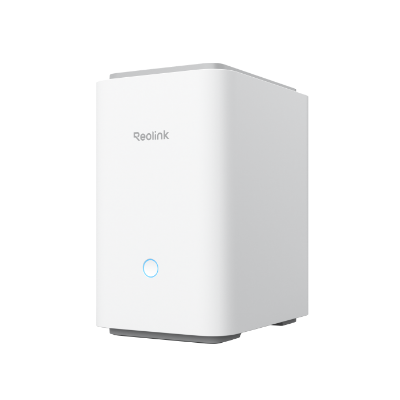

Reolink HUB Home Hub Pro Supports 24 Cameras
- Built-in 2TB HDD
- Wi-Fi 6 Ready
- Up to 24 Reolink Cams Supported
- Encrypted Local Storage Without Fees
- Centralized Data Management
Record every second locally on the Home Hub Pro. With a built-in 2TB HDD, it offers ample storage without recurring costs. Need more space? Easily expand your storage with an HDD up to 16TB. Rest easy knowing your home is under watchful eyes 24/7.
Streamline your security with this centralized solution. Seamlessly integrating with a wide range of cameras, the Home Hub Pro efficiently manage your Reolink devices and footage across multiple channels from a single interface.
* Reolink Home Hub Series products are currently compatible with all Reolink PoE cameras, Plug-in Wi-Fi cameras, and most recently released battery Wi-Fi cameras except 2MP battery cameras and 4G cameras.
Device Management
- Camera : Up to 24 Cameras (Up to 12 PoE & Plug-in Cams)
- Device Compatibility : All Reolink Wi-Fi/PoE cameras (Battery cameras require a firmware upgrade)
- Safety Protection : Account access and sharing options for individual devices are only available through Home Hub Pro

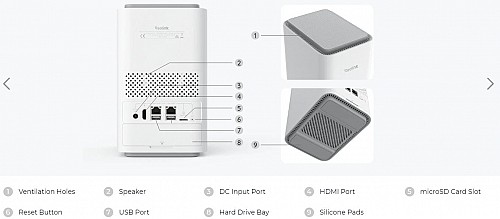

Input/Output
- HDMI : YES
- USB : YES
- Reset Button : YES
- Power : DC 12V/2A
- Speaker : YES (Max. 120dB)
- Ethernet : x RJ-45 10/100 Mbps self-adaptive (for WAN),1 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras)
Storage
- SATA : YES (1 x 2TB HDD included)
- microSD Card Slot : Up to 512GB*1
- Storage Encryption : Protect privacy and prevent theft with AES-128 encryption algorithm
Preview & Playback
- Live View : APP, PC Client
- Playback : Smart playback/event history
Wi-Fi
- Wireless Standard : IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
- Operating Frequency : 2.4/5 GHz
- Wireless Security : WPA/WPA2/WPA3
Sub-1 GHz
- Operating Frequency : 868/915MHz
System
- Network Protocols : TCP/IP, UDP, DHCP, P2P, UPNP, RTSP,RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- OS Supported : PC: Windows, Mac OS; Smartphone: iOS, Android
- Max. User Access : 11 users (1 admin account & 10 shared accounts)
- Smart Home : Google Assistant
Working Environment
- Operating Temperature : -10℃~+45℃
- Operating Humidity : 10%~90%

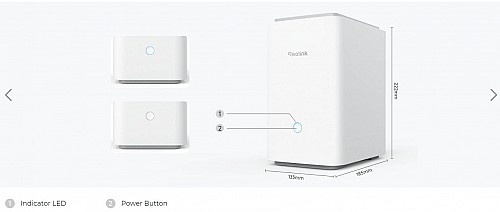

Mechanical
- Dimensions : 185*133*222mm
- Weight : 1096g
