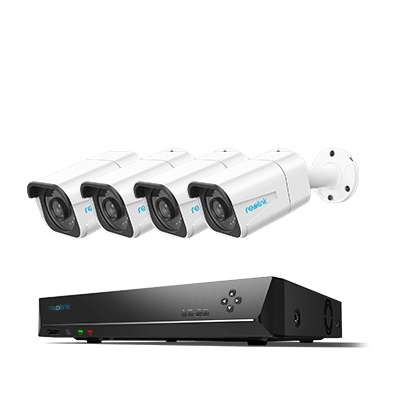

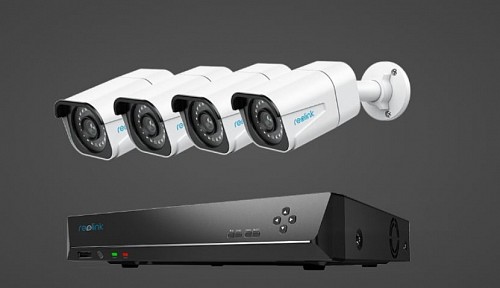

Reolink KIT 8xChNVR+4x8MP Bullet+2TB NVR RLK8-800B4-8MP
Get All the Details in 12MP
- The security system goes above and beyond to deliver video quality of 12MP resolution, capturing even the finest nuances in stunning detail
Smart Person/Vehicle Alerts
- By analyzing the shapes of humans, vehicles, and pets, RLK8-1200B4-A can accurately detect these objects and sends you real-time event alerts. Ignoring other less important objects’ movements, it greatly reduces false alarms
Clear & Full-Color Night Vision
- This smart camera kit with spotlights offers full-color video recording day and night. It continues to keep your family firmly guarded after sundown
PoE — Faster, Easier & Lower-Cost Installation
- Thanks to Power over Ethernet (PoE) technology, each camera of this kit can transmit videos and be charged simultaneously via only one network cable . You can install these cameras quickly and nicely
Non-Stop Recording
- With the 2TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat
Work with Various Reolink IP Cameras
- This security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP or 4MP – to cover every corner in your home, store or factory
Video & Audio
- Image Sensor : 1/2.49" CMOS Sensor
- Video Resolution : Default: 4512X2512 (12 megapixels) at 20 fps
- Lens : f=4.0mm; F=1.6, with IR-cut filter
- Video Format : H.265
- Field of View: Horizontal: 93° / Vertical: 49°
- Day & Night : Auto-switching with IR-cut filter
- Infrared Night Vision : 30 meters (LED: 2pcs/28mil/850nm)
- Color Night Vision : Spotlight: 1pcs/4.3W/6500K/700 Lumens
- Audio : Two-way audio (via Reolink App/Client)
Power
- POE : IEEE 802.3af, 48V Active
- DC Power : DC 12.0V⎓1A, <12W

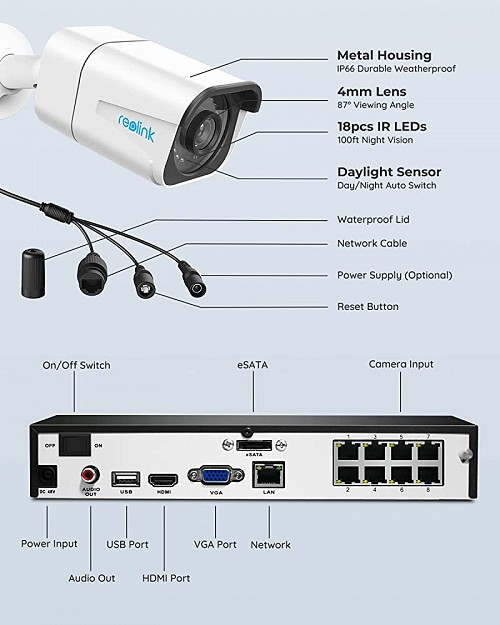

Interface
- Power : DC power port
- System : Reset button
- Ethernet : One 10M/100Mbps; RJ45
- Audio : Built-in microphone and speaker
Software Features
- Frame Rate : Mainstream: 2fps - 20fps (default: 20fps) / Substream: 4fps - 20fps (default: 10fps)
- Code Rate: Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps) / Substream: 128Kbps - 1024Kbps (default: 768Kbps)
- Smart Alarm : Motion detection; person detection; vehicle detection; pet detection
Working Environment
- Temperature : Operating temperature: -10°C~+55°C (14°F~131°F)
- Humidity : Operating humidity: 10% ~ 90%
- Waterproof : IP67
Size & Weight
- Dimension : Φ67*187mm
- Weight : 460g
NVR
Hardware
- Hardware : V2
Video/Audio Input
- IP Video Input : PoE IP camera x 8
- Audio Input : Cameras with built-in mic
Video/Audio Output
- Video Output : VGA, HDMI
- Display Resolution : HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 / VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
- Audio output : 1-channel, RCA
Decoding
- Video Format : H.264, H.265
- Live View/Playback Resolution : 4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
- Synchronous Playback : Up to 4 channels
- HDD : 1 x SATA interface (1 x 2TB HDD included)
- External HDD : 1 eSATA interface for HDD
- Capacity : Up to 12TB (max. 6TB capacity for each HDD)
USB
- USB Interface : 2 x USB 2.0
NETWORK
- Network Interface : 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN / 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
- Max. Power Per Port : 25W
- Supported Standard : IEEE 802.3af/at
Network
- Network Protocols : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browsers Supported : Edge, Firefox, Chrome, Safari
- OS Supported : PC: Windows, Mac OS; smartphone: iOS, Android
- Max. User Access : 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
- Power Supply : DC 48V~53V
- Power Consumption : <10W (without HDD&PoE)
- Working Environment : Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
- Dimensions : 260 x 41 x 230mm
- Weight : 1.4kg
