Dahua

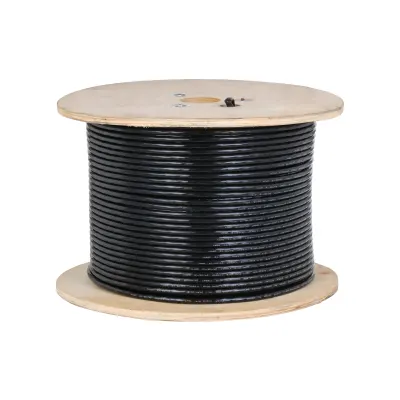

Dahua CAT6A OFC Cable 305m 0.57mm Black Outdoor PFM920-6AU
Κωδικός παραγγελίας: 28460EAN: 6939554982026
- Material:MDPE
- Diameter:7 mm ± 0.3 mm (0.2756" ± 0.0118")
- Wire Gauge:23 AWG
- Min. Average Thickness:0.7 mm (0.0276")
- Color:Black
- Όλα τα χαρακτηριστικά
379,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- 305m/carton Outdoor U/UTP CAT6A, power over Ethernet, compatible with one cable
- High-purity oxygen-free copper conductor material
- Customized PE outer sheath,certain degree of waterproof
- Environmentally friendly and all materials used are RoHS compliant
- 10-year warranty
Χαρακτηριστικά
- Material
- MDPE
- Diameter
- 7 mm ± 0.3 mm (0.2756" ± 0.0118")
- Wire Gauge
- 23 AWG
- Min. Average Thickness
- 0.7 mm (0.0276")
- Color
- Black
- Specification
- Translucent 4.5 mm × 0.4 mm (0.18" × 0.0157")
- Thickness
- 0.07 mm × 24 mm (0.0028" × 0.9449")
- Max. DC Resistance of a Single Conductor
- 7.35 Ω / 100 m
- Min. Insulation Resistance
- 5000 MΩ·km
- Max. DC Resistance Unbalance
- 2% (pair intra), 4% (pairs inter)
- Dielectric Strength
- No breakdown with 1kV DC for 1 min
- Characteristic Impedance
- 100 Ω ± 15 Ω
- Near-end Crosstalk
- ≥34.8 dB / 100 m @ 500 MHz
- Max. Attenuation
- ≥45.3 dB / 100 m @ 500 MHz
- Return Loss
- ≥17.3 dB / 100 m @ 500 MHz
- Tensile Strength
- Sheath ≥12 MPa, insulation ≥10 MPa
- Elongation at Break
- Sheath ≥350%, insulation ≥200%
- Installation Bending Radius
- >15 times of outer cable diameter
- Conductor Elongation at Break
- ≥15%
- Shrinkage of Insulation
- ≤5%
- Color Migration Resistance of Insulation
- No migration
- Sheath Tensile Strength and Elongation at Break after Aging
- ≥9.6 MPa, rate of change ≤20%
- Low Temperature Bending Test
- No cracking after the test
- Heat Shock Test
- No cracking after the test
- Operation Temperature
- –20 °C to +60 °C (–4 °F to +140 °F)
- Installation Temperature
- 0 °C to +50 °C (32 °F to 122 °F)
- Storage Temperature and Humidity
- –10 °C to +40 °C (14 °F to 104 °F), <60% (RH)
- Cable Length
- 305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)
- Packaging Method
- 305.0 m (1,000.66 ft) a roll, plywood wooden shaft
- Packaging Dimensions
- 300 mm × 300 mm × 320 mm (11.81" × 11.81" × 12.60") (L × W × H)
- Net Weight
- 15 kg ± 0.60 kg (33.07 lb ± 1.32 lb)
- Gross weight
- 16.50 kg ± 0.60 kg (36.38 lb ± 1.32 lb)
- Executive Standards
- YD/T 3296.2-2018
