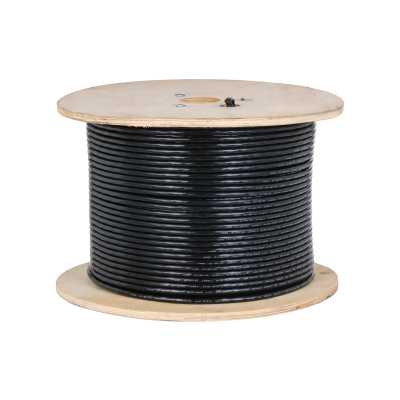

Dahua CAT6A OFC Cable 305m 0.57mm Black Outdoor PFM920-6AU

Specifications

Material

MDPE

Diameter

7 mm ± 0.3 mm (0.2756" ± 0.0118")

Wire Gauge

23 AWG

Min. Average Thickness

0.7 mm (0.0276")

Color

Black

Specification

Translucent 4.5 mm × 0.4 mm (0.18" × 0.0157")

Thickness

0.07 mm × 24 mm (0.0028" × 0.9449")

Max. DC Resistance of a Single Conductor

7.35 Ω / 100 m

Min. Insulation Resistance

5000 MΩ·km

Max. DC Resistance Unbalance

2% (pair intra), 4% (pairs inter)

Dielectric Strength

No breakdown with 1kV DC for 1 min

Characteristic Impedance

100 Ω ± 15 Ω

Near-end Crosstalk

≥34.8 dB / 100 m @ 500 MHz

Max. Attenuation

≥45.3 dB / 100 m @ 500 MHz

Return Loss

≥17.3 dB / 100 m @ 500 MHz

Tensile Strength

Sheath ≥12 MPa, insulation ≥10 MPa

Elongation at Break

Sheath ≥350%, insulation ≥200%

Installation Bending Radius

>15 times of outer cable diameter

Conductor Elongation at Break

≥15%

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥9.6 MPa, rate of change ≤20%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operation Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Installation Temperature

0 °C to +50 °C (32 °F to 122 °F)

Storage Temperature and Humidity

–10 °C to +40 °C (14 °F to 104 °F), <60% (RH)

Cable Length

305.0 m ± 2 m (1,000.66 ft ± 6.56 ft)

Packaging Method

305.0 m (1,000.66 ft) a roll, plywood wooden shaft

Packaging Dimensions

300 mm × 300 mm × 320 mm (11.81" × 11.81" × 12.60") (L × W × H)

Net Weight

15 kg ± 0.60 kg (33.07 lb ± 1.32 lb)

Gross weight

16.50 kg ± 0.60 kg (36.38 lb ± 1.32 lb)

Executive Standards

YD/T 3296.2-2018
