EMP Multiswich ECO Active 9/20 MS9/20EIA-6

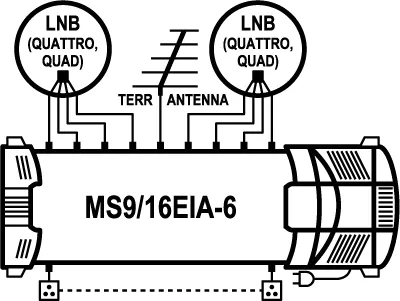

• 9in/20out standalone multiswitch for distribution of 8 SAT IF signals including passive terrestrial for up to 20 users

Frequency range:

• LNB inputs: 950-2150 MHz
• Terr. input: 40-862 MHz
• Outputs: 40-2150 MHz

Control:

• DiSEqC 1.0 (2.0) commands

Insertion loss:

• Sat: 0 dB avg
• Terr: 5 dB avg

Sat. inputs isolation:

• Between V/H polarisations: 20 dB min
• Between low/high Bands: 20 dB min
• Between sat. systems: 25 dB min

Maximum input level:

• Sat: 90 dBµV avg
• Terr: 90 dBµV avg

Maximum output level:

• Sat: 90 dBµV avg
• Terr: 85 dBµV avg

Power consumption:

• From each receiver: 50 mA (18 V)
• From internal power supply: 4.5 W + LNB

Dimensions (w,d,h):

• 47.0 x 15.2 x 8.7 cm

(power cord length 130 cm)

Temperature range:

• -25 ~ +60 °C
