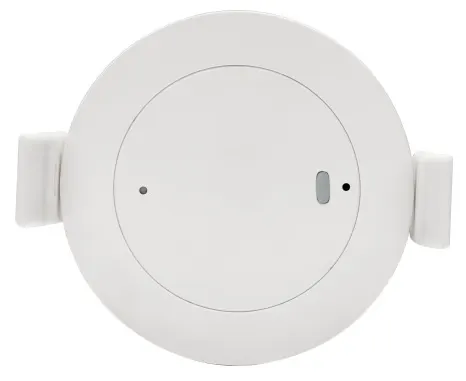

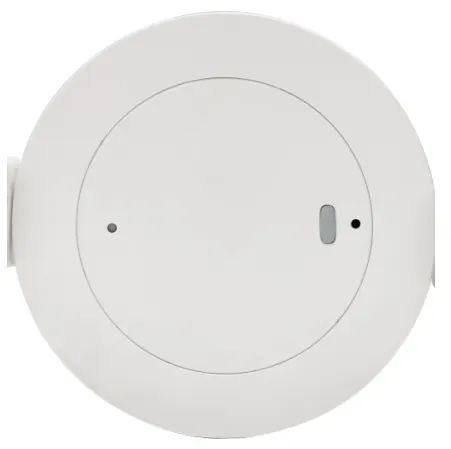

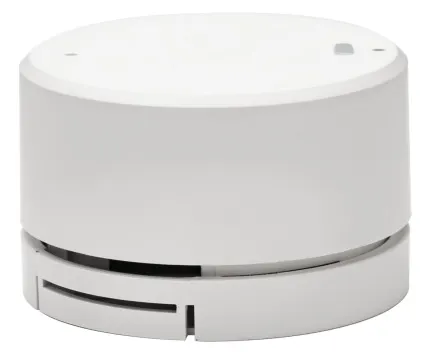

HDL Sensor Occupancy Recess/Surface Mount MSMW24-KT.11
Κωδικός παραγγελίας: 29020
- Rated voltage:30V DC
- Rated current:50mA/30V DC
- Input Voltage:21 - 30V DC
- Dry contact:2 dry contacts
- Communication protocol:KNX
- Όλα τα χαρακτηριστικά
96,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- Human presence detection: 24GHz millimeter wave radar technology, accurate and high sensitivity for detecting human motion and breath
- Illuminance monitoring: Real time illuminance can be detected by the device, providing smart scene control in accordance with actual illuminance
- Temperature monitoring: Built-in temperature sensor for monitoring real-time environment status
- Dry contact input: Supports 2 dry contact inputs for logical judgment.
- Easy lighting control: supports controlling 1 lighting device, supports automatic and semi-automatic control, and controls switches based on environmental illumination
- Easy HVAC control: Supports controlling 1 HVAC device, with HVAC on/off delay function
- Constant brightness control: Supports one constant brightness automatic adjustment function module, which automatically senses environmental brightness and adjusts dimming values
- 2 working modes: Single mode and master/slave mode. One master sensor can have 15 slave sensors, providing wide range of detection
- Logic settings: 5 independent logic modules, each of which can control 10 targets, including switches, dimming, alarm devices, etc
- Logical input conditions: human body detection status, illuminance value, temperature value, dry contact input, external message, threshold comparator
- 3 logical relations: AND, OR, XOR
- Control types: switch control, absolute dimming control, curtain control, alarm control, percentage control, sequence control, scene control, string (14 byte) control, threshold control and logical combination control
- External messages can alter the validity of logic
- Support KNX Data Secure
Χαρακτηριστικά
- Rated voltage
- 30V DC
- Rated current
- 50mA/30V DC
- Input Voltage
- 21 - 30V DC
- Dry contact
- 2 dry contacts
- Communication protocol
- KNX
- Cable diameter of KNX terminal
- 0.6 - 0.8mm
- Detection frequency for micro motion
- 24GHz-24.25GHz
- Detection range for micro motion (radius)
- 0.5-4m, adjustable (Note: Installation height is 3m.)
- Detection range for illuminance
- 0-1200Lux
- Detection range for temperature
- -20°C-60C°
- Working Temperature
- -5℃-45℃
- Working relative humidity
- ≤90%RH, non-condensed
- Storage Temperature
- -20℃-60℃
- Storage relative humidity
- ≤93%RH
- Dimensions of installation for surface-mounted
- Φ66 x 34.6mm (Opening size: Φ60mm)
- Dimensions of installation for flush-mounted
- Φ48.5 x 27.5mm
- Installation height (recommended)
- 2.5-3.5m
