Hdl Automation

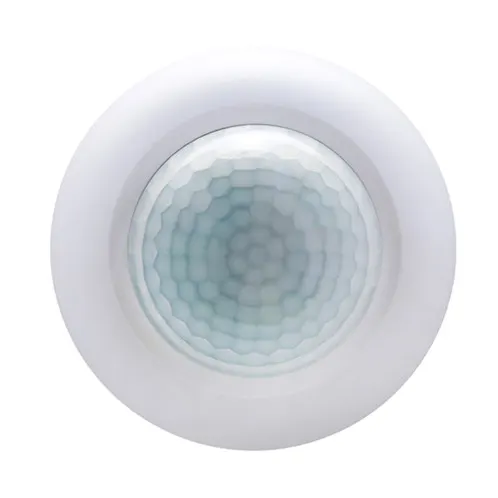

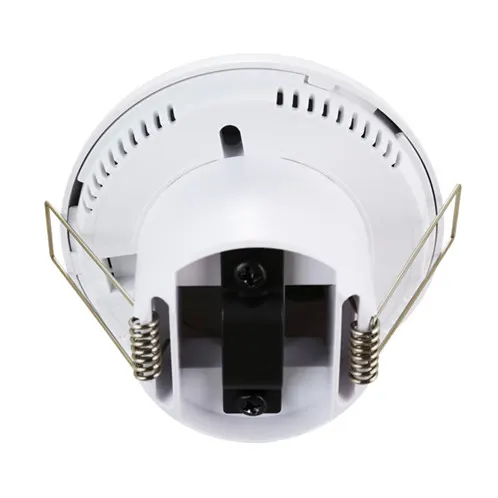

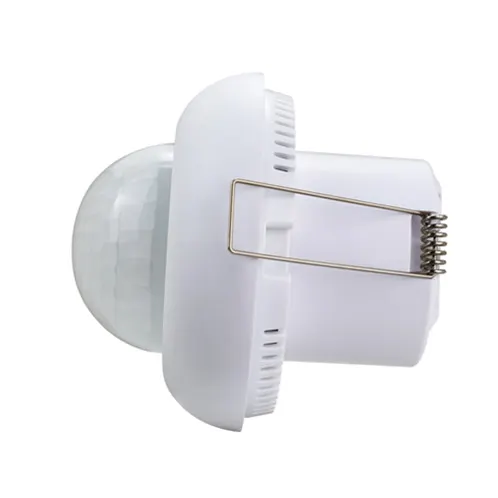

HDL Sensor PIR & Lux Reccess Mount M/IS05.1
Κωδικός παραγγελίας: 22327EAN: 06972372986753
- Working Voltage:21~30V DC
- Working Current:5mA/30V DC
- Communication:KNX
- Cable diameter of:KNX terminal 0.6 - 0.8mm
- PIR Detection Range:Φ8m (Installation height: 3m)
- Όλα τα χαρακτηριστικά
96,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- Includes Motion sensor, LUX sensor and External Telegram Detection
- Motion detection range H:3m D:9m
- With 2CH lighting control, 4 levels of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking
- With 2CH constant brightness control, 4 pre-set dimming values are supported and forced dimming can be set
- The sensor has 5 logic blocks and each block contains 10 object outputs. Dry contact, telegram locking/unlocking and delay time can be set. Sending on/off telegram can be set when locking and unlocking
- Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control, Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control
- Logic inputs: PIR sensor status, brightness value, temperature and external telegrams
- 2 logical relations: AND, OR 2 working modes: Single mode and master/slave mode
- The logic validity can be set by external telegram
Χαρακτηριστικά
- Working Voltage
- 21~30V DC
- Working Current
- 5mA/30V DC
- Communication
- KNX
- Cable diameter of
- KNX terminal 0.6 - 0.8mm
- PIR Detection Range
- Φ8m (Installation height: 3m)
- Working Temperature
- -5℃~45℃
- Working relative humidity
- ≤90%
- Storage Temperature
- -20℃~60℃
- Storage relative humidity
- ≤93%
- Dimensions
- Φ63×46.6 (mm)
- Net Weight
- 43g
- Housing Material
- ABS, PC, iron
