Lenkeng HDMI Matrix over IP 1080p KIT 2x4 (LKV383Matrix-2TX/4RX)
Κωδικός παραγγελίας: 28621
- Max Resolution:4K@30Hz (4096×2160, 3840×2160)
- HDMI Compliance:HDMI 2.0, HDCP 1.4/2.2
- Max Bandwidth:18Gbps (supports HDR, 4:4:4 chroma at lower resolutions)
- Audio Output:LPCM 2.0 (stereo, no mention of surround sound)
- Transmission Medium:CAT5e (up to 100m) / CAT6 (up to 120m)
- Όλα τα χαρακτηριστικά
429,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή

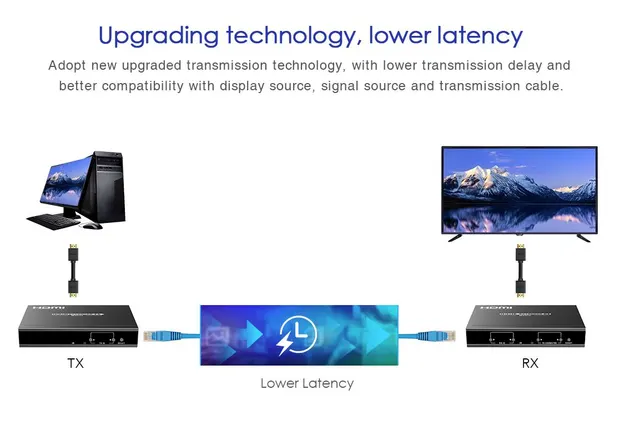

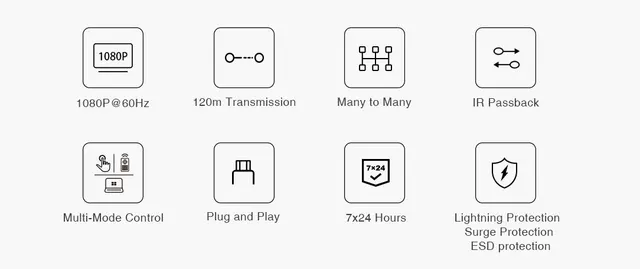

- Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
- Supports up to 3840 x 2160@60Hz resolution, backwards compatible.
- Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.

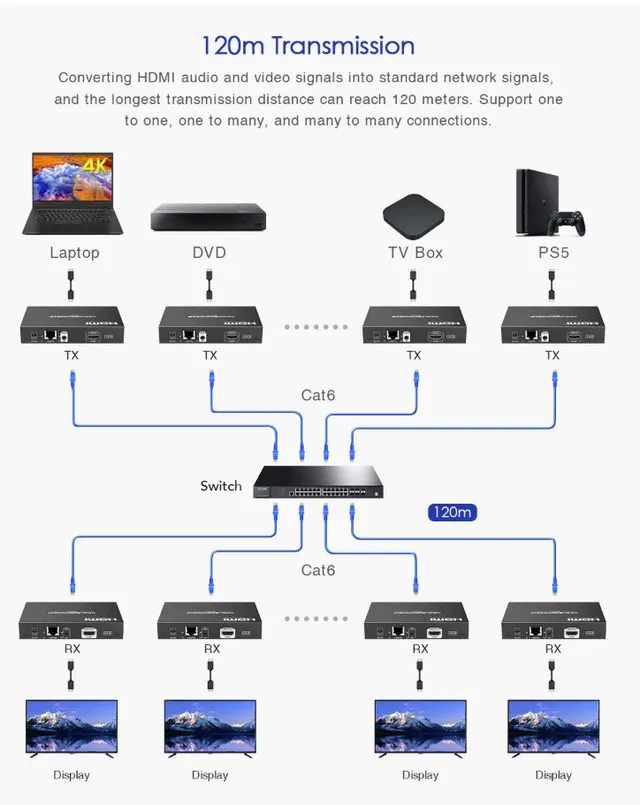

- Supports one-to-one or many-to-many connections through the gigabit switch.
- Supports IR pass-back(20～60KHz)
- Creating multi-screen splicing with up to 5x5 video wall through switch and controlled by APP.
- Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration (Require APP control operation while connecting more than 100 TX-to-RXs).
- Firmware upgrading via Micro USB port.
- Lightning protection, surge protection, ESD protection.
- Supports stable 24/7 operation.
Χαρακτηριστικά
- Max Resolution
- 4K@30Hz (4096×2160, 3840×2160)
- HDMI Compliance
- HDMI 2.0, HDCP 1.4/2.2
- Max Bandwidth
- 18Gbps (supports HDR, 4:4:4 chroma at lower resolutions)
- Audio Output
- LPCM 2.0 (stereo, no mention of surround sound)
- Transmission Medium
- CAT5e (up to 100m) / CAT6 (up to 120m)
- Latency
- 4K@60Hz: 130–200ms
- 1080p@60Hz
- 70–130ms (Note: Higher latency typical in IP-based systems)
- HDMI Cable Limitation
- ≤5m (for source-to-transmitter or receiver-to-display)
- Modes Supported
- One-to-one (single TX to RX)
- Protocol
- Uncompressed HDMI over IP (proprietary or standard UDP-based)
- IR Range
- ≤5m (line-of-sight)
- IR Frequency
- 20kHz–60kHz (compatible with most HDMI device remotes)
- Power Supply
- DC 5V/2A (USB-C or barrel connector likely)
- Power Consumption
- Transmitter (TX): ≤5.5W
- Receiver (RX)
- ≤3.5W
- Operating Temp.
- -20°C to 60°C
- Humidity Tolerance
- 0–90% RH (non-condensing)
- Housing
- Iron (metal casing for EMI shielding)
- Weight
- TX (503g), RX (500g)
- Dimensions
- 191×96×25mm (compact, rack-mountable?)
- ESD Protection
- ±4kV (contact discharge)
- Lightning/Surge Protection
- Basic network-level protection
