Lenkeng HDMI Matrix over IP 4K POE, APP, VideoWall, MultiView 2x4 (iMCS-IM02-2TX/4RX)
Κωδικός παραγγελίας: 28622
- Max HDMI Cable Length (Direct Connection):≤5m (standard limitation)
- Extended Transmission via CAT5e/CAT6:CAT5: Up to 80m
- CAT5e:Up to 100m
- CAT6:Up to 120m
- Max HDMI Bandwidth:18Gbps (HDMI 2.0)
- Όλα τα χαρακτηριστικά
1.099,00 €με ΦΠΑ
Μη διαθέσιμο
Περιγραφή
- Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
- Supports up to 3840 x 2160@60Hz resolution, backwards compatible.
- Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.

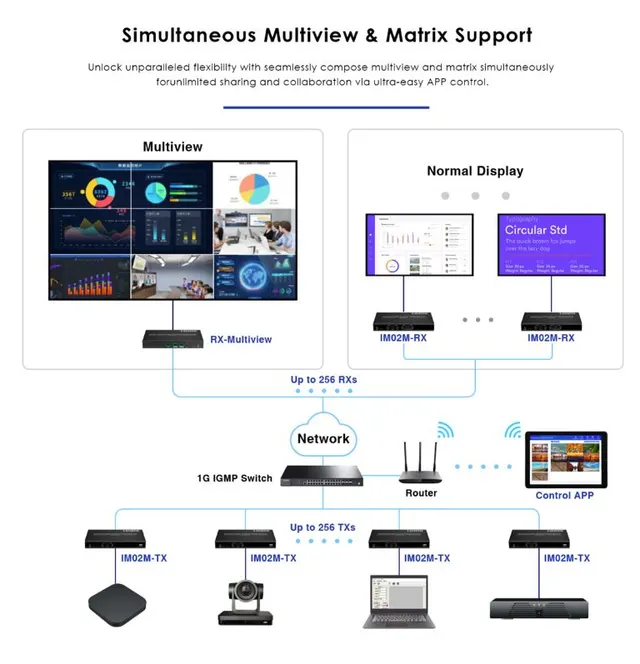

- Supports one-to-one or many-to-many connections through the gigabit switch.
- Supports RS-232 passthrough and control.

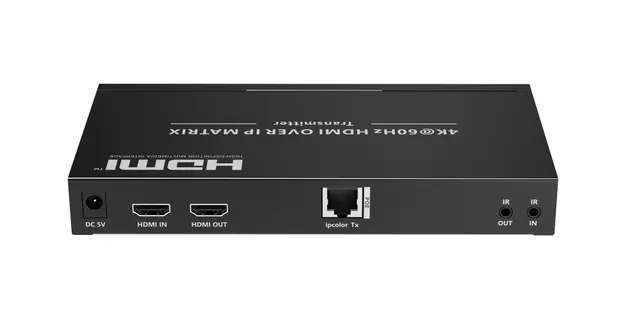

- The transmitter supports HDMI loop out.
- Supports bi-directional IR pass-back(20～60KHz);

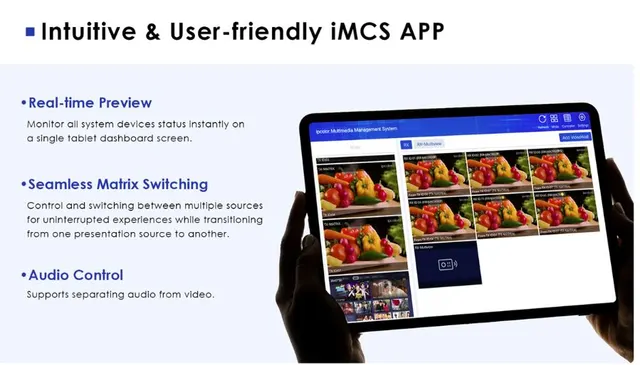

- Supports IR learning remote and control device by APP.
- Supports I/O interface control.
- Supports POE(Power over Ethernet).
- Creating multi-screen splicing video wall through switch and controlled by APP.
- Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration.
Χαρακτηριστικά
- Max HDMI Cable Length (Direct Connection)
- ≤5m (standard limitation)
- Extended Transmission via CAT5e/CAT6
- CAT5: Up to 80m
- CAT5e
- Up to 100m
- CAT6
- Up to 120m
- Max HDMI Bandwidth
- 18Gbps (HDMI 2.0)
- Supported Resolutions
- 4K@60Hz (3840×2160)
- HDCP Support
- HDCP 1.4 & 2.2 (for DRM-protected content like Netflix, Blu-ray)
- 4K@60Hz
- 130~200ms (high delay, not ideal for gaming)
- 1080p@60Hz
- 70~130ms (better, but still laggy for fast-paced games)
- HDMI Audio Output
- LPCM 2.0 (Stereo only, no Dolby/DTS surround)
- IR Receiving Range
- ≤5m
- IR Frequency
- 20kHz~60kHz
- Default Baud Rate
- 115200
- Supported Rates
- 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Input Power
- DC 5V/2A (for both TX & RX)
- Power Consumption
- TX (Transmitter): ≤5.5W
- RX (Receiver)
- ≤3.5W
- Housing Material
- Iron (durable but heavy)
- Weight
- TX: 523g
- RX
- 514g
- Dimensions
- 191.0(L) × 96.0(W) × 25.0(H) mm
- Operating Temperature
- -20°C ~ 60°C
- Storage Temperature
- -30°C ~ 70°C
- Humidity Tolerance
- 0~90% RH (non-condensing)
- ESD Protection
- Contact discharge: ±4KV (IEC61000-4-2 Level 2)
- Air discharge
- ±8KV (IEC61000-4-2 Level 3)
