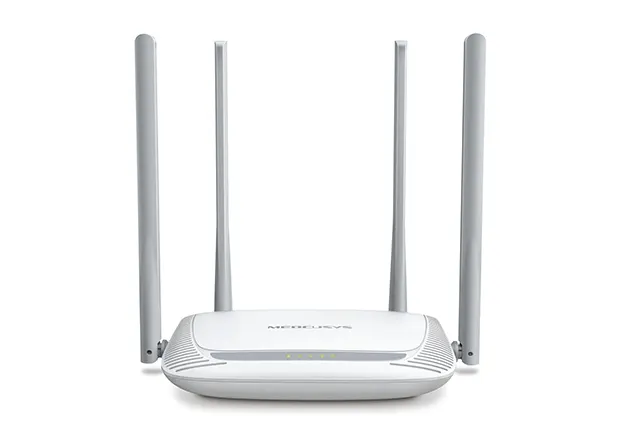

Mercusys MW325R v3 Wireless Router Wi‑Fi

Mercusys MW325R v3 Wireless Router Wi‑Fi

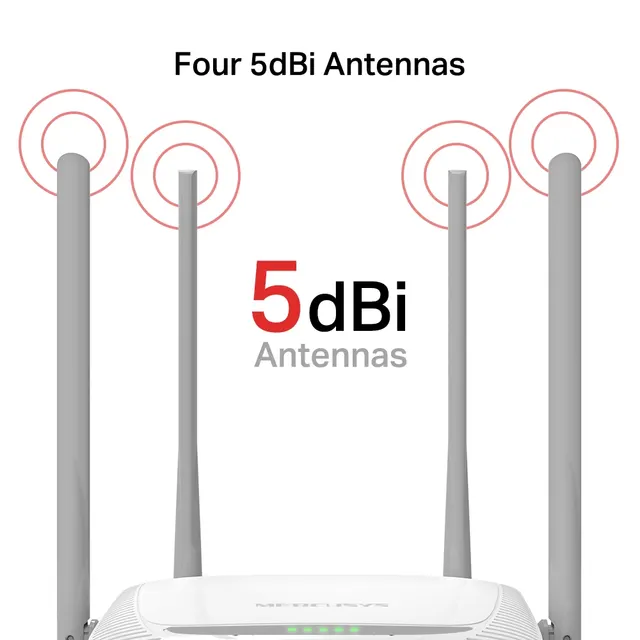

• Great Coverage – four 5dBi antennas provide wide wireless coverage
• Enhanced Signal – high gain antennas dramatically increase wireless signal strength, size and stability
• 300Mbps Wireless Speed - ideal for HD streaming, online gaming, and large file downloads
• Easy Installation - intuitive webpage guides you through the setup process in minutes

Wireless

Wi-Fi Class



N300



Wi-Fi (2.4 GHz)



300Mbps



Wireless Standards



802.11b/g/n



Reception Sensitivity



270M: -70dBm@10% PER
130M: -72dBm@10% PER
54M: -74dBm@10% PER
11M: -87dBm@10% PER
6M: -92dBm@10% PER
1M: -94dBm@10% PER



Wireless Security



WPA/WPA2



Wireless Functions



Guest Network
Wireless Schedule
WPS
AP Isolation

Hardware

Dimensions



167 × 118 × 33 mm

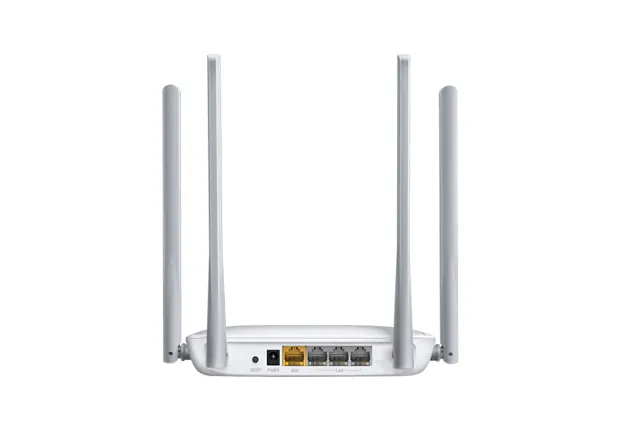

Interfaces



1× 10/100 Mbps WAN
3× 10/100 Mbps LAN



Antenna



4× External Antennas



Button



1× Reset Button



Power Supply



Input：100~240V, 50/60Hz
Output: 5V/0.6A(EU), 9V0.6A(ME)



Retail Package Weight



530g



Installation



Desktop
Wall-mount



LED



Power
WAN
LAN



Retail Package Dimension



312 × 66× 246mm



Units per Carton



20



Carton Dimension



645 × 510 × 355mm



Product Weight



190g

Software

Operation Mode

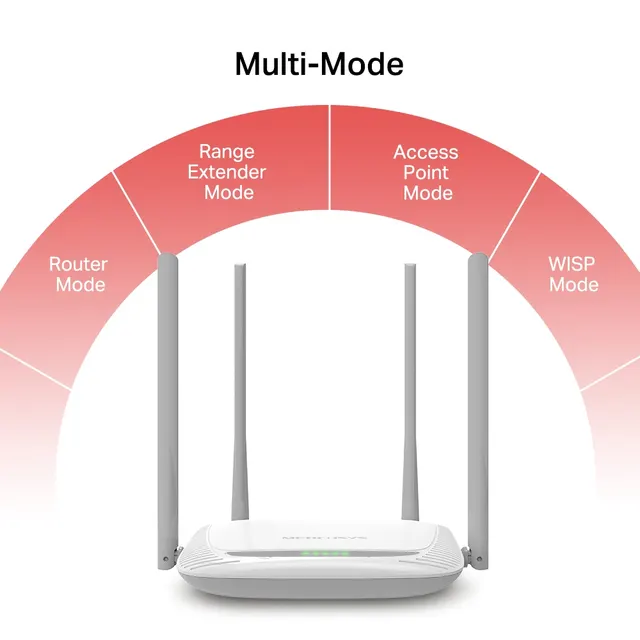

Router/AP/RE/WISP Mode



WAN Mode



Dynamic IP
Static IP
PPPoE
PPTP
L2TP



NAT Forwarding



Port Forwarding
Port Triggering
DMZ
UPnP



Protocols



IPv4
IPv6



IPTV



IGMP Proxy
IGMP Snooping
Bridge/Custom
Tag VLAN



Guest Network



2.4G Guest Network



Parental Controls



Profile Settings
Time Control
Pause the Internet
Website Filtering



DHCP



Address Reservation
DHCP Client List
Server



DDNS



NO-IP
DynDNS



QoS



Time Settings
Priority Control



Security



SPI Firewall
Access Control
IP & MAC Binding



ISP Feature



ISP Preset(Agile Config)



System



Firmware Upgrade
Backup and Restore
Administration
System Log
Time & Language Settings
Reboot



Diagnostics



Ping
Traceroute



LED Management



LED Control
Night Mode



Device Management



MERCUSYS APP
Webpage

Others

Network Services Enabled by Default



Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP

DNS
DNS
• Port: 53   Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP

App management
Manage and configure device through app
• Port: 20002   Protocol: UDP



Package Contents



• N300 Wi-Fi 4 Router MW325R
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable



Environment



• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
