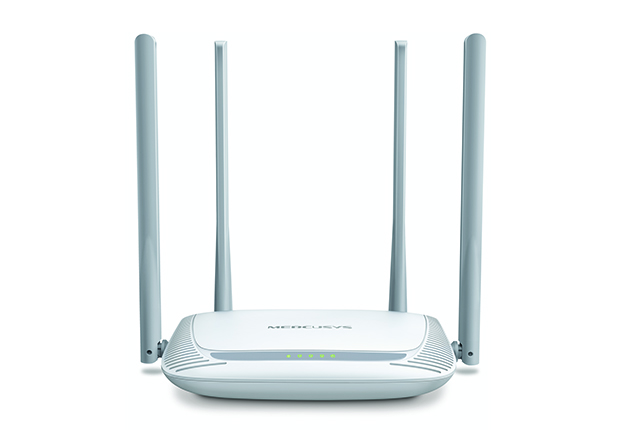

Mercusys MW325R v3 Wireless Router Wi‑Fi
- Great Coverage – four 5dBi antennas provide wide wireless coverage
- Enhanced Signal – high gain antennas dramatically increase wireless signal strength, size and stability
- 300Mbps Wireless Speed - ideal for HD streaming, online gaming, and large file downloads
- Easy Installation - intuitive webpage guides you through the setup process in minutes
- Wireless
- Wi-Fi Class
- N300
- Wi-Fi (2.4 GHz)
- 300Mbps
- Wireless Standards
- 802.11b/g/n
- Reception Sensitivity
- 270M: -70dBm@10% PER130M: -72dBm@10% PER54M: -74dBm@10% PER11M: -87dBm@10% PER6M: -92dBm@10% PER1M: -94dBm@10% PER
- Wireless Security
- WPA/WPA2
- Wireless Functions
- Guest NetworkWireless ScheduleWPSAP Isolation
- Hardware
- Dimensions
- 167 × 118 × 33 mm
- Interfaces

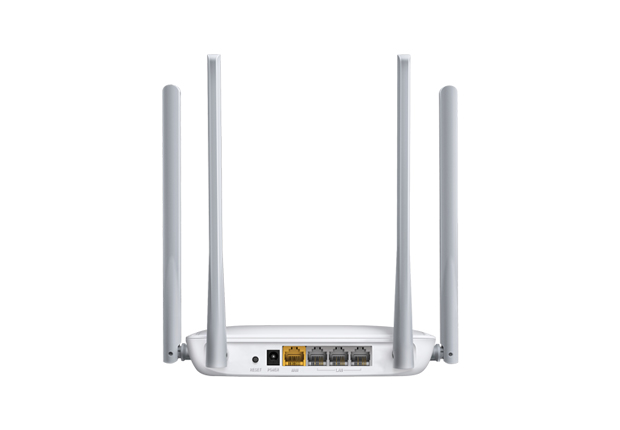

- 1× 10/100 Mbps WAN3× 10/100 Mbps LAN
- Antenna
- 4× External Antennas
- Button
- 1× Reset Button
- Power Supply
- Input：100~240V, 50/60HzOutput: 5V/0.6A(EU), 9V0.6A(ME)
- Retail Package Weight
- 530g
- Installation
- DesktopWall-mount
- LED
- PowerWANLAN
- Retail Package Dimension
- 312 × 66× 246mm
- Units per Carton
- 20
- Carton Dimension
- 645 × 510 × 355mm
- Product Weight
- 190g
- Software
- Operation Mode
- Router/AP/RE/WISP Mode
- WAN Mode
- Dynamic IPStatic IPPPPoEPPTPL2TP
- NAT Forwarding
- Port ForwardingPort TriggeringDMZUPnP
- Protocols
- IPv4IPv6
- IPTV
- IGMP ProxyIGMP SnoopingBridge/CustomTag VLAN
- Guest Network
- 2.4G Guest Network
- Parental Controls
- Profile SettingsTime ControlPause the InternetWebsite Filtering
- DHCP
- Address ReservationDHCP Client ListServer
- DDNS
- NO-IPDynDNS
- QoS
- Time SettingsPriority Control
- Security
- SPI FirewallAccess ControlIP & MAC Binding
- ISP Feature
- ISP Preset(Agile Config)
- System
- Firmware UpgradeBackup and RestoreAdministrationSystem LogTime & Language SettingsReboot
- Diagnostics
- PingTraceroute
- LED Management
- LED ControlNight Mode
- Device Management
- MERCUSYS APPWebpage
- Others
- Network Services Enabled by Default
- Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCPDNSDNS• Port: 53 Protocol: TCP & UDPDHCP ServerIP address assignment (DHCP)• Port: 67 Protocol: UDPApp managementManage and configure device through app• Port: 20002 Protocol: UDP
- Package Contents
- • N300 Wi-Fi 4 Router MW325R• Power Adapter• Quick Installation Guide• RJ45 Ethernet Cable
- Environment
- • Operating Temperature: 0°C~40°C (32°F~104°F)• Operating Humidity: 10%~90% Non-Condensing• Storage Humidity: 5%~90% Non-Condensing
