Sunsynk LifeLynk S All in One Hybrid Inverter & Integrated 2KWh Battery
Κωδικός παραγγελίας: 25729
- Max. PV Power:3000W
- Max. PV Input Voltage:500V
- MPPT Voltage Range:120-450V
- Start-up Voltage:150V
- Max. PV Current:12A (total current of the one MC4 set)
- Όλα τα χαρακτηριστικά
1.929,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή

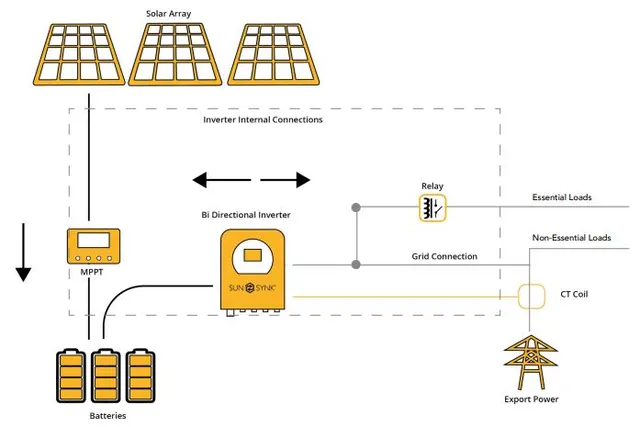

The Lifelynk S is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require
INTERACTIVE
- Easy and simple to understand LCD display
- Supporting Wi-Fi or GSM monitoring
- Built-in MPPT trackers
- Smart settable 3-stage MPPT charging for optimised battery performance
COMPATIBLE
- Compatible with main electrical grid voltages
- 230V single-phase, pure sine wave inverter
CONFIGURABLE
- Fully programmable controller
- Programmable supply priority for battery or grid
- Programmable multiple operation modes: on-grid / off-grid & UPS
- Configurable battery charging - current / voltage based on the application
SECURE
- Overload / over-temperature / short-circuit protection
- Smart battery charger design for optimized battery protection
- Limiting function installed to prevent excess power overflow to grid
APPLICATIONS
- Power shedding (home / office / factory)
- UPS (Uninterrupted Power Supply)
- Remote locations with solar
- Building sites
- Telecommunication
Χαρακτηριστικά
- Max. PV Power
- 3000W
- Max. PV Input Voltage
- 500V
- MPPT Voltage Range
- 120-450V
- Start-up Voltage
- 150V
- Max. PV Current
- 12A (total current of the one MC4 set)
- Maximum Input Power
- 2500W
- Nominal Input / Output Power
- 2500W
- Max. Input / Output Apparent Power
- 2500VA
- Nominal Voltage
- 230VAC
- Max. Input / Output Current
- 11A
- Max. Bypass Current
- 20A
- Nominal Frequency
- 50Hz
- Power Factor Range
- 0.8 Leading ~ 0.8 Lagging
- Nominal Output Power
- 2500W
- Nominal Output AC Voltage
- 230VAC (Configurable)
- Nominal Output AC Frequency
- 50Hz (Configurable)
- Output THD (Resistor load)
- <3%
- Battery Voltage Range
- 40V~58V
- Max. Charging Current / Discharging Current
- 42A/56A
- Battery Type
- LiFePO4
- Power of the Battery
- 2048Wh
- Number of Batteries
- 1 (Installed)
- Ingress Protection
- IP20
- Protective Class
- Class I
- Max. Efficiency
- 97.6%
- Max. Battery to Load Efficiency
- 94.0%
- Europe Efficiency
- 97.0%
- MPPT Efficiency
- 99.9%
- Inverter
- -25ºC ~ +60ºC
- Battery Charging
- 0ºC ~ +45ºC
- Battery Discharging
- -20ºC ~ +50
