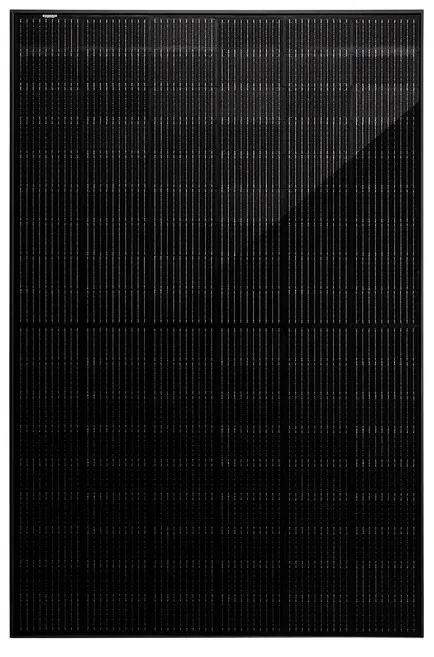

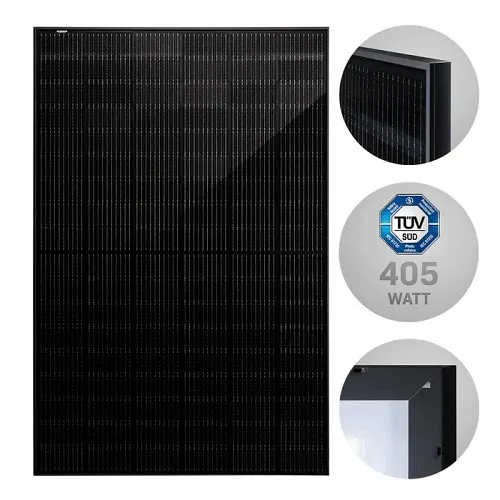

Ulica Solar Panel Rigid 405W Full Black (bulk)

Ulica Solar Panel Rigid 405W Full Black (bulk)

Important Note:

• These solar panels are for professional use only
• Panels are supplied in bulk without external packaging

Global Tier 1 brand as announced by Bloomberg NEF

Lower LCOE

• Lower shading and resistive loss
• Lower temperature coefficient

Outstanding mechanical load resistance

• 2400 Pa wind load , 5400 Pa snow load

Anti- PID (Potential Induced Degradation)

• Passed anti- PID test under 85% damp heat, 85% relative humidity for 96 hours

Great Durability against extreme conditions

• Passed salt mist corrosion test, ammonia corrosion test, dust and sand test, fire test, all certified by TUV

*12 year product warranty

**25 year linear power warranty

Module : UL-405-108HV

Electrical Performance

• Power output  (Pmax) : 405W
• Power Tolerance (ΔPmax) : 0/+5W
• Moduel Efficiency : 20.74%
• Voltage at Pmax (Vm) : 31.3V
• Current at Pmax (Im) : 12.94A
• Open-Circuit Voltage (Voc) : 37.3V
• Short-Circuit Current (Isc) : 13.69A

STC : 1000W/m2 irradiance, 25C module temperature

Thermal Characteristics

• Nominal Operating Temperature (NOCT) : 43±2°C
• Temperature Coefficient (Pmax) : -0.34 % / °C
• Temperature Coefficient (Voc) : -0.265 % / °C
• Temperature Coefficient (Isc) : 0.049 % / °C

Operating Conditions

• Max. System Voltage : 1500V
• Max. Series Fuse Rating : 25 A
• Operating Temperature -40°C ~ +85°C

Construction Material

• Front Cover (material/type/thickness) : Low-iron  tempered glass /3.2 mm
• Cell (quantity/material/type/dimension) : 108/Mono-crystalline 182 X 91mm
• Frame : Anodized aluminium alloy
• Junction Box : IP68
• Cable : 4 mm2
• Connector : MC4 compatible

General Characteristics

• Dimensions : 1762 ˣ 1130 ˣ 30 mm
• Weight : 21.2 kg
