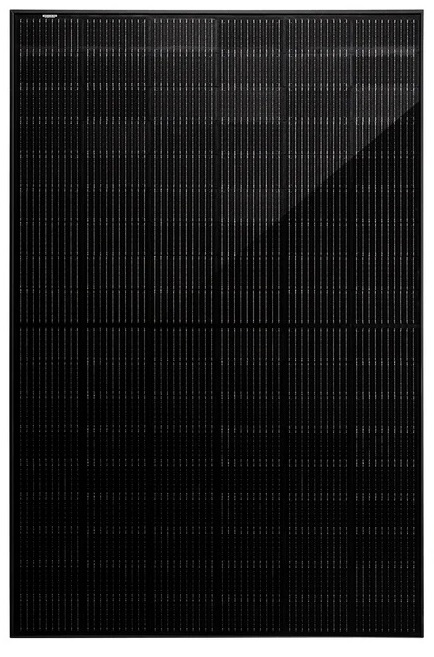

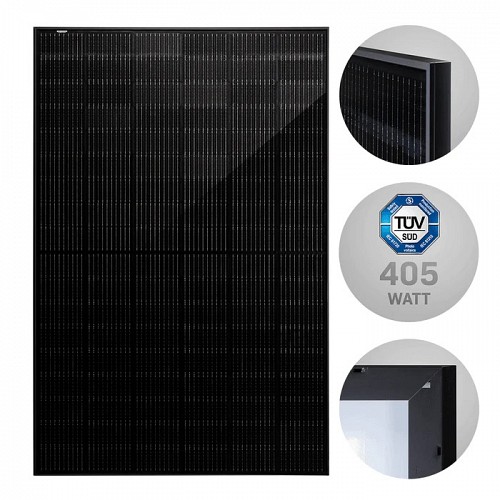

Ulica Solar Panel Rigid 405W Full Black (bulk)
Important Note:
- These solar panels are for professional use only
- Panels are supplied in bulk without external packaging
Global Tier 1 brand as announced by Bloomberg NEF
Lower LCOE
- Lower shading and resistive loss
- Lower temperature coefficient
Outstanding mechanical load resistance
- 2400 Pa wind load , 5400 Pa snow load
Anti- PID (Potential Induced Degradation)
- Passed anti- PID test under 85% damp heat, 85% relative humidity for 96 hours
Great Durability against extreme conditions
- Passed salt mist corrosion test, ammonia corrosion test, dust and sand test, fire test, all certified by TUV
*12 year product warranty
**25 year linear power warranty
Module : UL-405-108HV
Electrical Performance
- Power output (Pmax) : 405W
- Power Tolerance (ΔPmax) : 0/+5W
- Moduel Efficiency : 20.74%
- Voltage at Pmax (Vm) : 31.3V
- Current at Pmax (Im) : 12.94A
- Open-Circuit Voltage (Voc) : 37.3V
- Short-Circuit Current (Isc) : 13.69A
STC : 1000W/m2 irradiance, 25C module temperature
Thermal Characteristics
- Nominal Operating Temperature (NOCT) : 43±2°C
- Temperature Coefficient (Pmax) : -0.34 % / °C
- Temperature Coefficient (Voc) : -0.265 % / °C
- Temperature Coefficient (Isc) : 0.049 % / °C
Operating Conditions
- Max. System Voltage : 1500V
- Max. Series Fuse Rating : 25 A
- Operating Temperature -40°C ~ +85°C
Construction Material
- Front Cover (material/type/thickness) : Low-iron tempered glass /3.2 mm
- Cell (quantity/material/type/dimension) : 108/Mono-crystalline 182 X 91mm
- Frame : Anodized aluminium alloy
- Junction Box : IP68
- Cable : 4 mm2
- Connector : MC4 compatible
General Characteristics
- Dimensions : 1762 ˣ 1130 ˣ 30 mm
- Weight : 21.2 kg
