Adastra

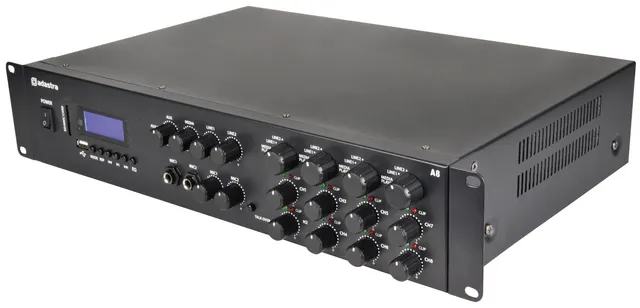

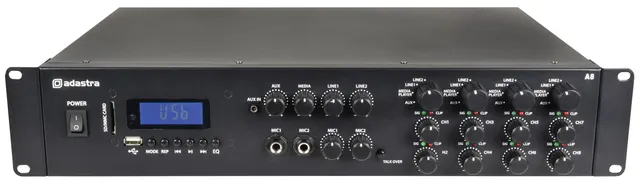

Adastra A8 4 x Independent Stereo Zones Amplfier 8x200W USB/BT/FM 953.408UK
Order code: 20542EAN: 5015972214855
- Power Supply:230Vac, 50Hz (IEC)
- Fuse:F5A, 250V
- Amplifier:construction: Class D
- Frequency response:20Hz - 20kHz ±0.5dB
- Microphone inputs:2 x 6.3mm jack (mono)
- All specifications
€399.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description

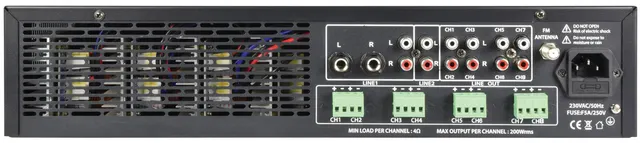

Multi-zone amplifier with 2 microphone inputs and a switchable stereo input for each zone. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a B/T wireless receiver and FM radio tuner. A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to all output zones at all times. Speakers are connected from the rear panel Euroblock terminals to deliver up to 200W per output at 4 Ohms. Designed for installations requiring high quality stereo sound in multiple rooms or listening areas.
- Four independent stereo outputs
- Media player with USB/SD playback
- FM radio tuner with external aerial connection
- B/T wireless receiver
The box for this item contains :
- M-series multi-stereo amplifier
- I.R. remote control (media player)
- IEC power lead(s)
Specifications
- Power Supply
- 230Vac, 50Hz (IEC)
- Fuse
- F5A, 250V
- Amplifier
- construction: Class D
- Frequency response
- 20Hz - 20kHz ±0.5dB
- Microphone inputs
- 2 x 6.3mm jack (mono)
- Line inputs
- Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
- Input sensitivity
- aux: 0.480Vrms
- Auxiliary input
- 3.5mm stereo jack
- Input impedance
- 20k Ohms (balanced), 10k Ohms (unbalanced)
- Audio source
- USB/SD mp3 playback, FM tuner, B/T receiver
- B/T wireless version
- 2.3

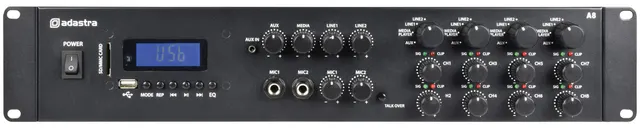

- Input controls
- Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
- Antenna connection
- F type (FM tuner)
- Protection
- Thermal, over-current, over-voltage, short-circuit

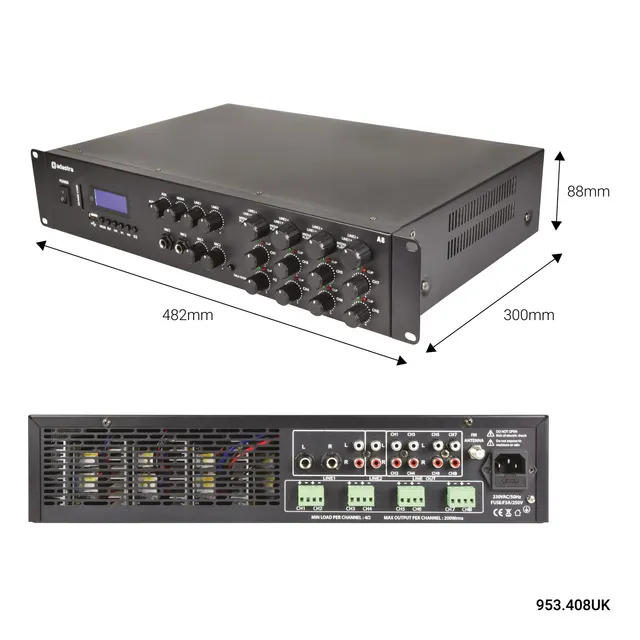

- Dimensions
- 482 x 300 x 88mm
- Line output
- 8 x RCA
- Output power rms @ 4 Ohms
- 8 x 200W
- Output power rms @ 8 Ohms
- 8 x 100W
- Speaker outputs
- 4 x 4-terminal Euroblock

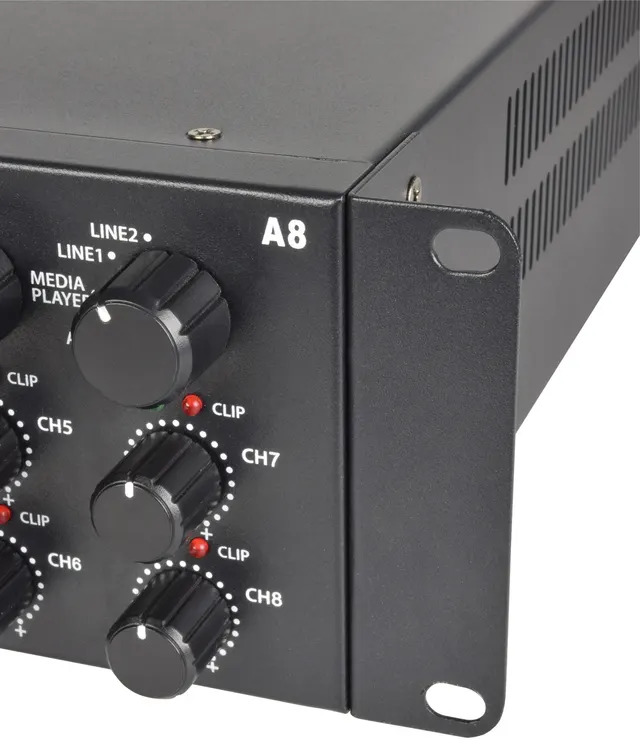

- Output controls
- 4 x source select, Ch1 - Ch8 level
- Weight
- 8.96kg
