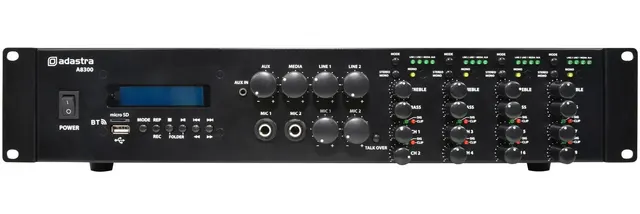

Adastra A8300 8x300W Rack Mount Amplifier BT/USB/FM 953.483UK

Order code: 28997EAN: 5015972238356
  • Output power @ 8 Ohms:4 x 2 x 150Wrms
  • Output power @ 4 Ohms:4 x 2 x 300Wrms
  • Weight:11.556kg
  • Power Supply:230Vac, 50Hz (IEC)
  • Amplifier:construction: Class D
  • All specifications
€459.00incl. VAT
Ships in 2-4 working days

Free pickup from our shop

Description

A-series mixer-amplifiers with switchable stereo or dual mono speaker outputs. Each speaker output has a stereo input source that can be selected between the internal audio player or three external stereo line inputs and even a digital optical input for AV applications. The inbuilt media player section offers playback of mp3 audio tracks from USB drive or microSD card and also has a B/T wireless receiver and FM radio tuner. Each speaker output zone has a wide ranging power capability from background music up to higher sound pressure levels, with Bass, Treble and Master Volume controls for independent sound management. Two microphone inputs have individual level controls and can be set to override the stereo line input for voice announcements. Emergency muting can be actuated from an alarm panel via the 24V EMG MUTE contacts on the rear panel. The A-series commercial amplifiers offer sophisticated functionality and power in a convenient 2U rack package with a comprehensive and accessible control surface. Each variant of this range is appointed to meet the needs of different sized installations with flexible setup options to serve various system topologies.

  • 2-band EQ per output zone
  • Internal audio player with USB/microSD playback
  • S/PDIF optical input
  • Bluetooth connectivity
  • Each stereo output zone can be summed as dual mono
  • Voice override for mic inputs
  • FM radio tuner with external aerial connection
  • 24V emergency mute contacts

Specifications

Output power @ 8 Ohms
4 x 2 x 150Wrms
Output power @ 4 Ohms
4 x 2 x 300Wrms
Weight
11.556kg
Power Supply
230Vac, 50Hz (IEC)
Amplifier
construction: Class D
Frequency response
20Hz - 20kHz ±0.5dB
Microphone inputs
2 x 6.3mm jack (mono) front or rear panel
Line inputs
Line 1 (L+R RCA), Line 2 (L+R RCA)
Digital audio input
TOSLink optical (S/PDIF)
Input sensitivity
aux: 0.480Vrms
Auxiliary input
3.5mm stereo jack
Input impedance
10k Ohms
Audio source
USB/microSD mp3 playback, FM tuner, B/T receiver
Input controls
Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
Output controls
Mode, Stereo/Mono, Treble, Bass, Channel Volumes
Antenna connection
F type (FM tuner)
Dynamic Range
92dB
THD +N
<0.1%
Protection
Thermal, over-current, over-voltage, short-circuit
Emergency control
24V mute terminals
Dimensions
482 x 300 x 88mm
