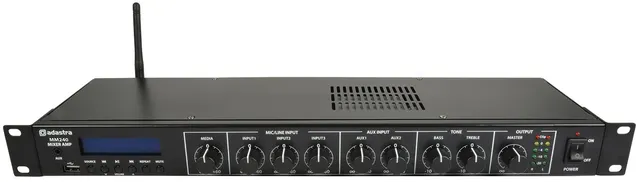

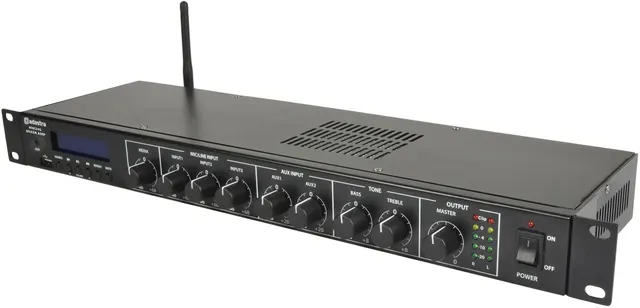

Adastra MM240 Rackmount Amplifier 2x120W@4ohms USB/BT/FM 953.030UK

Order code: 25686EAN: 5015972228968

Power Supply:100-240Vac, 50/60Hz (IEC)
Fuse:T3.15A
Output power:4 Ohms: 2 x 120Wrms
Inputs:aux: 2 x L+R RCA
Input:line: 3.5mm jack to media player
All specifications

€219.00€299.00incl. VAT

You save €80.00 (27%)

Ships in 2-4 working days

Free pickup from our shop

Description

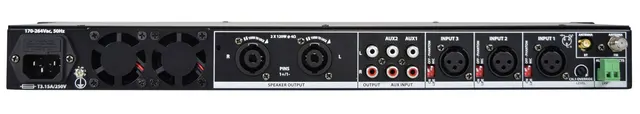

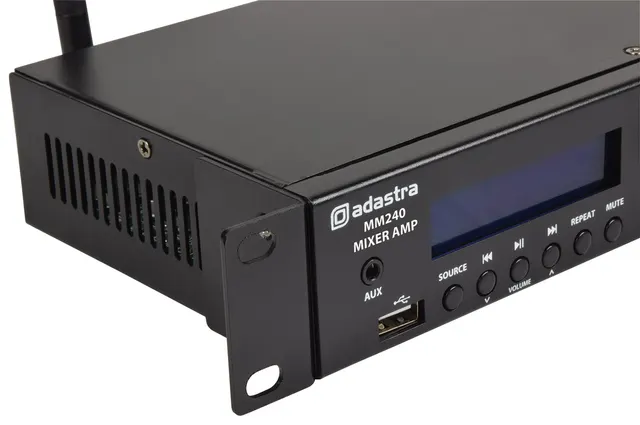

Compact 1U mixer-amp featuring a built-in media player with DAB+ and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo line output. Media player operating modes include 3.5mm Aux input, USB audio player, DAB+/FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right speaker outputs are connected using standard Speakon leads. Connect 2 or 4 speakers for a complete music and voice installation or mobile PA system for functions, conferences and fitness classes.

DAB+/FM radio tuner
Bluetooth receiver with unique serial ID
USB audio player
Switchable +20V phantom power
Variable priority muting for channel 1
24V emergency mute contacts

Specifications

Power Supply: 100-240Vac, 50/60Hz (IEC)
Fuse: T3.15A
Output power: 4 Ohms: 2 x 120Wrms
Inputs: aux: 2 x L+R RCA
Input: line: 3.5mm jack to media player
Audio source: DAB+/FM tuner, USB player, Bluetooth receiver
Line output: L+R RCA
Speaker outputs: L+R SPK connector
Emergency control: 24V contacts mute all except channel 1
Phantom Power: +20V (switchable channels 1-3)
Bluetooth Version: 5.0
Controls: Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
Rear panel controls: Priority muting level, mic/line and phantom DIP switches
Input impedance: 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response: aux: 10Hz - 23kHz
Input sensitivity: aux/line : 10dBV
Signal to noise ratio: aux/line: 60dB
Dimensions: 482 x 123 x 44mm
Weight: 1.96kg
