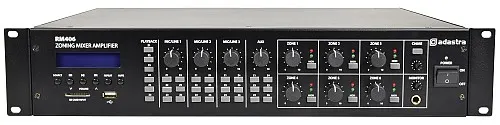

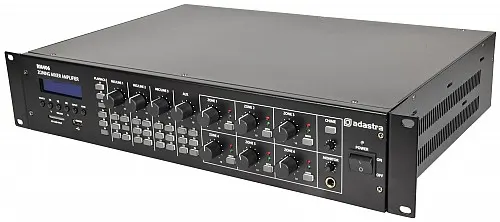

Adastra RM406 Mixer-Amp 100V 6x40W 953.160UK

Adastra RM406 Mixer-Amp 100V 6x40W 953.160UK

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.

• Integral USB/SD/FM audio player
• Internal Bluetooth receiver
• 100V or 4/8 Ohms operation
• 6 independent output zones
• 3 mic/line and 1 auxiliary input
• Mic priority and chime functions
• Switchable +20V phantom power
• 24V mute contacts
• Monitor headphones output

• Power supply 170-264Vac, 50Hz (IEC)
• Power output 6 x 40W rms
• Amplifier : construction Class D + transformer outputs
• Audio source USB/SD/FM/BT audio player
• Inputs 3 x mic/line (XLR/jack), auxiliary 2 x RCA
• Zone outputs: line 6 x RCA (mono)
• Zone outputs: speaker 6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com
• Phantom power +20V switchable to each XLR
• Monitor outputs 6.3mm stereo phones, 2 x RCA line
• Mute +24V relay contacts
• THD <0.76% @ 1kHz
• Input impedance 1k Ohms (mic/line)
• Input sensitivity -11dB (line), -46dB (mic)
• SNR 84dB (line), 82dB (mic)
• Bluetooth version 2.0
• Frequency response 100Hz - 24kHz
• Dimensions 433 x 89 x 302mm
• Weight 11kg
