Adastra
Adastra RX45 Advanced Audio Matrix 4in 5out 953.046UK
Order code: 25845EAN: 5015972231906
- Amplifier Type:Matrix Amp
- Zones:5
- Zone Control:Wall Plate
- USB / FM / BT:Yes
- Rack Mountable:Yes
€519.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description

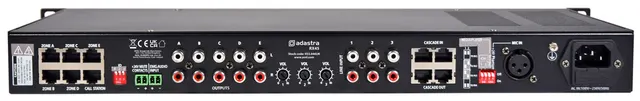

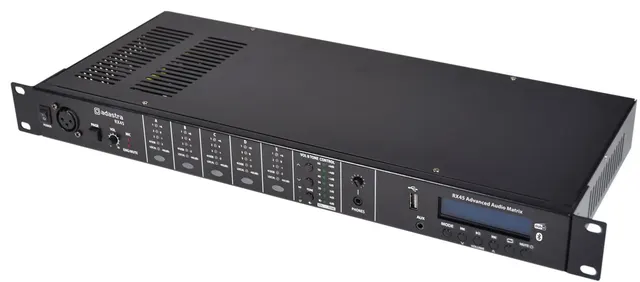

- RX45 is a 1U rack-mountable audio matrix feeding 4 selectable inputs to 5 stereo outputs

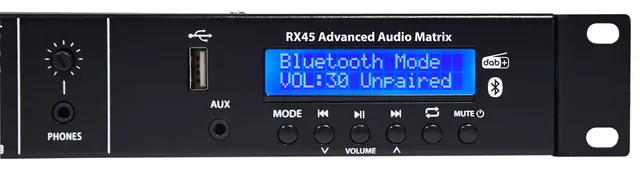

- An inbuilt audio player section features playback from USB media, DAB+ tuner or Bluetooth
- Each zone output has a push button and LED ladder on the front panel for selecting the input source and adjusting level and tone settings in the master section
- Connecting optional TR86 wall plates via CAT5 cable enables remote source and level selection for any zone
- The output for the selected zone may be monitored through a headphones output on the front panel
- The RX45 system is expandable using multiple RX45 units cascaded together via dual CAT5 links, with DIP switches to assign one of 8 different IDs to each connected RX45 unit, providing up to 40 distinct zones
- Additional DIP switches can be set to link the audio player from one unit to one or more connected slaves
- An optional CS-20 call station can be used to address up to 20 different zones for announcements
Specifications
- Amplifier Type
- Matrix Amp
- Zones
- 5
- Zone Control
- Wall Plate
- USB / FM / BT
- Yes
- Rack Mountable
- Yes
