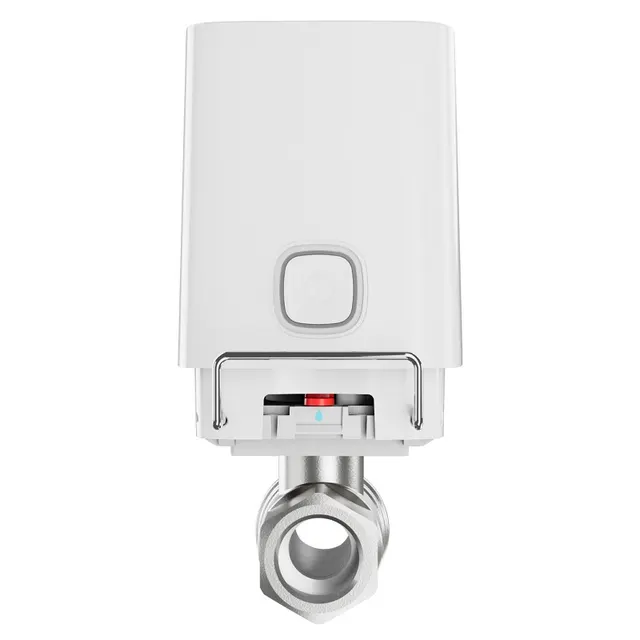

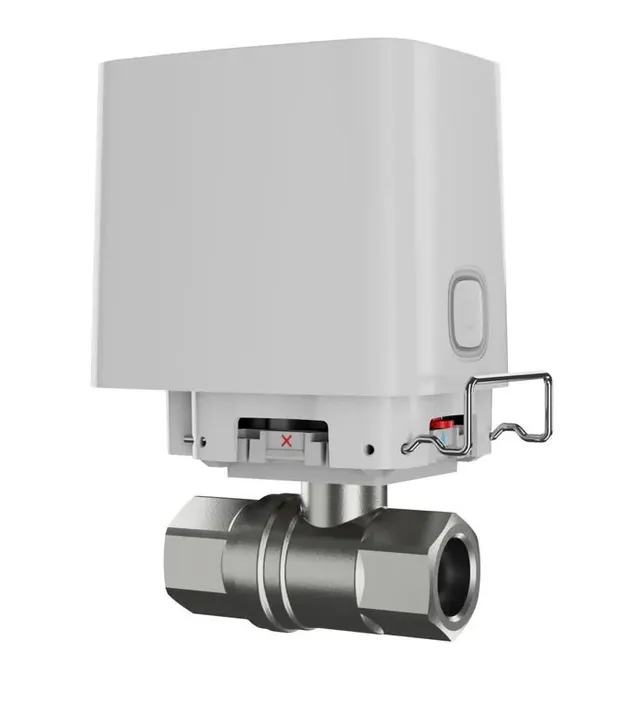

AJAX Automation WaterStop Valve 1"

Specifications

Hubs

Hub Plus / Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G)

Radio signal range extenders

ReX / ReX 2

Radio frequency bands

866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2  MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz

Maximum effective radiated power (ERP)

up to 20 mW (Automatic power adjustment to reduce power consumption and the effect of radio interference)

Radio signal modulation

GFSK

Radio communication range

up to 1,100 m (Between device and hub or radio signal range extender without obstacles)

Frequency Hopping

Prevents radio interference and jamming

Shutoff valve

1" (DN 25), Bonomi Industries shutoff valve included in complete set

Electric actuator

90 × 41 mm 1" (DN 25) shutoff valve

Mounting platform

to mount an electric actuator on a shutoff valve

Mounting lockers

To fix an electric actuator on a shutoff valve.

The complete set includes two options

: standard (pre-installed) / anti-sabotage

Fields of application

water supply and heating systems

Operating fluid

hot and cold water, non-aggressive liquids

Material

brass

Connection type and thread

F/F threaded

Thread size

: 1" (DN 25, 25 mm)

Operating liquids' temperature range

from +5°C to +120°C

Torque

up to 8.5 N•m

Operating pressure

up to 10 bars

Shut-off speed

up to 5 seconds (The value may increase if the valve is clogged or stuck)

Remote Control

control and configuration in Ajax apps

Apps provide all information about the device

current valve state (open/closed), statuses of battery charge, external power supply, and communication with a hub

Manual control

the control button on the electric actuator enclosure

Installation

does not require tools and enclosure disassembling

The design allows maintenance, and repair in hard-to-reach places

pipe tunnels, technical boxes, walls, etc. It is possible to replace the actuator unit without dismantling the shutoff valve.

LED indication

The LED placed under an Ajax logo on enclosure and reports the electric actuator states

Automation scenarios

alarm reactions / security mode change reactions / scheduled actions / temperature scenarios / humidity scenarios / CO2 level scenarios / by pressing Button / by pressing LightSwitch

Stuck prevention

the scheduled scenario automatically opens/closes a shutoff valve. Configured in Ajax apps. The recommended periodicity is once a week.

Overheating notification

The notification is sent to Ajax apps when the device temperature tops +60°C and when it returns to normal

Protection against spoofing

device authentication

Communication failure detection

in 36 (The time depends on the  Jeweller/Fibra settings)

Tampering alarm

Notifies about attempts to detach the enclosure from the mount

Pre-installed batteries

4 × CR123A battery (Up to 3 years of battery life)

Optional external power supply

7.5–14 V⎓, up to 1.8 A

Dimensions

104.5 × 159 × 70 mm 1" (DN 25) shutoff valve with an electric actuator

Operating temperature range

from 0°C to +60°C

Operating Humidity

up to 95%

Weight

800 g
