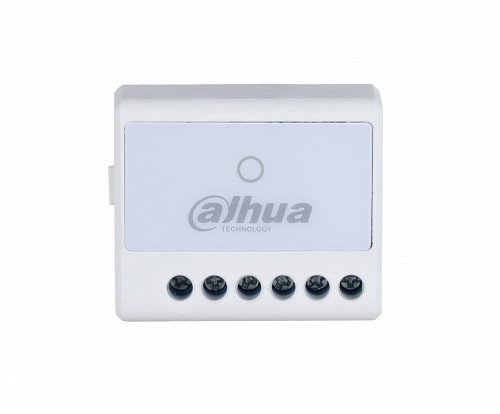

Dahua Alarm Wireless Automation Relay ARM7011-W2(868)
- Frequency hopping and two-way communication technology ensure that communication is stable
- Supports jamming detection and communication encryption
- Supports cloud update and automatically restores when cloud update fails
- Overheating protection
- Voltage detection
- 1 channel external tamper input
Port
- Alarm Input : 1 for tamper, NO/NC
- Relay Output : 1, NO/NC (0–36 VDC, Max 5A)
Function
- Indicator Light : 1 for multiple statuses (pairing, communication)
- Button : 1
- Remote Update : Cloud update
Technical
- Test Mode : Yes
Wireless
- Carrier Frequency : 868.0 MHz–868.6 MHz
- Communication Mechanism : Two-way
- Communication Distance : 1200 m in open areas
- Encryption Mode : AES128
- Frequency Hopping : Yes
General
- Power Supply : 7–24 VDC
- Operating Temperature : –10 °C to +55 °C (indoor)
- Operating Humidity : 10%–90% (RH)
- Storage Temperature : –10 °C to +55 °C
- Storage Humidity : 10%–90% (RH)
- Product Dimensions : 39 mm × 33 mm × 19 mm
- Packaging Dimensions : 95 mm × 59.5 mm × 30.5 mm
- Net Weight : 45 g
- Gross Weight : 60 g
- Installation : Wall mount
- Casing Material : PC + ABS
- Certifications : CE
