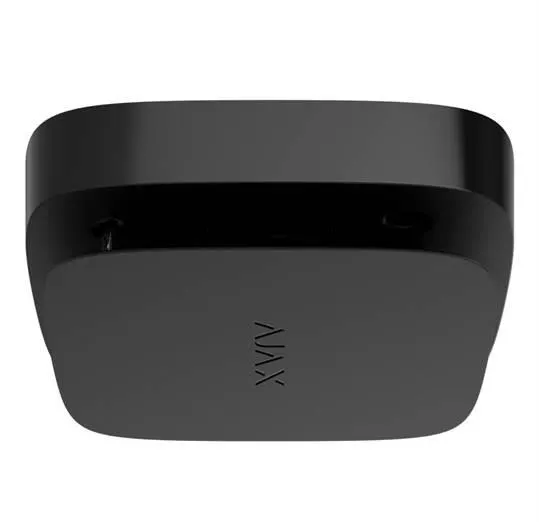

AJAX BASELINE Sensor FireProtect 2 RB Black (Heat/Smoke)

Specifications

Jeweller communication technology

Proprietary wireless technology for transmission of alarms and events Features : Two-way communication / Protection against device spoofing / Block encryption featuring a floating key / Instant notifications

Maximum effective radiated power (ERP)

up to 20 mW / Automatic power control to reduce power consumption and radio interference

Radio signal modulation

GFSK

Radio communication range

up to 1,700 m / Between the detector and a hub (or radio signal range extender) in an open space

Encryption of radio communication

All the data stored and transmitted are protected by block encryption with a floating key

Radio frequency hopping

To prevent radio interference and jamming.

Sensitive elements

smoke sensor / temperature sensor

Sensitive element

double-spectrum optical sensor / Recognizes smoke by the size of particles in the air.

Protection from false alarms

Does not react to water vapour

High temperature alarm

at temperatures above 64°C

Temperature spike alarm

when the temperature rises more than 10°C in 1 minute or less

In-built siren

volume 85 dB at a distance of 3 meters / Sound notification of alarms. Active until the reason for triggering is eliminated or until the user disables notification

Interconnected Fire Detectors Alarms

All fire detectors in the system turn on built-in sirens if at least one of the detectors registers an alarm. An interconnected fire alarm is activated during one “hub — detector” polling interval but no more than 20 seconds later.

LED indication

green is a power indication. A LED indicator on the device enclosure lights up once every 56 seconds. The indication meets the requirements of EN 50291. yellow is an indication of malfunctions. A LED indicator on the device enclosure lights up when malfunctions are detected. For example, in the case

Button on the front panel of the detector

In normal mode, when pressed, it starts the smoke chamber test. In the event of an alarm or malfunction, the pressing turns off the detector sound notification

Protection against spoofing

device authentication

Detection of communication failure

within 15 minutes / The time to detect communication loss depends on the settings for the number of undelivered data packages (specified in the Jeweller or Jeweller/Fibra settings). The polling interval is fixed at 300 seconds

FireProtect 2 RB (Heat/Smoke)

2 × CR123A battery

Dimensions

123,7 × 123,7 × 44,7 mm

Weight

272,5 g

Operating temperature range

from 0°C to +50°C

Operating humidity

up to 80%

Protection class

IP20
