AJAX FIBRA Hub Hybrid 2G White (Requires License)

Order code: 23975

Ajax devices:up to 100 Wired and wireless devices in any proportion / 5 range extenders max /10 sirens max
Cameras or DVRs:up to 25 / RTSP support / Seamless integration with the Dahua, Hikvision, Safire, EZVIZ, Uniview IP cameras and DVRs
Users:up to 50 / Any number of admin users within the limit / PRO accounts for installers and monitoring companies / Access management for regular users
Automation scenarios:up to 32 / Alarm reactions / Scheduled actions / Security mode changing reactions
Security groups:up to 9
All specifications

€618.00incl. VAT

Out of stock

Description

** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact [email protected] for more information on how to obtain the certification license

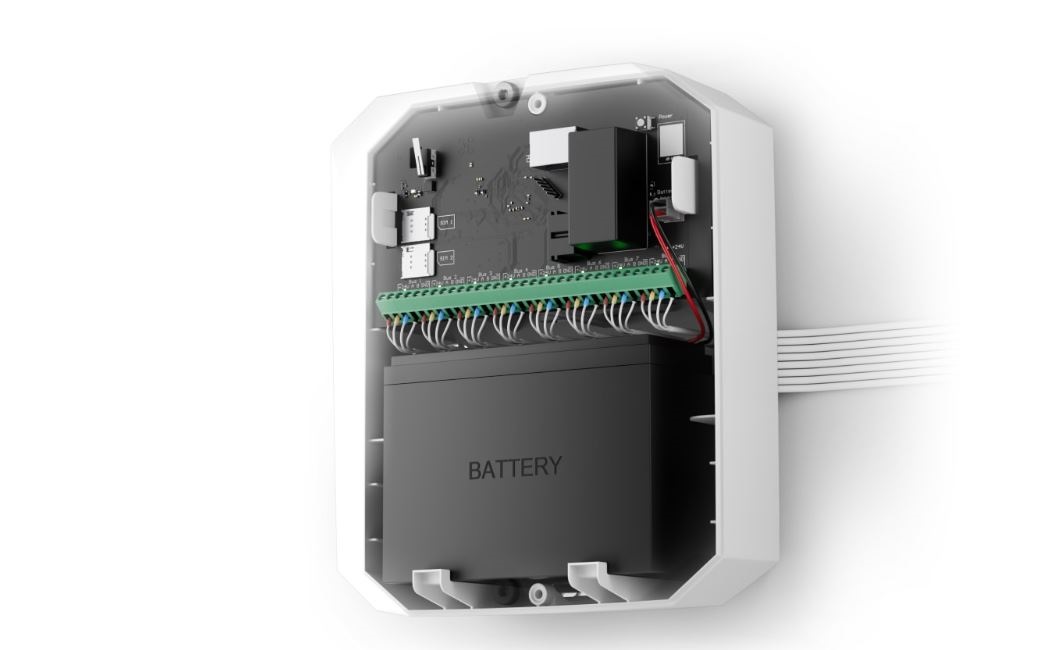

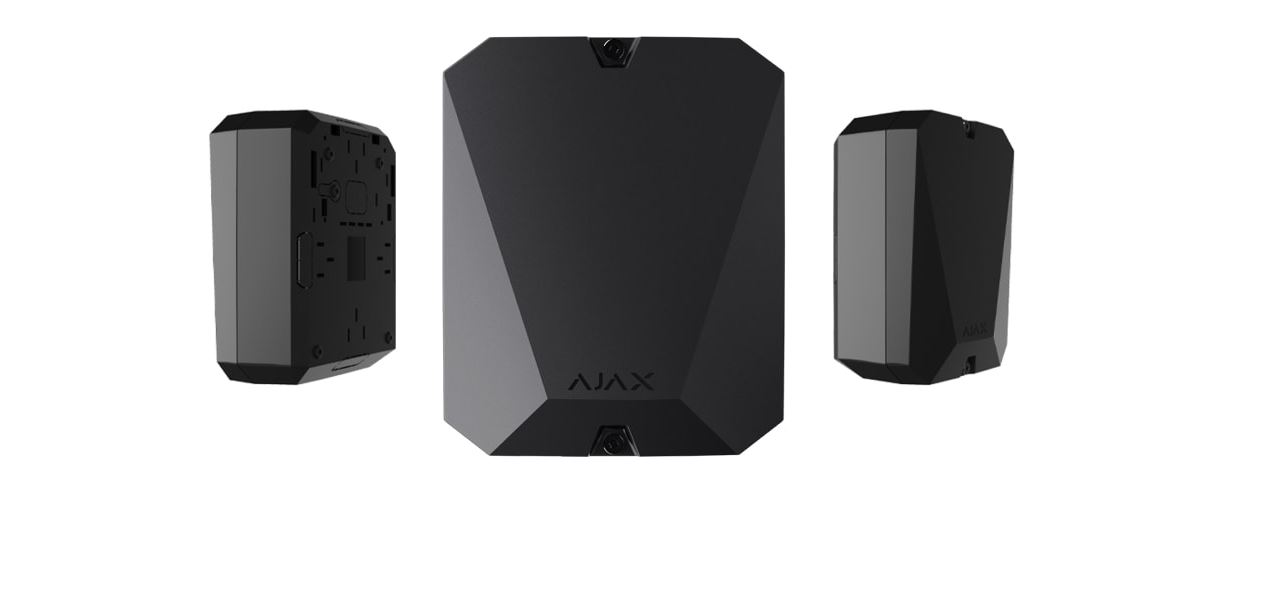

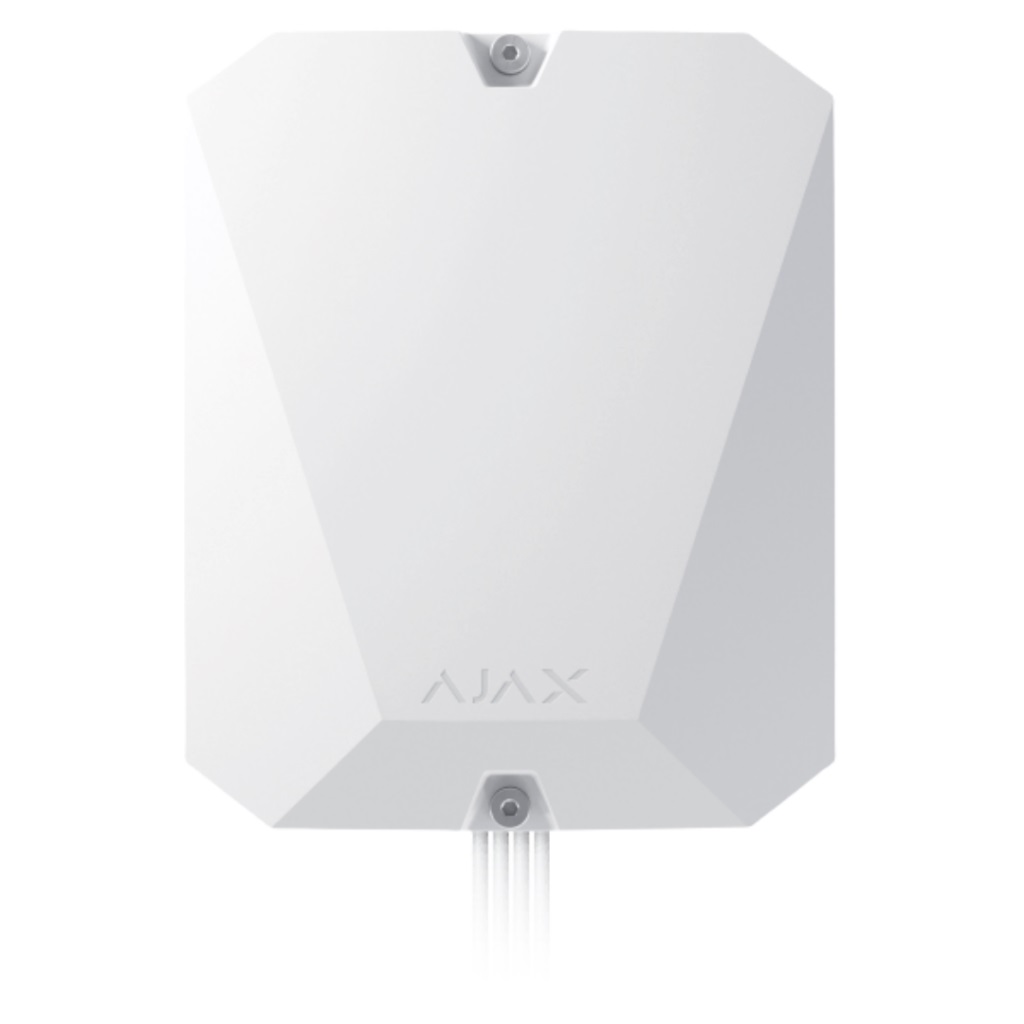

Hub Hybrid is a hybrid control panel of the Ajax security system. Compatible with wired and wireless Ajax devices. Controls the operation of connected devices, interacts with the user and the security company. Intended for indoor installation
Hub Hybrid needs Internet access to connect to the Ajax Cloud service. Available communication channels: Ethernet and two SIM cards. The hub is available in two versions: with 2G and 2G/3G/4G (LTE) modem
You can connect up to 100 wired and wireless Ajax devices to Hub Hybrid. Connected devices protect against intrusion, fire, and flooding, and also allow you to control electrical appliances according to scenarios or manually

Specifications

Ajax devices: up to 100 Wired and wireless devices in any proportion / 5 range extenders max /10 sirens max
Cameras or DVRs: up to 25 / RTSP support / Seamless integration with the Dahua, Hikvision, Safire, EZVIZ, Uniview IP cameras and DVRs
Users: up to 50 / Any number of admin users within the limit / PRO accounts for installers and monitoring companies / Access management for regular users
Automation scenarios: up to 32 / Alarm reactions / Scheduled actions / Security mode changing reactions
Security groups: up to 9
Rooms: up to 50

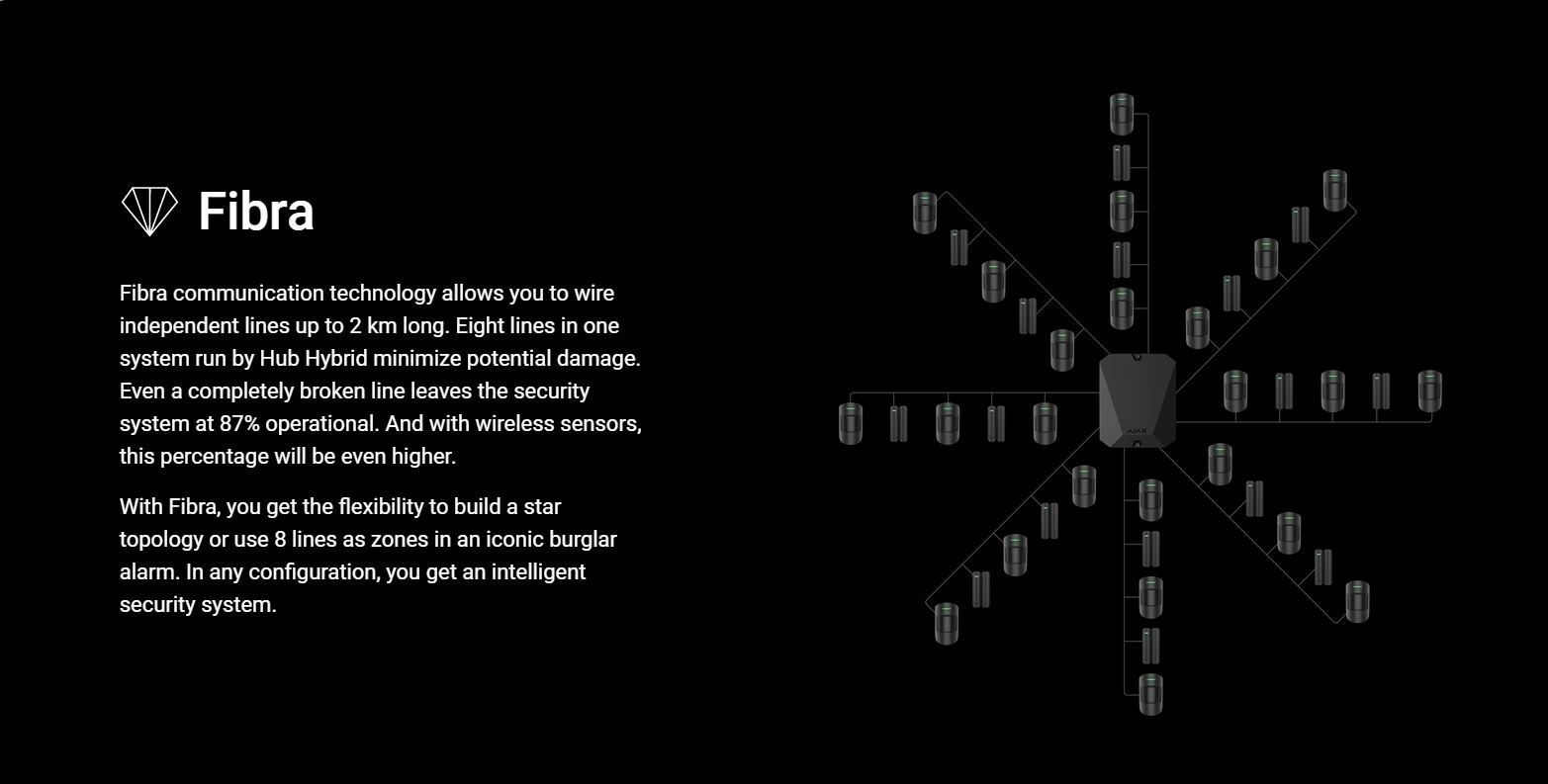

Fibra communication technology: Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the Ajax apps
Compatible wire: 4–core cable / Bus connection

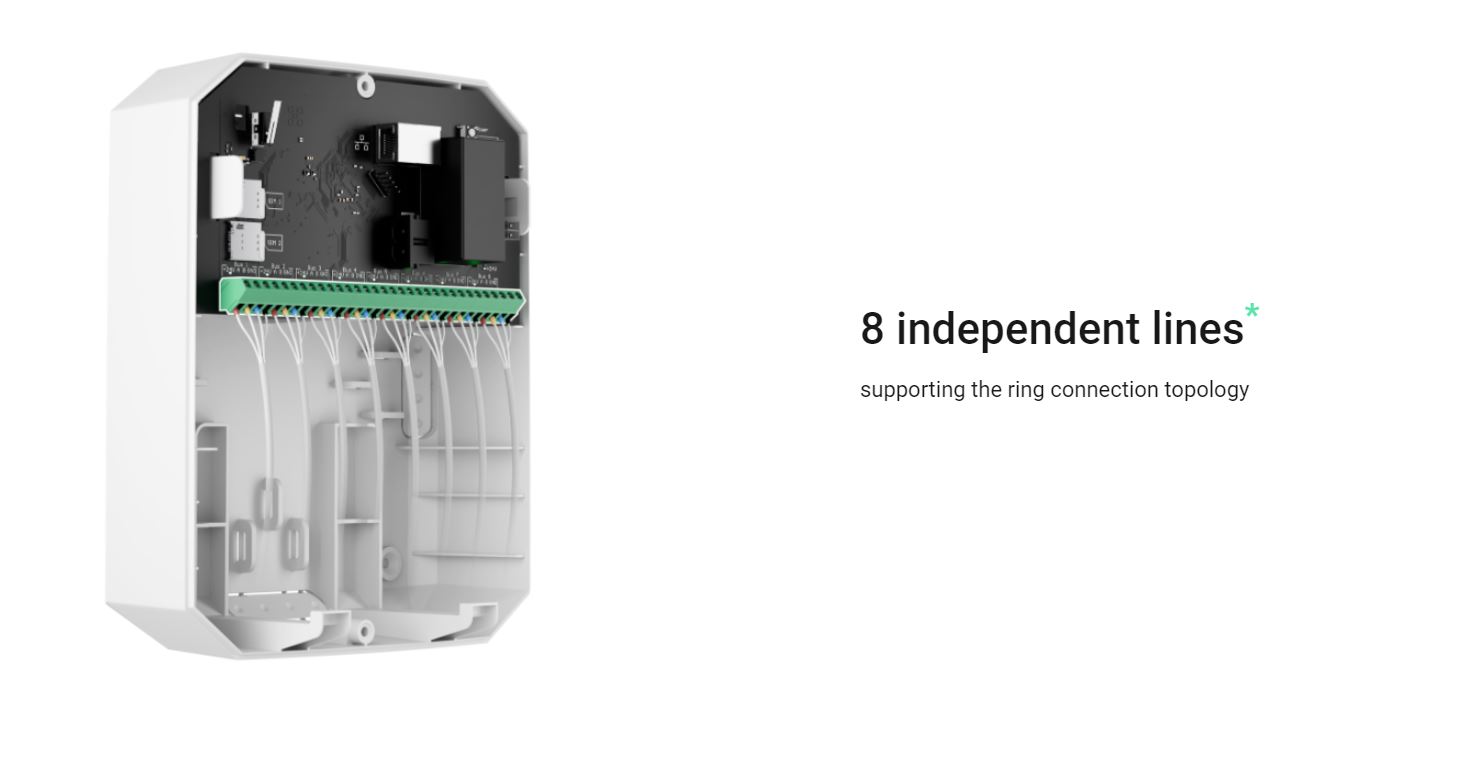

Input: 8 bus lines (Compatible with Fibra devices only)
Bus line length: up to 2,000 m when using the U/UTP cat.5 twisted pair

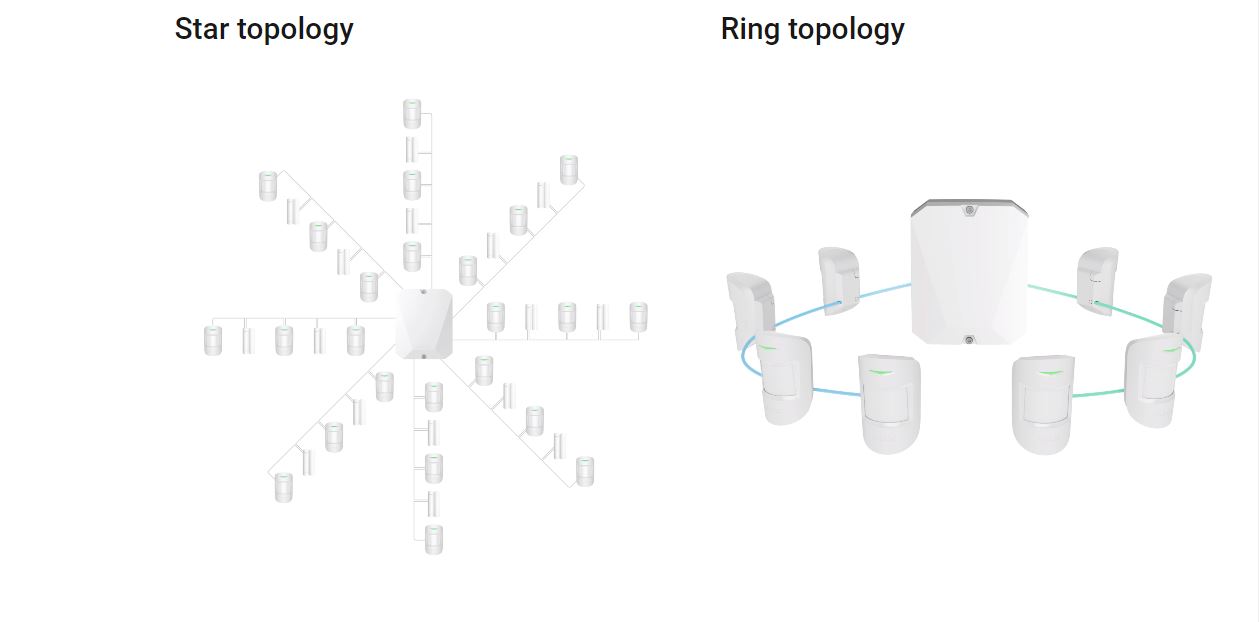

Topologies: Star / Ring (coming soon)
Devices polling interval: from 12 to 300 s (Adjusted by PRO or user with admin rights in the Ajax app)

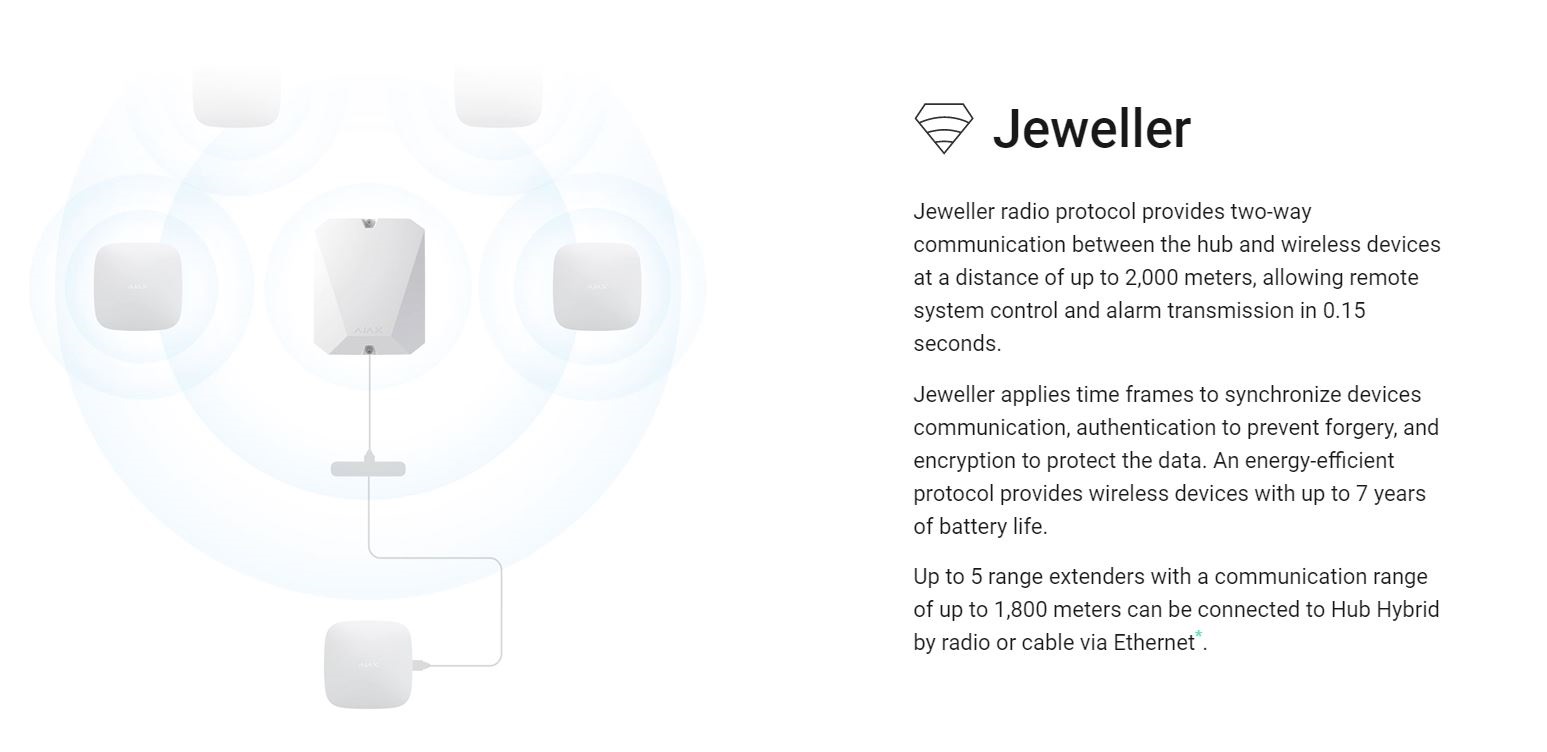

Frequency Bands: 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz
Maximum effective radiated power (ERP): up to 20 mW
Radio signal modulation: GFSK
Radio signal range: up to 1,700 m between the hub and connected devices (in an open space)
Polling interval: from 12 to 300 s (Adjusted by PRO or user with admin rights in the Ajax app)
Encrypted communication: All the data stored and transmitted are protected by block encryption with a dynamic key
Ethernet: 1 × 8P8C socket / Up to 100 Mbps
Cellular: 2 × mini–SIM slot
Cellular bands: Hub Hybrid (2G) / 2G (GSM900/DCS1800 (B3/B8))
Automatic switching between communication channels: Switching between SIMs — up to 4 minutes / Switching between Ethernet and SIM — instantly
Communication channels prioritization: 1. Ethernet / 2. Cellular connection
Supported notification types: Push / SMS / Calls
Event types: System alarms and events / Photo verifications / Panic button coordinates
Supported Protocols: SurGard (Contact ID) / SIA (DC-09) / Other proprietary protocols
Main: 110–240 V~, 50/60 Hz / Up to 10 W of mains power consumption
Backup: 12 V⎓ battery (not included) batteries with a capacity of 4 Ah and 7 Ah
Autonomous operation: up to 60 hours
Dimensions: 192 × 238 × 100 mm
Weight: 852 g
Operating temperature range: from −10°C to +40°C
Operating Humidity: up to 75%
Body protection class: IP50
