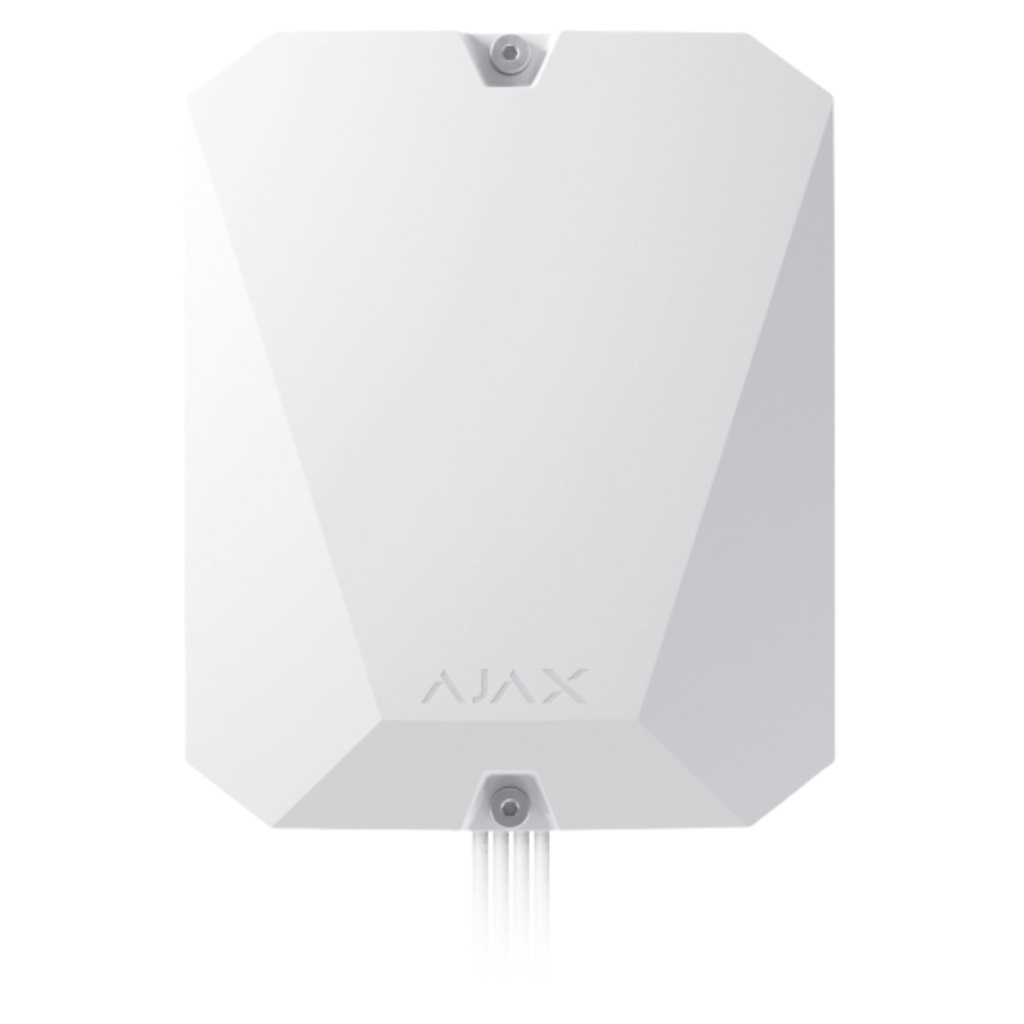

AJAX FIBRA Hub Hybrid 4G White (Requires License)

Order code: 24848

Ajax devices:up to 100 Wired and wireless devices in any proportion / 5 range extenders max /10 sirens max
Cameras or DVRs:up to 25 / RTSP support / Seamless integration with the Dahua, Hikvision, Safire, EZVIZ, Uniview IP cameras and DVRs
Users:up to 50 / Any number of admin users within the limit / PRO accounts for installers and monitoring companies / Access management for regular users
Automation scenarios:up to 32 / Alarm reactions / Scheduled actions / Security mode changing reactions
Security groups:up to 9
All specifications

€865.00incl. VAT

Out of stock

Description

** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact [email protected] for more information on how to obtain the certification license
Hub Hybrid is a game-changer among professional security systems. It is the first Ajax control panel supporting Jeweller devices and the all-new Fibra product line. Wired and wireless technologies are combined to build complex protection regardless of facility size, steel or concrete obstructions. Security is enhanced by informative notifications, photo verification of alarms, real-time system control in the app, and automation scenarios
Fibra communication technology allows you to wire independent lines up to 2 km long. Eight lines in one system run by Hub Hybrid minimize potential damage. Even a completely broken line leaves the security system at 87% operational. And with wireless sensors, this percentage will be even higher
With Fibra, you get the flexibility to build a star topology or use 8 lines as zones in an iconic burglar alarm. In any configuration, you get an intelligent security system

Specifications

Ajax devices: up to 100 Wired and wireless devices in any proportion / 5 range extenders max /10 sirens max
Cameras or DVRs: up to 25 / RTSP support / Seamless integration with the Dahua, Hikvision, Safire, EZVIZ, Uniview IP cameras and DVRs
Users: up to 50 / Any number of admin users within the limit / PRO accounts for installers and monitoring companies / Access management for regular users
Automation scenarios: up to 32 / Alarm reactions / Scheduled actions / Security mode changing reactions
Security groups: up to 9
Rooms: up to 50
Event log: up to 1000 events
Fibra communication technology: Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the Ajax apps
Compatible wire: 4–core cable / Bus connection
Input: 8 bus lines (Compatible with Fibra devices only)
Bus line length: up to 2,000 m when using the U/UTP cat.5 twisted pair
Topologies: Star / Ring (coming soon)
Devices polling interval: from 12 to 300 s (Adjusted by PRO or user with admin rights in the Ajax app)
Frequency Bands: 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz
Maximum effective radiated power (ERP): up to 20 mW
Radio signal modulation: GFSK
Radio signal range: up to 1,700 m between the hub and connected devices (in an open space)
Polling interval: from 12 to 300 s (Adjusted by PRO or user with admin rights in the Ajax app)
Encrypted communication: All the data stored and transmitted are protected by block encryption with a dynamic key
Ethernet: 1 × 8P8C socket / Up to 100 Mbps
Cellular: 2 × micro–SIM slot
Cellular bands: 2G (GSM900/DCS1800 (B3/B8)) / 3G (WCDMA 850/900/2100 (B1/B5/B8)) / 4G/LTE (FDD B1/B3/B5/B7/B8/B20)
Automatic switching between communication channels: Switching between SIMs — up to 4 minutes / Switching between Ethernet and SIM — instantly
Communication channels prioritization: 1. Ethernet / 2. Cellular connection
Information security: I2
Supported notification types: Push / SMS / Calls
Event types: System alarms and events / Photo verifications / Panic button coordinates
Supported Protocols: SurGard (Contact ID) / SIA (DC-09) / Other proprietary protocols
Main power supply type: Type A
Device operating AC voltage range: 110–240 V~, 50/60 Hz / From the main power supply. Up to 10 W of mains power consumption
Device operating DC voltage range: 10.5–15 V⎓ / From the backup battery (not included). Hub has space in the enclosure and rails for installing batteries with a capacity of 4 Ah and 7 Ah
Autonomous operation: up to 60 hours / Hub Hybrid with a 7 Ah backup battery can power a system of 30 wired devices for 60 hours. Wireless devices operate on batteries and do not require additional power supply
Low Battery Voltage: 11.7 V⎓
Low battery recovery voltage: 12.6 V⎓
End of life battery voltage: 10.5 V⎓ / Hub Hybrid is switched off
Maximum output peak-to-peak ripple battery voltage: 220 mV⎓
Minimum backup battery energy level in the charged state: 100 %
Maximum rated output: 0.53 A
Maximum at nominal voltage: 200 mA
Quiescent at nominal voltage: 130 mA
Average: up to 93 mA / When GSM and Ethernet are enabled / up to 72 mA / When Ethernet is disabled / From the backup battery after the loss of the main power supply
Dimensions: 192 × 238 × 100 mm
Weight: 852 g
Operating temperature range: from −10°C to +40°C
Operating Humidity: Up to 75%
Protection class: IP30
