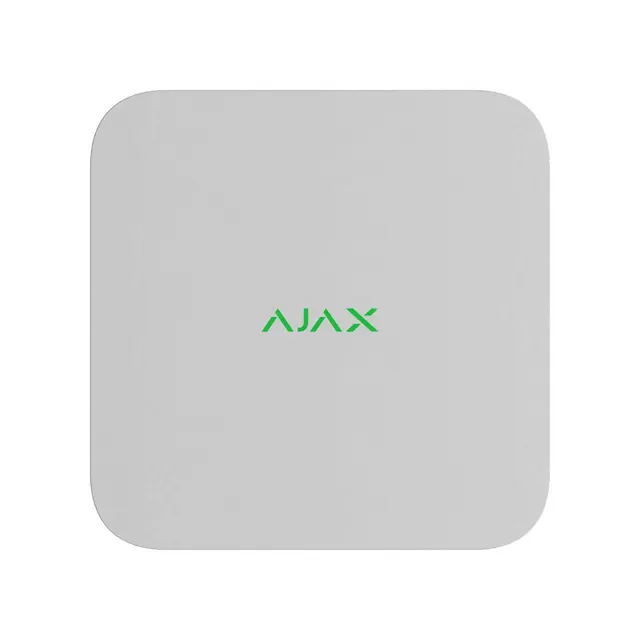

AJAX SURVEILLANCE NVR 8ch 100Mbps H.265/H.264

Specifications

8-channel

With up to 4K resolution (25/30 FPS).

IP cameras

ONVIF (Profile S/T) / RTSP

Storage

hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size) / HDD not included

Decoding formats

H.265 / H.264

Bandwidth

up to 100 Mbps

Ethernet

up to 100 Mbps

Bluetooth

BLE frequency band: 2.400–2.4835 GHz / To set up an Ethernet connection.

Radio signal power

2.5 mW (100 mW limit)

Motion Detection

NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms

In-app video management system

Videowall that combines images from all connected cameras / Event filters / Timeline with smooth preview

Visual verification of Ajax alarms

NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps

Privacy

Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop

Main

110–240 V~, 50/60 Hz, 0.6 A / Up to 24 W of mains power consumption.

Backup

CR2032 battery, 3 V / Only to power the system clock

Tamper alarm

Notifications about attempts to detach the device from the surface or remove it from the mounting panel

Dimensions

193 × 193 × 47 mm

Weight

700 g / Without a hard drive

Operating temperature range

from 0°C to +40°C

Operating Humidity

Up to 75%

Protection class

IP20
