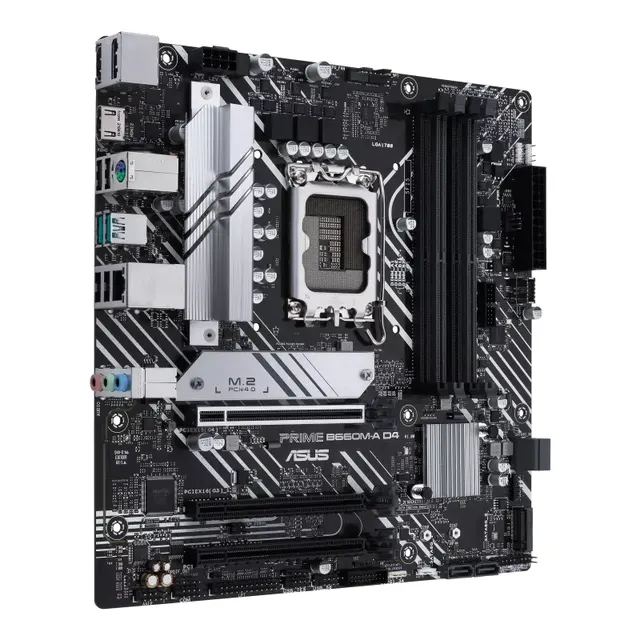

ASUS Motherboard LGA1700 mATX DDR4 PRIME B660M-A D4-CSM

Order code: 28426EAN: 4711081508045

Model:PRIME B660M-A D4-CSM
CPU Socket:LGA1700 (Supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron®)
Chipset:Intel® B660
Form Factor:Micro-ATX
Memory:4x DDR4 DIMM slots (Max 128GB, up to 5333MHz OC)
All specifications

€145.00€164.99incl. VAT

You save €19.99 (12%)

Ships in 2-4 working days

Free pickup from our shop

Description

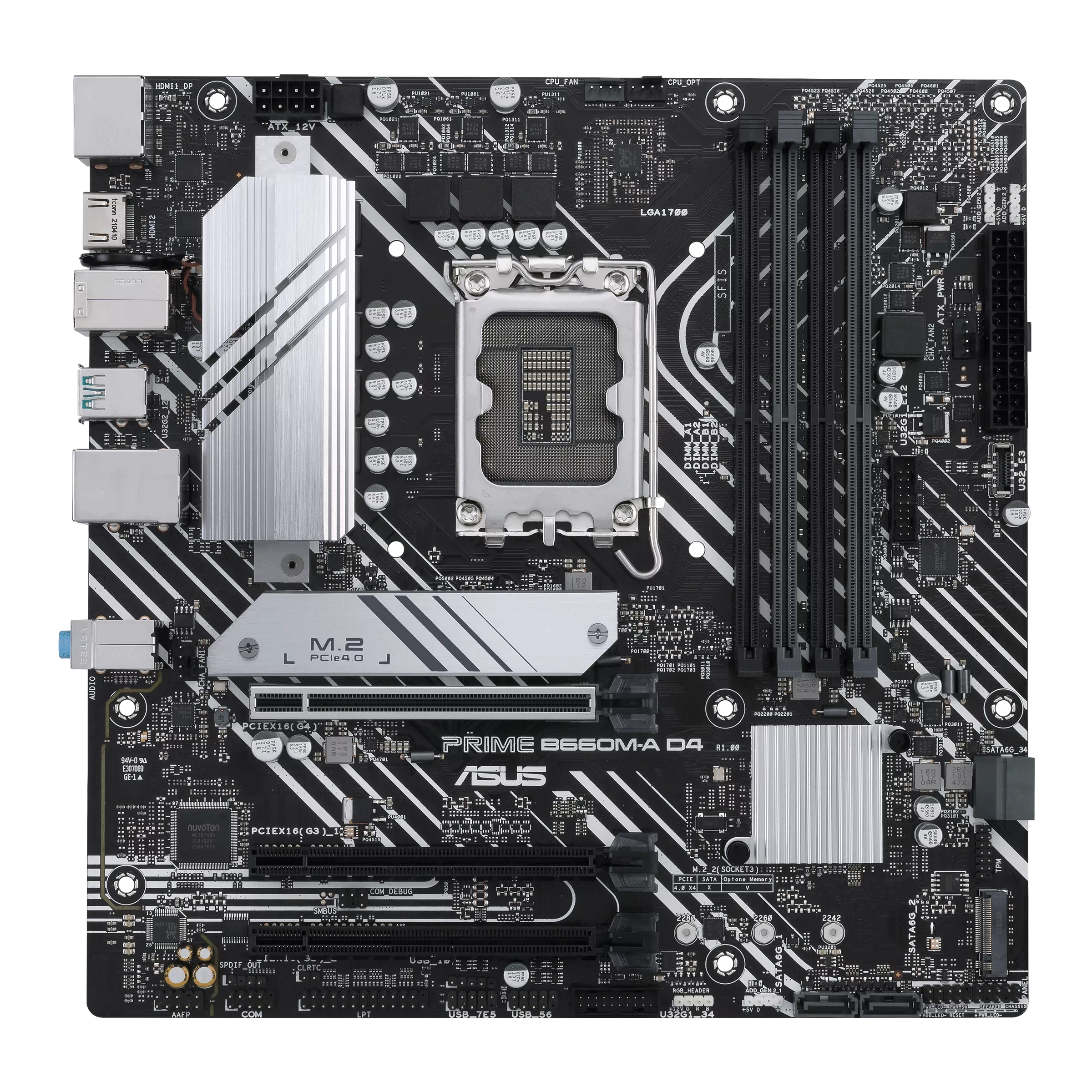

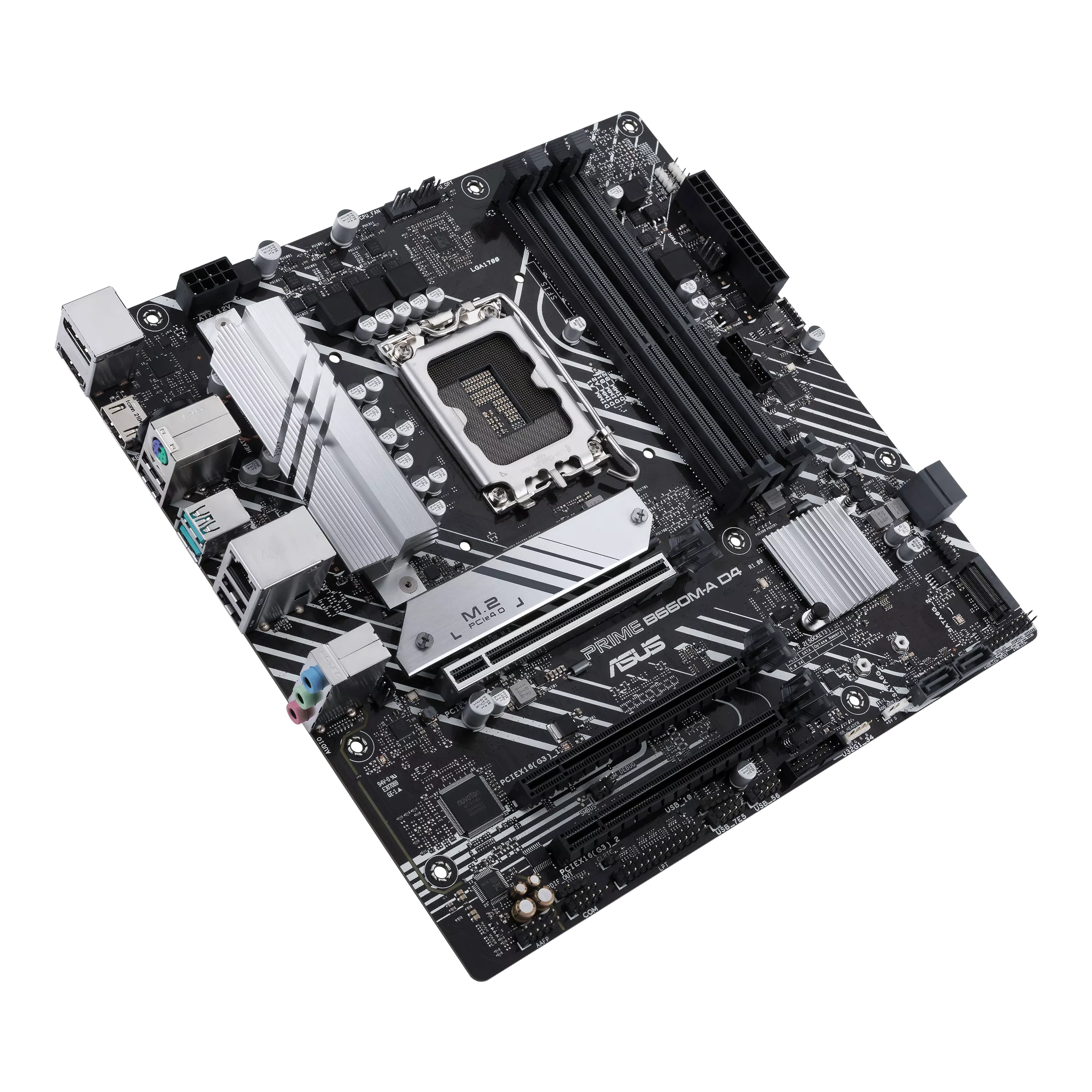

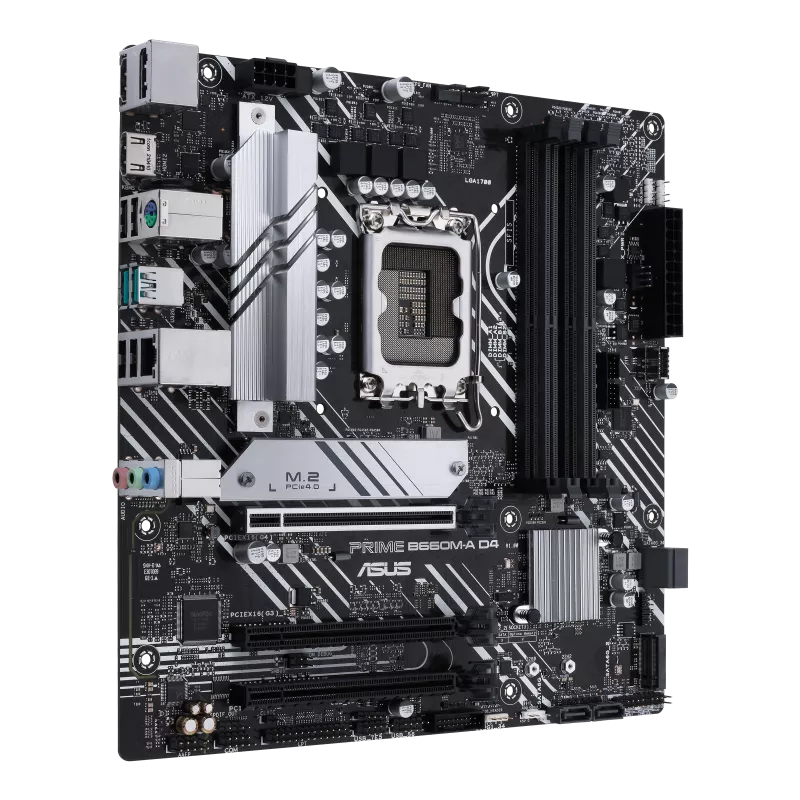

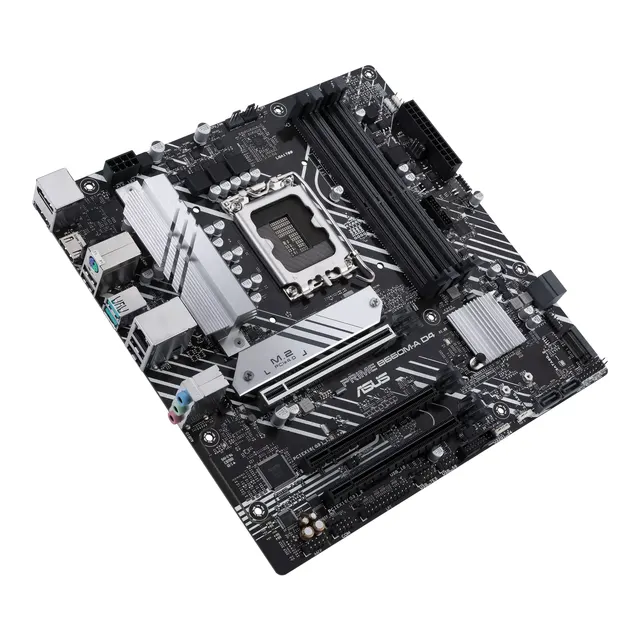

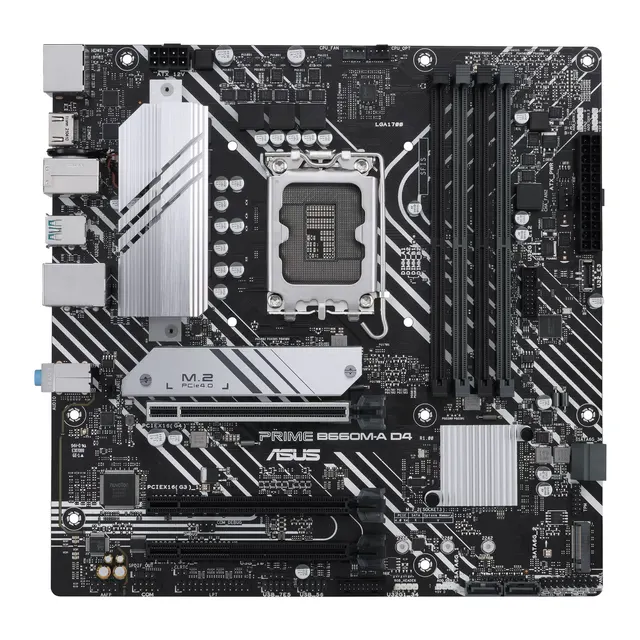

Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, DP,2 x HDMI®, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync.

Intel® LGA 1700 socket: Ready for 14th, 13th & 12th Gen Intel® processors
Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C®
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS Control Center Express(ACCE) to make IT endpoint management easier

Specifications

Model: PRIME B660M-A D4-CSM
CPU Socket: LGA1700 (Supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron®)
Chipset: Intel® B660
Form Factor: Micro-ATX
Memory: 4x DDR4 DIMM slots (Max 128GB, up to 5333MHz OC)
Storage: 2x M.2 slots (PCIe 4.0/3.0) + 4x SATA 6Gb/s
Graphics: 1x DisplayPort 1.4, 2x HDMI 2.1 (4K@60Hz)
USB: 6x rear USB (2x USB 3.2 Gen 2, 4x USB 2.0) + 10x front USB
Networking: Intel® 1Gb Ethernet
Audio: Realtek 7.1-Channel HD Audio
CPU Support: Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron®
PCIe Slots: 1x PCIe 4.0/3.0 x16 (CPU)
Ports: 1x DisplayPort 1.4 (4K@60Hz)
Note: iGPU support depends on CPU.

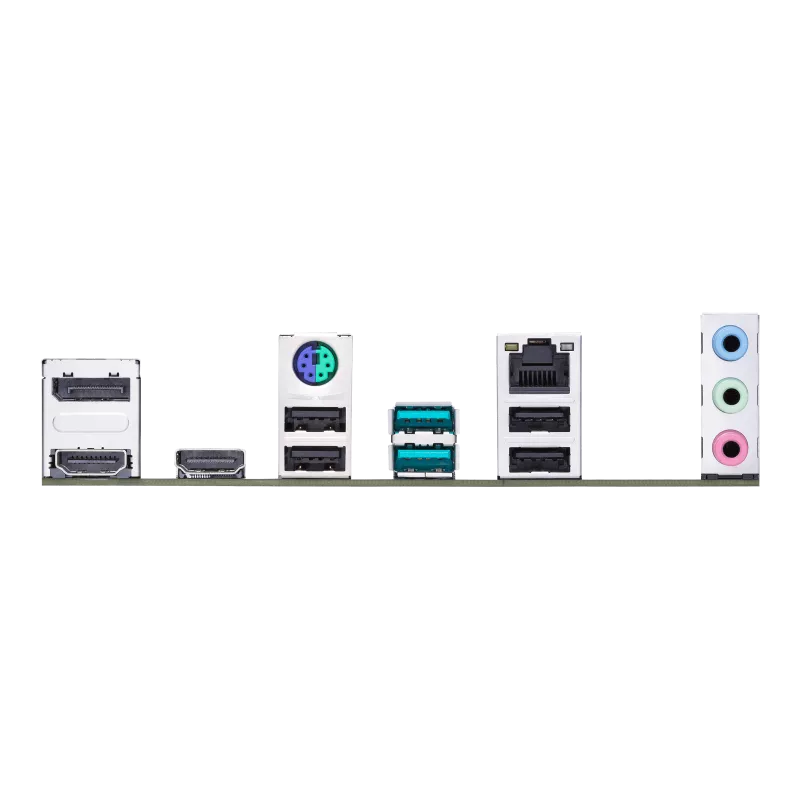

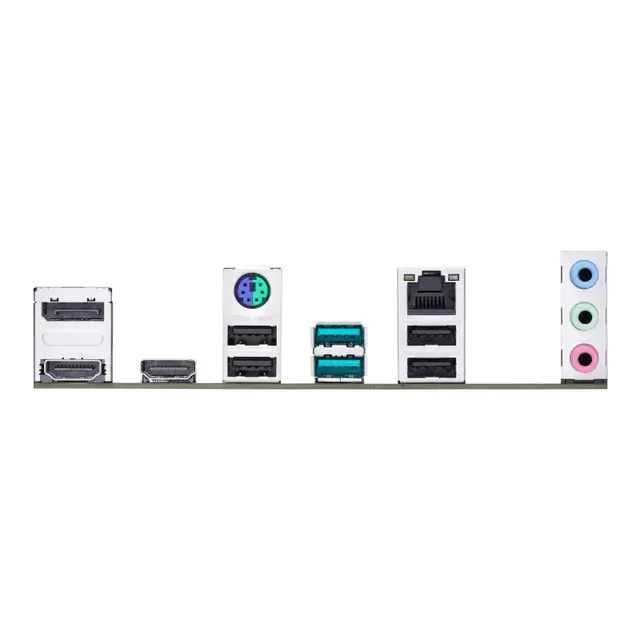

Rear USB: 2x USB 3.2 Gen 2 (Type-A)
Front USB: 2x USB 3.2 Gen 1 headers (4x ports)
Codec: Realtek 7.1-Channel HD Audio
Cooling: 1x CPU Fan, 1x CPU OPT Fan, 2x Chassis Fan
Power: 24-pin ATX, 8-pin +12V
Miscellaneous: 3x Aura RGB Gen 2 headers
Certifications: RoHS, CE, FCC
