Brateck
Brateck IFP Wall Mount Manual Vertical Motion 80x60 90kg HAW400E-90
Order code: 29152EAN: 6956745185707
- Product Category:Interactive Whiteboard Wall Mount
- Rank:Premium
- Material:Aluminum,Steel,Plastic
- Metal Sheet Thickness:Bracket Arm THK=2.5mm pickling sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.098" pickling sheet,Wall Plate THK=0.12" pickling sheet)
- Pipe Size:30x15x1.2mm Square Steel Tube (1.2"x0.59"x0.047" Square Steel Tube)
- All specifications
€569.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
Incorporating an innovative weight balance design and heavy-duty construction, the HAW400E-90 allows users to up and down the displays with only a touch, supporting the displays with a weight of 60~90kg (132lbs~198lbs). It is easy to install for a better user experience. Perfect for schools, conference rooms, healthcare facilities, trade shows, and more.
Specifications
- Product Category
- Interactive Whiteboard Wall Mount
- Rank
- Premium
- Material
- Aluminum,Steel,Plastic
- Metal Sheet Thickness
- Bracket Arm THK=2.5mm pickling sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.098" pickling sheet,Wall Plate THK=0.12" pickling sheet)
- Pipe Size
- 30x15x1.2mm Square Steel Tube (1.2"x0.59"x0.047" Square Steel Tube)
- Surface Finish
- Powder Coating
- Color
- Matte Black

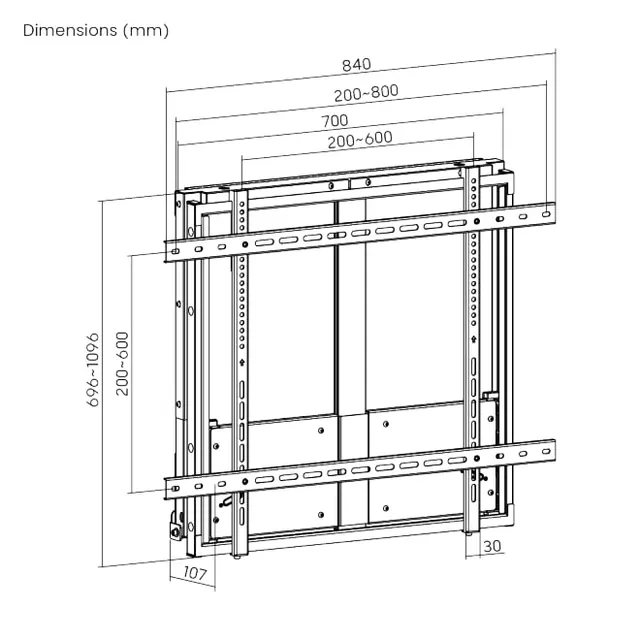

- Dimensions
- 107x840x696mm (4.2"x33.1"x27.4")
- Fit Screen Size
- 75"-90"
- Fit Curved TV
- No
- Mounting Hole Pattern
- VESA & Universal
- VESA Compatible
- 200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,350x350,400x400,600x300,400x600,600x400,700x400,800x400,600x600,800x500,800x600
- Max. Mounting Hole
- 800x600
- Weight Capacity
- 60~90kg (132~198lbs)
- Strength Tested
- 4 Times Approved
- Profile
- 107mm (4.2")
- Screen Freely Tilting
- No
- TV Height Range
- 400mm (15.7")
- Installation
- Solid Wall,Double Stud(406mm/450mm)
- Panel Type
- Detachable Panel
- Wall Plate Type
- Fixed Wall Plate
- AV Component Shelf
- No
- Direction Indicator
- Yes
- Cable Management
- No
- Anti-theft
- No
- Bubble Level
- Hook-on Bubble Level(Included in Components Package)
- Accessory Kit Package
- Normal/Ziplock Polybag,Compartment Polybag
