Dahua

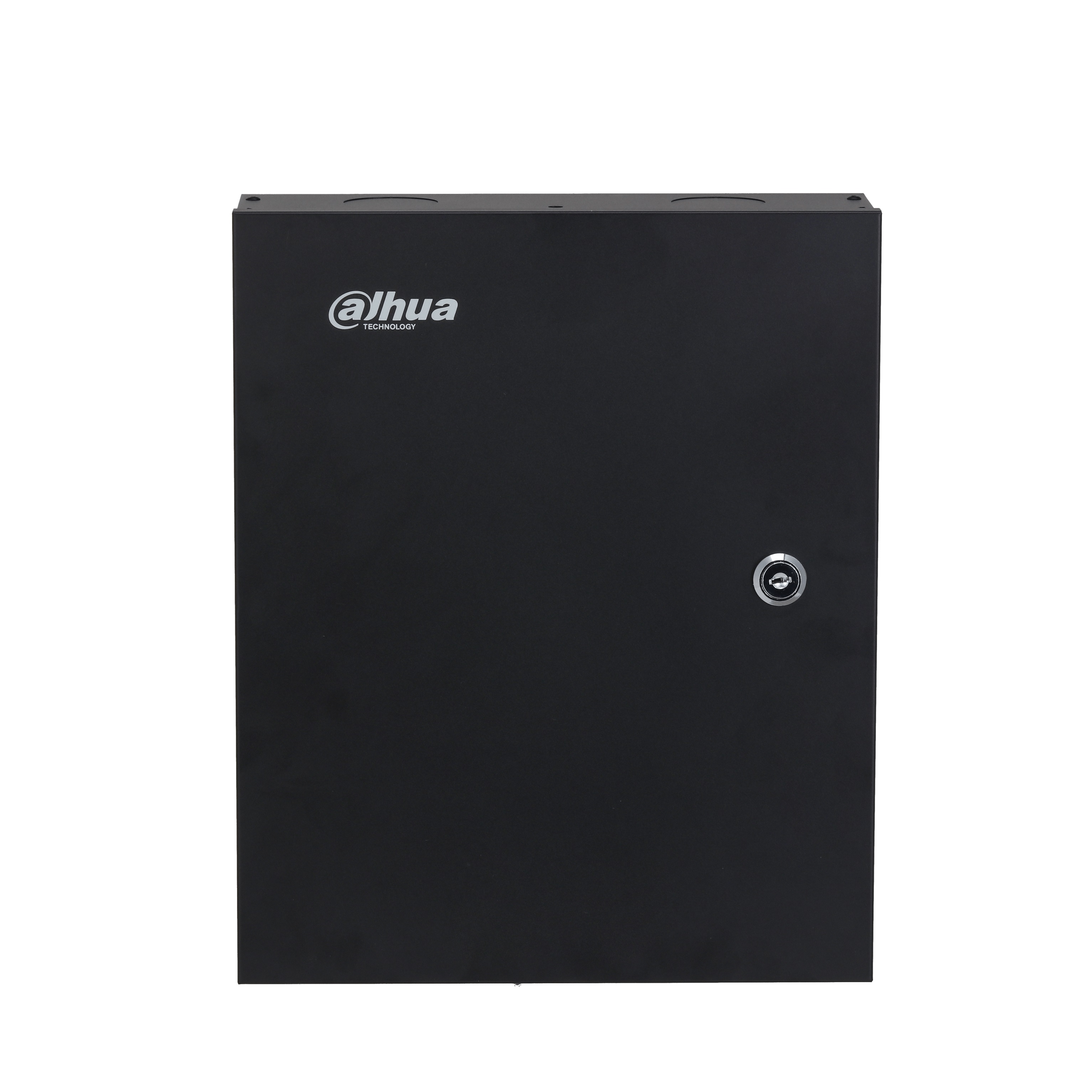

Dahua AC Eight Door One Way ASC2208C-S
Order code: 24703
- Main Processor:Embedded Processor
- Internet Protocol:IPv4; TCP; UDP
- OSDP Protocol:Yes
- SDK:Yes
- Product Appearance:Type C Iron Container
- All specifications
€611.00incl. VAT
Out of stock
Description
- TCP/IP communication
- Two communication protocols: RS-485 and Wiegand
- Supports storing 100,000 user and 500,000 card-swiping records
- Supports multi-door interlock, multi-user unlock, anti-passback, and remote unlock
- Supports reader tamper alarm, intrusion alarm, unlocking timeout alarm, duress alarm, invalid card exceeding threshold alarm, and incorrect password alarm
- Supports built-in RTC, manual time fixing, and automatic time fixing
- Data can be saved permanently in case of power failure; supports online upgrade
- Power supply through storage battery
- Supports watchdog mechanism to ensure the operation stability
Specifications
- Main Processor
- Embedded Processor
- Internet Protocol
- IPv4; TCP; UDP
- OSDP Protocol
- Yes
- SDK
- Yes
- Product Appearance
- Type C Iron Container
- Buzzer
- Yes
- Casing Material
- SECC steel board
- Unlock Mode
- Card swiping; Remote; Password; Fingerprint
- Period List
- 128
- Holiday Period
- 128
- Network Update
- Yes
- First-Card Unlock
- Yes
- Remote Verification
- Yes
- Blocklist/Allowlist
- Yes
- Peripheral Card Reader
- 8-Channel RS-485 card reader / 8-Channel Wiegand card reader
- Multi-door Interlock
- Yes
- Group Combination
- Card swiping; password; fingerprint
- Real-Time Surveillance
- Yes
- Multiple Authentication
- Yes
- User (Card) Type
- General user; VIP user; patrol user; guest user; blocklist user; other user
- User
- 100,000
- Fingerprint
- 3,000
- Card
- 100,000
- Record Capacity
- 500,000
- RS-485 Port
- 9 × RS-485 ports
- Wiegand
- 8 × Wiegand ports
- Network
- 1 × 10/100 Mbps Ethernet port
- Alarm Input
- 8 (digital quantity)
- Alarm Output
- 8 (relay)
- Alarm Linkage
- Yes
- Exit Button
- 8
- Door Status Detection
- 8
- Lock Control
- 8 channels, NO by default
- Anti-Passback
- Yes
- Tamper
- Yes
- Duress
- Yes
- Door Unlock Timeout
- Yes
- Intrusion
- Yes
- Illegal Card Exceeding Threshold
- Yes
- Duress Fingerprint
- Yes
- Power Supply
- 100-240 V AC
- IP Rating
- IP20; Ik04
- Power consumption
- ≤ 0.8 W (standby), ≤ 39.6 W (working)
- Product Dimensions
- 337 mm × 272 mm × 90 mm (H × W × D)
- Packaging Dimensions
- 472 mm × 352 mm × 163 mm (H × W × D) (one product in an inner carton)
- Operating Temperature
- –30°C to +60°C (–22 °F to +140 °F)
- Operating Humidity
- 5%–95% RH (non-condensing)
- Operating Environment
- Indoor
- Gross weight
- 3.5 kg
- Installation
- Surface Mount
