Dahua

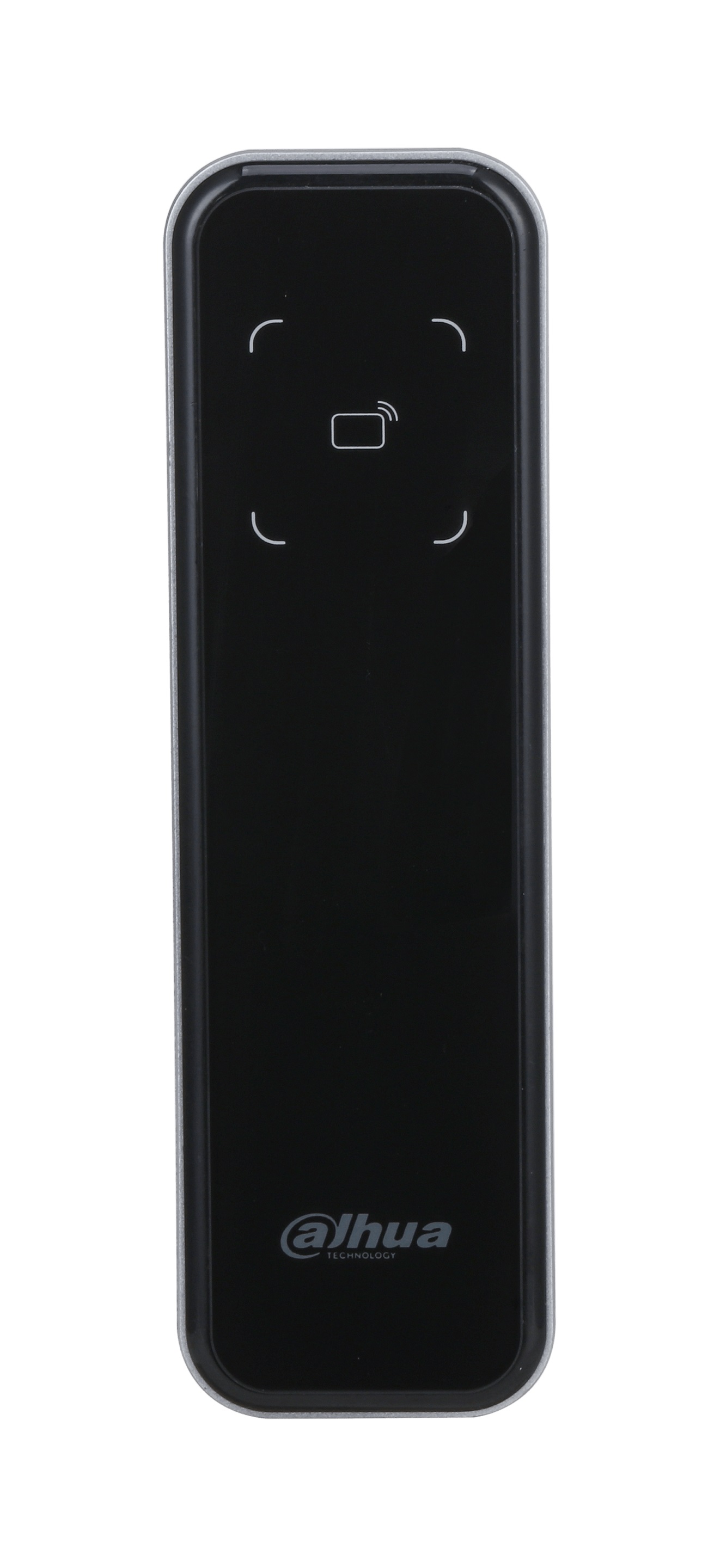

Dahua AC RFID Reader Slim Water-proof ASR2200A-D
Order code: 23680
- Product Type:Slim Card Reader
- Buzzer:Yes
- Casing:Tempered glass/PC
- Unlock Mode:Card swiping
- Card Type:ID card
- All specifications
€74.00incl. VAT
Out of stock
Description
- PC material, tempered glass panel and IP66, suitable for indoor and outdoor use
- Support contactless recognition of ID card (Mifare card)
- Support card unlock
- Support RS485 and Wiegand communication
- Support buzzer and indicator prompt
- Support anti-tampering alarm
- The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
- All connection ports have overcurrent and overvoltage protection
Specifications
- Product Type
- Slim Card Reader
- Buzzer
- Yes
- Casing
- Tempered glass/PC
- Unlock Mode
- Card swiping
- Card Type
- ID card
- Response Time
- 0.1 s
- Card Reading Distance
- 0 cm–5 cm
- Port
- RS-485
- 1 channel
- Wiegand
- 1 output channel
- Alarm
- Tamper alarm
- Yes
- Power Supply
- 12V 0.5A DC
- Protection
- IP66 (silicon sealant is needed, see the manual)
- Power consumption
- Standby ≤ 0.9W, working ≤ 1.7W
- Product Dimensions
- 135 mm × 40 mm × 15 mm (L × W× H)
- Operating Temperature
- –30°C to +70°C (–22°F to +158°F)
- Operating Humidity
- 5%RH–95% (non-condensing)
- Operating Environment
- Indoor; outdoor
- Gross weight
- 0.16 kg
- Installation
- Surface Mount
- Certifications
- CE; FCC
