- Includes a 2-megapixel CMOS dual-lens camera that supports IR illumination and WDR
- Unlocks through face, IC cards and QR code. You can also combine these methods to create your own personal unlock methods, and unlock based on periods
- Supports 10,000 users, 10,000 faces, 10,000 cards, 10,000 Bluetooth cards, and 300,000 logs
- Recognizes faces 0.3 m to 1.5 m away with 99.9% accuracy at a 1:N matching speed of 0.2 seconds per person
- Offers mask detection
- Supports visitor QR codes
- Supports remote operation through the companion app
- Network connectivity through TCP/IP and Wi-Fi
- IP65-rated protection
- Includes a power supply that provides up to 12 V /1A for electromagnetic locks and card readers
- Includes breathing LEDs and tri-color status indicators
- Seamlessly connects to DSS Pro, SmartPSS Lite and DMSS
Welcome to Ubucy store
- Contact
-
English
- Login / Register

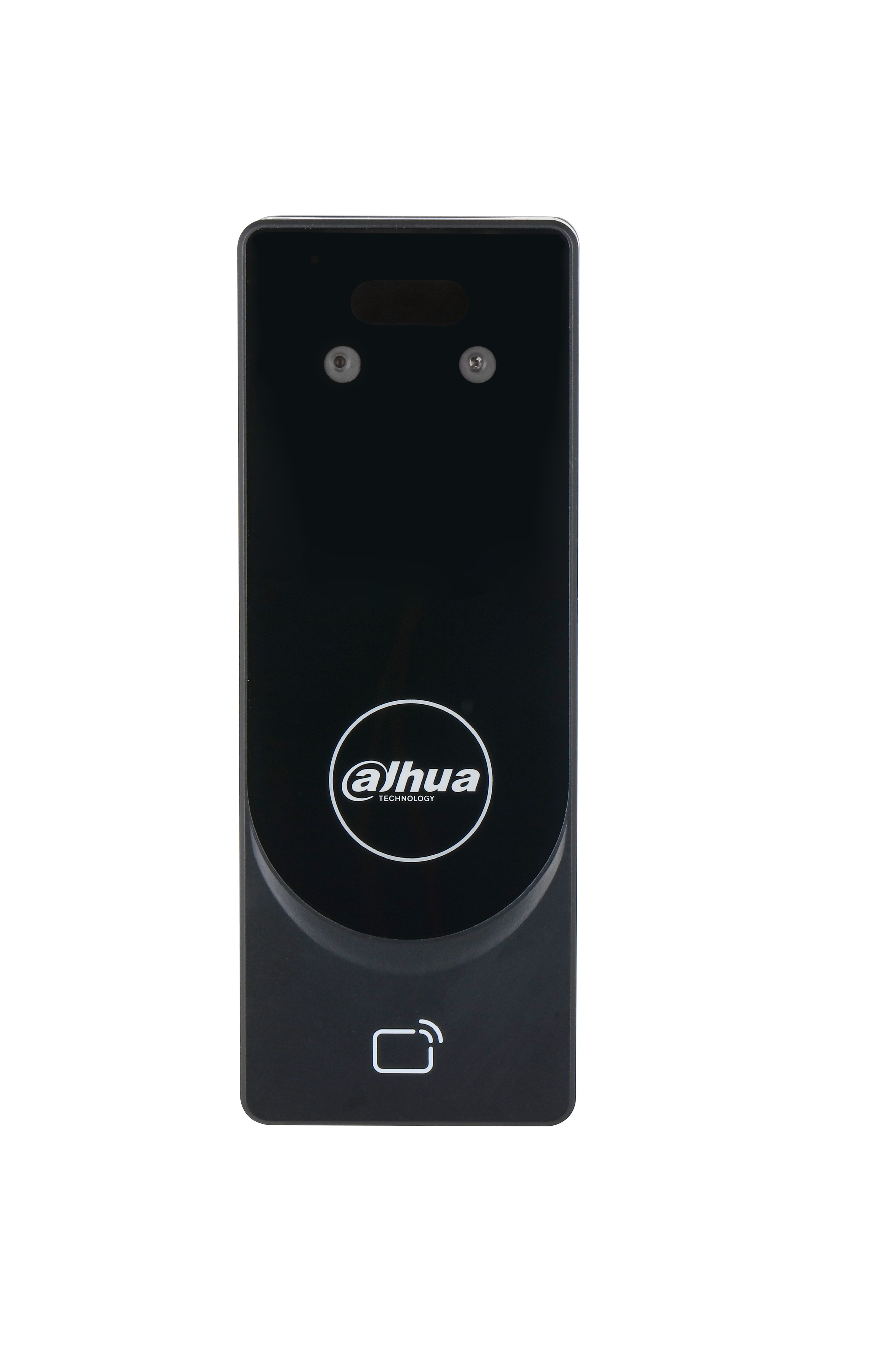

Dahua AC Standalone Wi-Fi QR Code, Face Recognition, Card Swiping ASI3103F-W (supports Guest QR Code)
In stock
Delivery time
business days
Available in
0 Days
Out of stock
€391.00
- 30967
- SECURITY
Specification
- Embedded Processor
- IPv4 / RTSP / UDP / P2P / IPv6 / RTP / TCP / SIP
- Yes
- CGI
- Yes
- Standalone
- 2 MP CMOS HD dual-lens camera
- DWDR
- Auto IR
- Yes
- Yes
- PC+ABS
- Card / Remote / QR Code / Face Recognition / Bluetooth
- 13.56 MHz
- ≤[email protected] MHz
- 128
- 128
- Yes
- Yes
- Yes
- Yes
- Yes
- BLE (Bluetooth Mode) / BLE5.2 (Bluetooth Version)
- 1 × RS-485 port and 1 × Wiegand port
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- IC card / Desfire card (EV3 / Compatible with Dahua card by default)
- ASK
- YES
- IEEE802.11b/802.11g/802.11n
- 2.4 GHz
- 2 cm- 3 cm (0.79''-1.18'')
- 0.9 m- 2.4 m (35.43'' - 94.49'')
- 0.3 m- 1.5 m (11.81'' - 59.06'')
- 99.90%
- 0.2 s
- General user / guest user / patrol user / VIP user / blocklist user / other users / custom user 1 / custom user 2
- 10,000
- 10,000
- 10,000
- 300000
- 1
- 1 × input port/output
- 1 × USB2.0 port
- 1 × 10 Mbps/100 Mbps Ethernet port
- 1 × switch quantity
- 1
- Yes
- 1
- 1
- 1
- 1(12 V / 1 A)
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
- Optional
- 12 VDC / 2 A
- IP65
- ≤24 W
- 155.0 mm × 57.5 mm ×24.8 mm (6.10" × 2.26" × 0.98") (H×W×T)
- 99.0 mm × 118.0 mm ×196.0 mm (3.90" × 4.65" × 7.72") (H×W×T)
- 273.0 mm × 422.0 mm ×720.0 mm (10.75" × 16.61" × 28.35") (H×W×T)
- –30 °C to +60 °C (–22 °F to +140 °F)
- 0%–90%(RH), non-condensing
- 0 m- 1300 m (0 ft- 4265.09 ft)
- Indoor / Outdoor
- 0.5 kg (1.10 lb)
- Wall-mounted bracket (standard)
- Wall Mount / Floor Bracket Mount / Turnstile Mount
- ...
- ...
