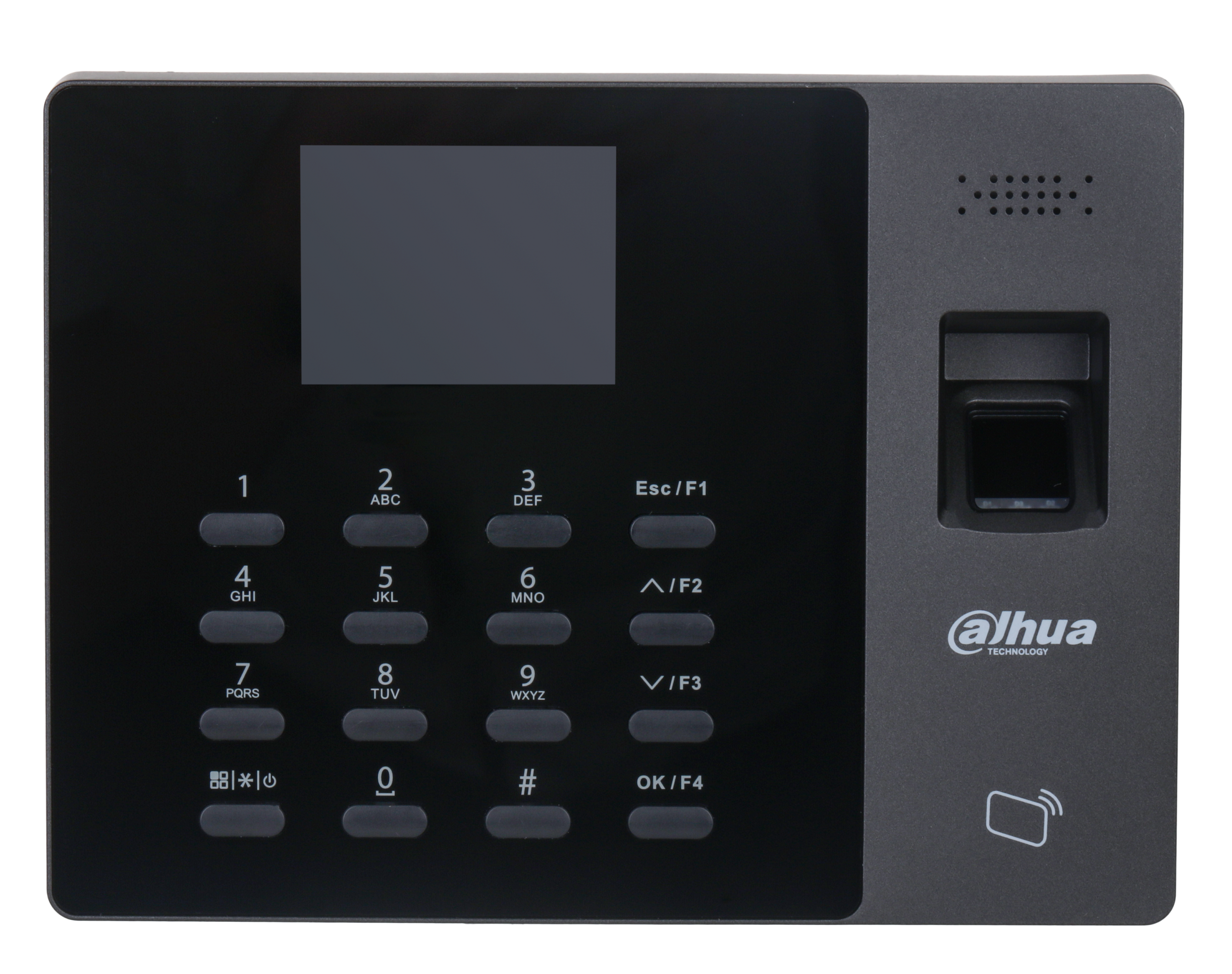

Dahua AC Time Attendance card/Password/FingerprintTerminal ASA2212GL-D

Order code: 29070

Main Processor:Embedded Processor
Button Type:Mechanical
Network Protocol:IPv4;UDP;P2P;IPv6;TCP
OSDP Protocol:Yes
Input Method:T9
All specifications

€197.00incl. VAT

Out of stock

Description

Built of PC and ABS material, and comes with 2.4" LCD with a resolution of 240 (H) × 320 (V)
Built-in rechargeable lithium battery, which can be used for about 3 hours after being fully charged
Convenient to configure through its webpage that is accessible to both computers and mobile devices
Attendance can be marked through card(ID), password and fingerprint.
Supports 3,000 users, 3,000 cards, 3,000 fingerprints, and 100,000 attendence records
Supports configuring up to 20 departments, and 24 shifts directly on the device. Each shift can contain 2 working periods, and 1 overtime period
Features voice prompts
Supports importing and exporting information on people, cards, shifts, and schedules through the USB flash drive
Supports TCP/IP connection, auto registration, P2P registration and DHCP.
Online update and update through USB

Specifications

Main Processor: Embedded Processor
Button Type: Mechanical
Network Protocol: IPv4;UDP;P2P;IPv6;TCP
OSDP Protocol: Yes
Input Method: T9
Interoperability: ONVIF;CGI
SDK: Yes
API: Yes
Display Screen: 2.4" TFT
Product Type: Attendance Standalone
Screen Type: Non-touchscreen
Screen Resolution: 320 × 240
Voice Prompt: Yes
Powering On/Off Button: 1
Casing Material: PC + ABS
Card Type: ID card
Network Update: Yes
Real-time Monitoring: Yes
Frequency Range: 125KHz
Auto Registration: Yes
Response Time: 0.2 s
Card Reading Distance: 0 cm–3 cm
Fingerprint Sensor Type: Optical fingerprint
Fingerprint Verification Mode: 1:N
Fingerprint Recognition Time: 0.5 s
Export Attendance Record: USB flash drive export
Attendance Check Mode: Free attendance; Fixed attendance
Attendance Statistics: Yes
Department Setting: Yes
Schedule Setting: Yes
User (Card) Type: General user
User Capacity: 3,000
Fingerprint Capacity: 3,000
Card Capacity: 3,000
Password Capacity: 3,000
Record Capacity: 100,000
USB: 1 × USB 2.0 port
Network Port: 1 × RJ-45
Exit Button: 1 channel
Lock Control: 1 channel, overlay
Power Adapter: Included
Power Supply: 12 VDC, 1 A
Power consumption: ≤ 6 W (Working)
Product Dimensions: 181.6 mm × 135.6 mm × 32.7 mm
Packaging Dimensions: 298 mm × 162 mm × 71 mm (L × W × H, in an inner carton) / 383 mm × 313 mm × 349 mm (L × W × H, protection box)
Operating Temperature: –10 °C to +55 °C
Operating Humidity: 5%–95% (RH)
Operating Environment: Indoor
Gross weight: 0.61 kg
Installation: Surface Mount
Certifications: CE; FCC
Storage Temperature: –20 °C to +70 °C
