Dahua

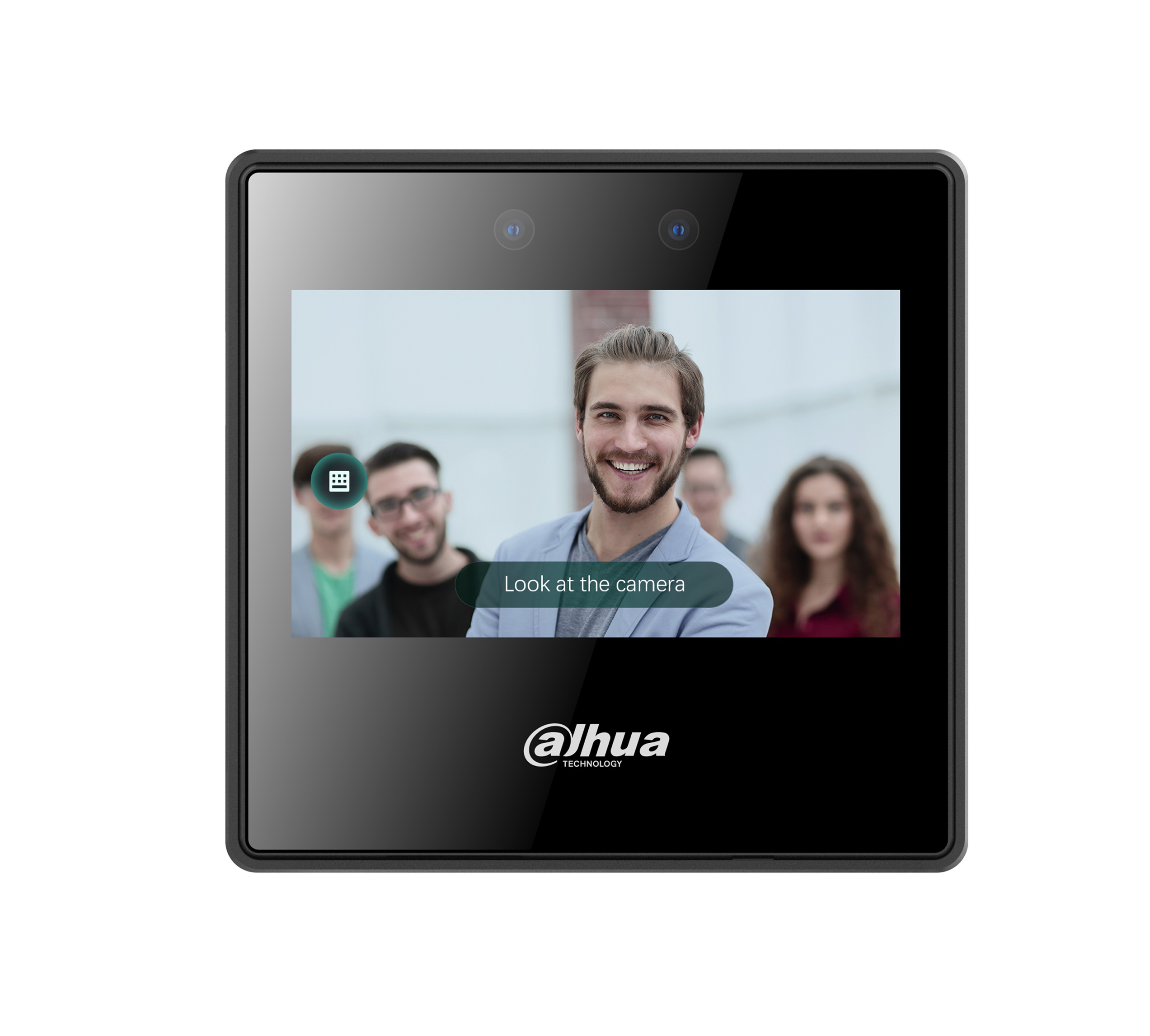

Dahua AC Time Attendance & Face Recognition Terminal ASA3223A-W
Order code: 26213
- Main Processor:Embedded Processor
- Network Protocol:IPv4; RTSP; RTP; TCP; UDP; P2P
- Interoperability:ONVIF; CGI
- SDK and API:Yes
- Product Type:Standalone
- All specifications
€302.00incl. VAT
Out of stock
Description
- 4.3 inch glass touch screen with a resolution of 480 × 272
- 2-MP wide-angle dual-lens camera with IR illumination and DWDR
- Verification Methods including face and password
- Supports mask detection
- Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft)
- Supports 2,000 users, 2,000 faces, 2,000 passwords, 50 administrators, and 300,000 records
- Liveness detection has a face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person
- Supports customization of voice prompts
Specifications
- Main Processor
- Embedded Processor
- Network Protocol
- IPv4; RTSP; RTP; TCP; UDP; P2P
- Interoperability
- ONVIF; CGI
- SDK and API
- Yes
- Product Type
- Standalone
- Display Screen
- 4.3" LCD
- Screen Type
- Capacitive Touchscreen
- Screen Resolution
- 480 (H) × 272(V)
- Camera
- 2-MP CMOS HD dual-lens camera
- WDR
- DWDR
- Light Compensation
- Auto IR
- Voice Prompt
- Yes
- Casing
- PC + ABS
- Verification Method
- Password, face, and other verification methods
- Period List
- 128 periods
- Holiday Period
- 128 periods
- Network Update
- Yes
- Wi-Fi
- YES
- Wireless Standard
- IEEE802.11b/802.11g/802.11n
- Wireless Frequency Range
- 2.4 GHz
- Web Configuration
- Yes
- Auto Registration
- Yes
- Real-time Monitoring
- Yes
- Face Recognition Height Range
- 1.1 m–2.0 m
- Face Recognition Distance
- 0.3 m–1.5 m
- Face Recognition Accuracy
- 99.9%
- Face Recognition Time
- 0.2 s
- User Capacity
- 2,000
- Face Image Capacity
- 2,000
- Password Capacity
- 2,000
- Record Capacity
- 300,000
- USB
- 1 × USB 2.0
- Power Adapter
- Standard
- Power Supply
- 12 VDC, 1.5 A
- Power consumption
- ≤18 W
- Product Dimensions
- 115.0 mm × 118.0 mm × 27.1 mm (H × W × W)
- Packaging Dimensions
- 190 mm × 179 mm × 127 mm (L × W × H, protection box)
- Operating Temperature
- –10 °C to +40 °C
- Operating Humidity
- 0%–90% (RH), non-condensing
- Operating Environment
- Indoor
- Net Weight
- 250 g
- Gross weight
- 400 g
- Accessory
- Wall mount bracket and desktop bracket (included)
- Installation
- Wall mount ; 86 case mount; desk mount
