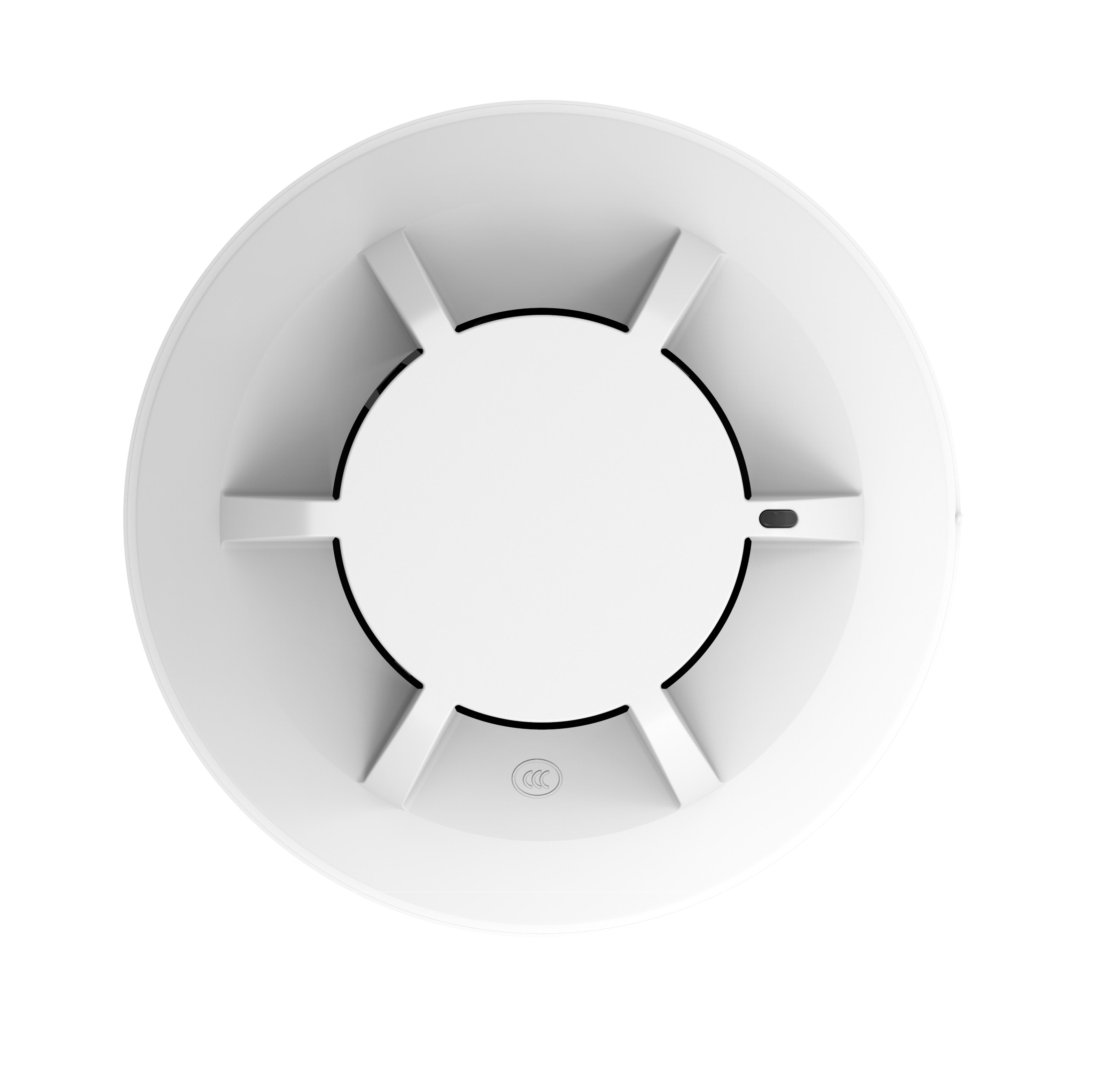

Dahua Addressable Fire Alarm Detector without Base (Smoke) HY-1301-CTXF
Order code: 28569
- Working Voltage:24V DC
- Current:Monitoring current: ≤ 180μA / Maximum operating current: ≤ 280μA
- Indicator:Red / Polling: Flash 6 seconds / Alarm: Remain lit / Fault: Flash 2 seconds
- Wiring:Two-wire, polarity-free
- Addressing Method:Electrical encoder
- All specifications
€30.00incl. VAT
Out of stock
Description
- Convenient wiring: Two-wire, polarity-free
- Reliable communication: Built-in microprocessor, stable performance
- Ultra-low power consumption: Ultra-low monitoring current and alarm current
- Detection performance: Accurate smoke detection by sensitive sensor
Specifications
- Working Voltage
- 24V DC
- Current
- Monitoring current: ≤ 180μA / Maximum operating current: ≤ 280μA
- Indicator
- Red / Polling: Flash 6 seconds / Alarm: Remain lit / Fault: Flash 2 seconds
- Wiring
- Two-wire, polarity-free
- Addressing Method
- Electrical encoder
- Address Range
- 1–254
- Communication Distance
- ≤ 1500 m (4921.26 ft)
- Operating Temperature
- –10°C to +50°C (+14°F to +122°F)
- Storage Temperature
- –20°C to +65°C (–4°F to +149°F)
- Operating Humidity
- ≤ 95% RH (no condensation)
- Color
- White
- Dimensions (with base)
- Φ100 mm × 50 mm (Φ 3.00" × 1.50")
- Weight (with base)
- 102 g (0.22 lb)
- Compliance Standard
- EN54-7
