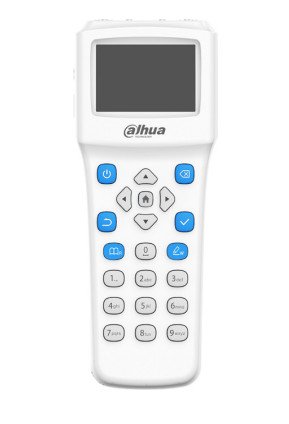

Dahua Addressable Fire Alarm Encoder HY-BM-1712
Order code: 28565
- Working Power:DC 6 V
- Current Monitoring current:≤ 1.5 mA; Operating current ≤ 60 mA
- Output Voltage:DC 16 V or DC 24 V
- Operating Temperature:−10 °C to +55 °C (14 °F to 131 °F)
- Storage Temperature:−20 °C to +65 °C (−4 °F to 149 °F)
- All specifications
€152.00incl. VAT
Out of stock
Description
- Auto-address increment when addressing consecutive devices
- LCD display with backlight for reading/writing addresses
- Start/stop test; line troubleshooting (measuring line voltage and resistance)
- Low-power sleep mode when idle for long periods
Specifications
- Working Power
- DC 6 V
- Current Monitoring current
- ≤ 1.5 mA; Operating current ≤ 60 mA
- Output Voltage
- DC 16 V or DC 24 V
- Operating Temperature
- −10 °C to +55 °C (14 °F to 131 °F)
- Storage Temperature
- −20 °C to +65 °C (−4 °F to 149 °F)
- Operating Humidity
- ≤ 95% RH (no condensation)
- Color
- White
- Dimensions
- 160.0 mm × 47.3 mm × 31.4 mm
- Weight
- 167 g
