Dahua

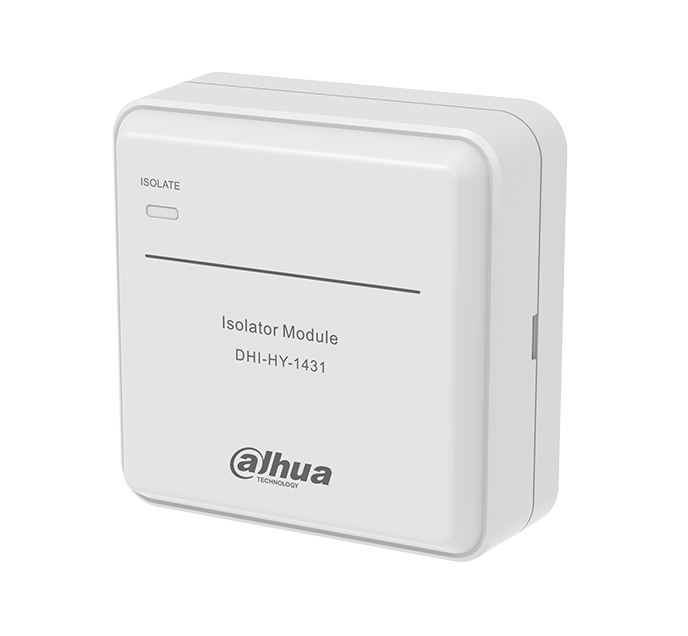

Dahua Addressable Fire Alarm Module Isolator without Base HY-1431R-CTXF
Order code: 28577
- Working Voltage:24 V DC nominal
- Monitoring Current:≤ 150 μA
- Alarm current:≤ 8 mA
- Short-Circuit Protection Current:~ 450 mA
- Communication Wiring:Two-wire, polarity-free
- All specifications
€35.00incl. VAT
Out of stock
Description
- Automatic isolation of loop short circuits
- Automatic restoration when the fault is removed
- LED indicator for status and fault conditions
- Compatible with two-wire polarity-free addressable loops
- Compact design with base for quick installation
Specifications
- Working Voltage
- 24 V DC nominal
- Monitoring Current
- ≤ 150 μA
- Alarm current
- ≤ 8 mA
- Short-Circuit Protection Current
- ~ 450 mA
- Communication Wiring
- Two-wire, polarity-free
- Maximum Loop Distance
- ≤ 1500 m
- Operating Temperature
- −10 °C to +55 °C
- Storage Temperature
- −20 °C to +65 °C
- Humidity
- ≤ 95% RH (non-condensing)
- Dimensions (with base)
- 90 mm × 90 mm × 37 mm
- Weight (with base)
- ~107 g
