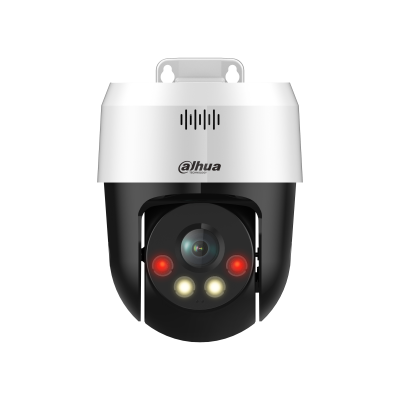

Dahua IP 5.0MP PT Dome Smart Dual Light SD2A500NB-GNY-A-PV

Specifications

Image Sensor

1/2.8" CMOS

Pixel

5 MP

Max. Resolution

2560 (H) × 1920(V)

Electronic Shutter Speed

1 s–1/100,000 s

Illuminator Number

2 (IR light); 2 (warm light)

Focal Length

4.0 mm

Max. Aperture

F1.6

Field of View

H: 80.4°; V: 58.1°; D: 104.8°

Close Focus Distance

0.3 m

Pan/Tilt Range

Pan: 0° to 345° / Tilt: 0° to +80°

Preset

300

IVS

Tripwire; intrusion,linkage tracking

Human Detection

Yes

SMD

SMD3.0

Light Warning

Warm light warning / Flash duration: 5 s–30 s / Flash frequency:high, medium, low

Sound Warning

Offers 1 sound alarm and 10 custom sound alarms can be imported / Sound can be set from 0%–100% / Play times can be set from 1-10

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream 1)

Resolution

5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)

Video Bit Rate

H264: 88 kbps-8,192 kbps / H265: 35 kbps-8,192 kbps

Day/Night

Auto (ICR); Color/B/W

WDR

DWDR

Image Rotation

180°

Audio Compression

PCM; G.711A; G.711Mu; G.726

Network Protocol

UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP

Interoperability

RTMP;CGI;SDK;ONVIF (Profile S & Profile T);P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (256 GB); FTP

Browser

IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software

Player;Smart Player ;DMSS;ConfigTool;NVR;Smart PSS

Mobile Client

iOS;Android

Power Supply

12 VDC/1.5 A ± 10% PoE (802.3af)

Operating Temperature

–30 °C to +55 °C

Operating Humidity

≤95%

Protection

Waterproof and Dustproof;TVS 2000 V lightning proof; surge protection; voltage transient protection

Product Dimensions

140.5 mm × Φ111.0 mm

Net Weight

0.5 kg

Gross weight

1 kg
