Dahua

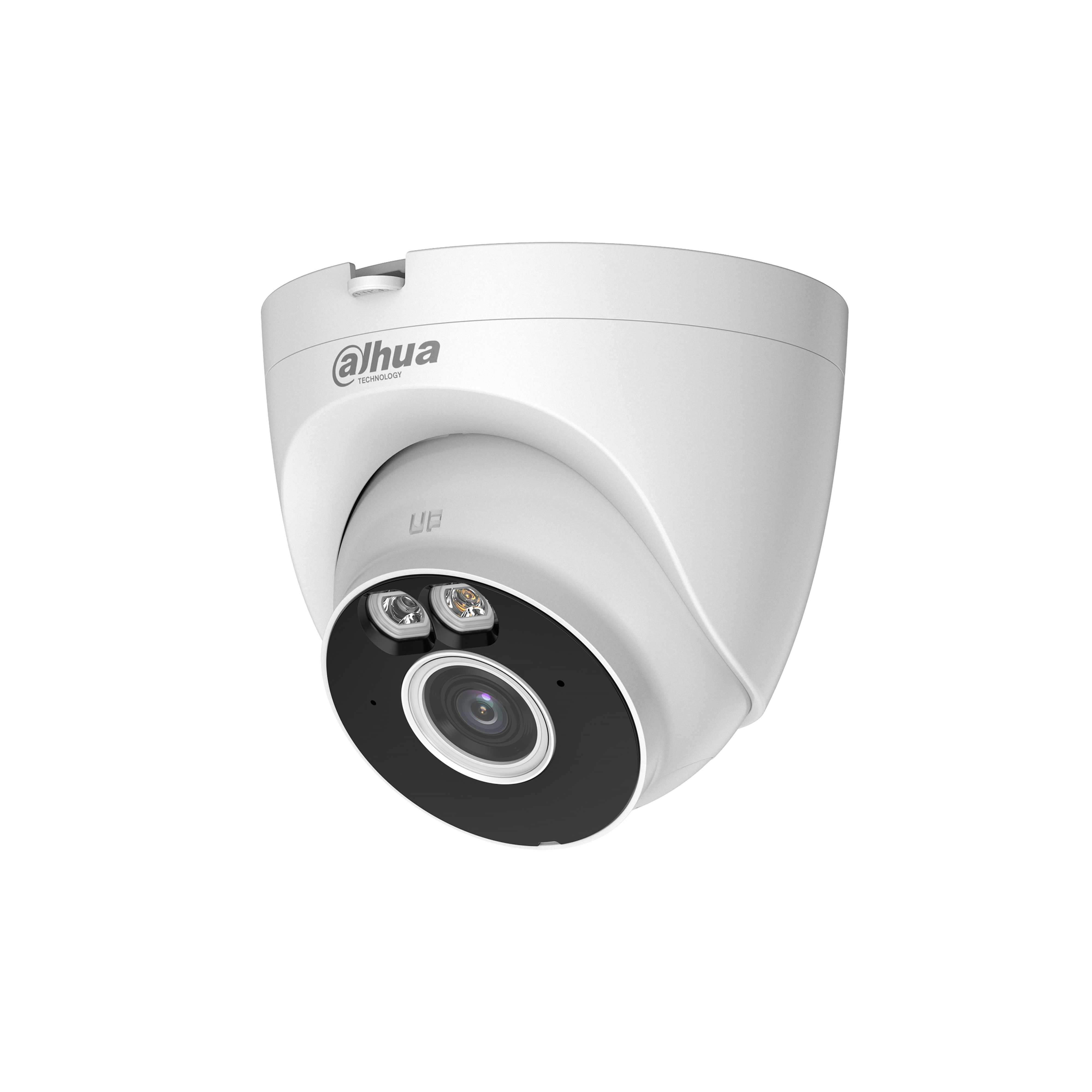

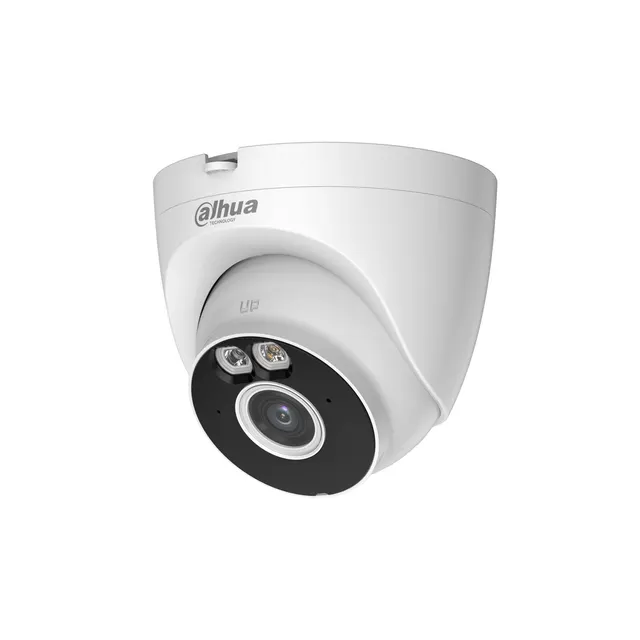

Dahua IP 5.0MP Wifi Dome Dual Illumination T5A-PV
Order code: 28742EAN: 6939554917257
- Image Sensor:1/2.7" CMOS
- Max. Resolution:2880 (H) × 1620 (V)
- Min. Illumination:0.007 [email protected] (Color, 30 IRE) / 0.0007 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- Illumination Distance:Up to 30 m (98.43 ft) (IR) / Up to 30 m (98.43 ft) (Warm light)
- Illuminator Number:1 (IR LED); 1 (Warm light)
- All specifications
€69.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images. They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail stores, homes, and other small and medium-sized enterprises.
Specifications
- Image Sensor
- 1/2.7" CMOS
- Max. Resolution
- 2880 (H) × 1620 (V)
- Min. Illumination
- 0.007 [email protected] (Color, 30 IRE) / 0.0007 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- Illumination Distance
- Up to 30 m (98.43 ft) (IR) / Up to 30 m (98.43 ft) (Warm light)
- Illuminator Number
- 1 (IR LED); 1 (Warm light)
- Angle Adjustment
- Pan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360°
- Lens Type
- Fixed-focal
- Focal Length
- 2.8 mm; 3.6 mm
- Max. Aperture
- F1.6
- Field of View
- 2.8 mm: H: 108°; V: 57°; D: 129° / 3.6 mm: H: 89°; V: 48°; D: 104°
- Human Detection
- Yes
- Vehicle Detection
- Yes
- Video Compression
- H.264B; H.264; H.264H; H.265
- Video Frame Rate
- Main stream: 2880 × 1620@(1–25/30 fps) / Sub stream: 640 × 360@(1–25/30 fps) / Values above are maximum per stream; total limited by encoding capacity.
- Video Bit Rate
- H.264: 32 kbps–4096 kbps; H.265: 32 kbps–4096 kbps
- Day/Night
- Auto (ICR)/Color/B/W
- WDR
- DWDR
- Image Rotation
- 0°/180°
- Built-in MIC
- Yes, built-in Mic
- Built-in Speaker
- Yes, built-in speaker
- Audio Compression
- G.711a; G.711Mu; PCM
- Network Port
- RJ-45 (10/100 Base-T)
- Wi-Fi
- IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
- Wi-Fi Pairing
- Bluetooth pairing
- Interoperability
- ONVIF (Profile S & Profile G & Profile T); CGI
- Storage
- Micro SD card (support max. 256 GB)
- Management Software
- Smart PSS Lite; DSS; DMSS
- Mobile Client
- iOS; Android
- Certifications
- CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU
- Power Supply
- 12 VDC
- Power consumption
- Basic: 2.1 W (12 VDC); Max.: 7.1 W (12 VDC) (H.265 + warm light on + sound and light alarm)
- Operating Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity
- ≤95% (RH), non-condensing
- Protection
- IP67
- Camera Button
- Reset button
- Casing Material
- Metal + plastic
- Product Dimensions
- 102.2 mm × Φ109.9 mm (4.02" × Φ4.33")
- Net Weight
- 0.32 kg (0.71 lb)
