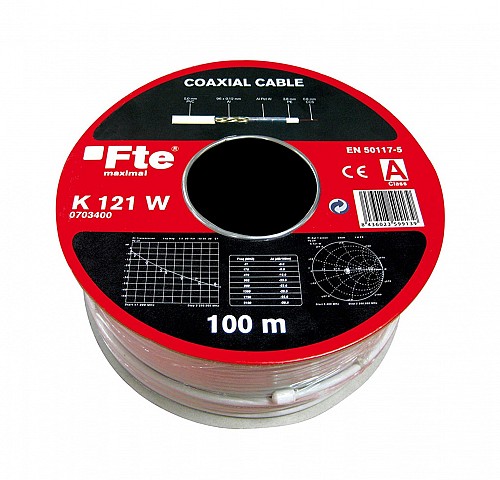

FTE K121W Coaxial Cable 5.0mm 100m
Order code: 21030SKU: 8436023599139EAN: 8436023599139
- Cable Type:RG58
- Material:CCS
- Length:100m
- Cable Diameter:5.0mm
- Screening Wires:96
€40.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
FTE K121W Coaxial Cable 5.0mm 100m

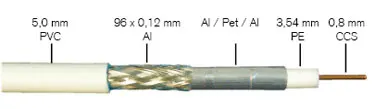

- Impedance (Ω) 75 +/- 3 Ohms
- Inner conductor (mm) ø : 0.8 CCS
- Dielectric meter (mm) ø : 3,54 PE physical foam
- Foil material: Al / Pet / Al
- Braiding material: Al
- Nº of wires(braiding): 96
- Braiding composition: 16 x 6 x 0,12 mm
- Braiding coverage: 80 %
- Outer jacket (mm) Ø: PVC white
- Jacket outer diameter (mm): 5 mm
- Screening factor (30 - 900 MHz): > 85 dB
- Presentation 100m / cardboard reel
- Reaction to fire: Fca
Specifications
- Cable Type
- RG58
- Material
- CCS
- Length
- 100m
- Cable Diameter
- 5.0mm
- Screening Wires
- 96
