FTE K250WD Gold Coaxial RG6 Copper LSZH Cable 100m CPR Dca

Order code: 26450SKU: 8436545306741EAN: 8436545306741

Screening Wires:96
Cable Type:RG6
Cable Diameter:6.8mm
Length:100m
Material:Copper

€80.00incl. VAT

Ships in 2-4 working days

Free pickup from our shop

Description

FTE K250WD Gold Coaxial RG6 Copper LSZH Cable 100m CPR Dca

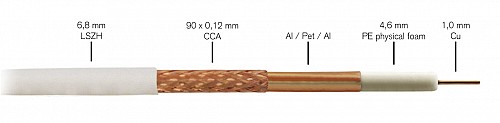

Inner conductor (mm) ø : 1,0 Cu
Dialectric meter (mm) ø : 4,6
Foil : Al / Pet / Al (external layer copper colored)
Braid : CCA (copper colored)
Nº of wires (braiding) : 96
Screening factor (30-900 MHz) : > 86 dB
Reaction to fire : Dca - s1, d1, a1
Jacket outer diameter : 6,8 mm LSZH
Attenuation (dB/100 m) : 47 MHz: 4,8 / 175 MHz: 8,3 / 470 MHz: 13,5 / 862 MHz: 18,8 / 950 MHz: 19,9 / 1350 MHz: 24,0 / 1750 MHz: 27,5 / 2150 MHz: 30,9

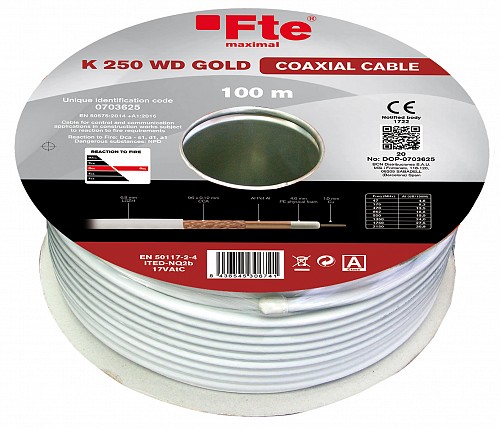

Presentation: 100 m / Reel cardboard
