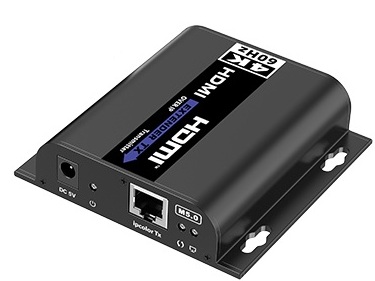

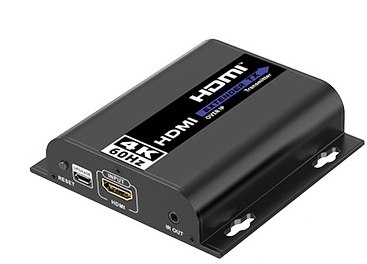

The Lenkeng LKV483-M5.0-TX is a high-performance HDMI Transmitter (TX) designed for distribution networks. Powered by Lenkeng’s proprietary ipcolor STREAM technology, it is engineered to deliver high-definition, low-latency 4K video signals over long distances via standard Ethernet infrastructure.
- Video Resolution: Supports ultra-high-definition resolutions up to 4096×2160 @ 60Hz (HDMI 2.0 and HDCP 2.2 compliant), ensuring visually stunning and crisp playback.
- Transmission Range: Capable of sending uncompressed-like signals up to 120 meters (393 feet) using a single standard Category 6 (Cat6) network cable. It is backward compatible with Cat5e (100m) and Cat5 (80m).

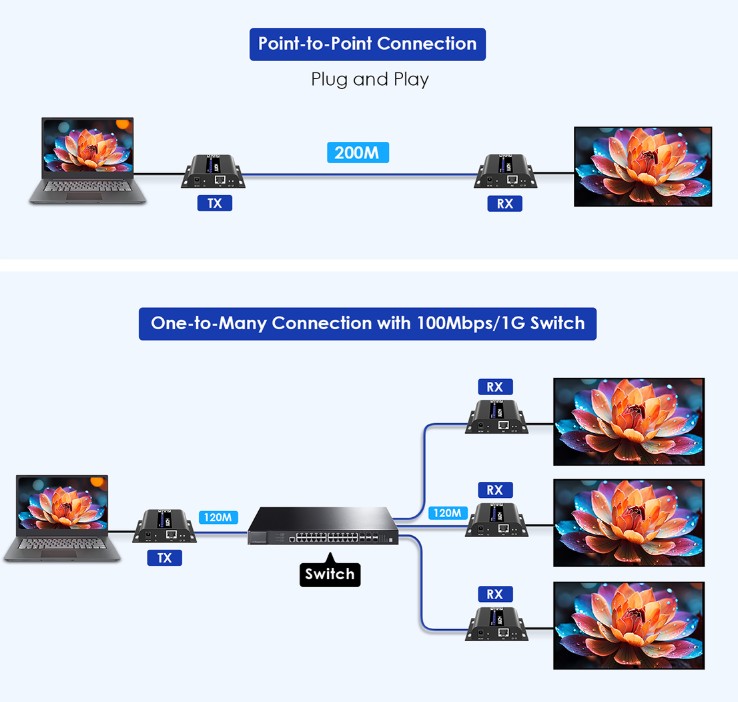

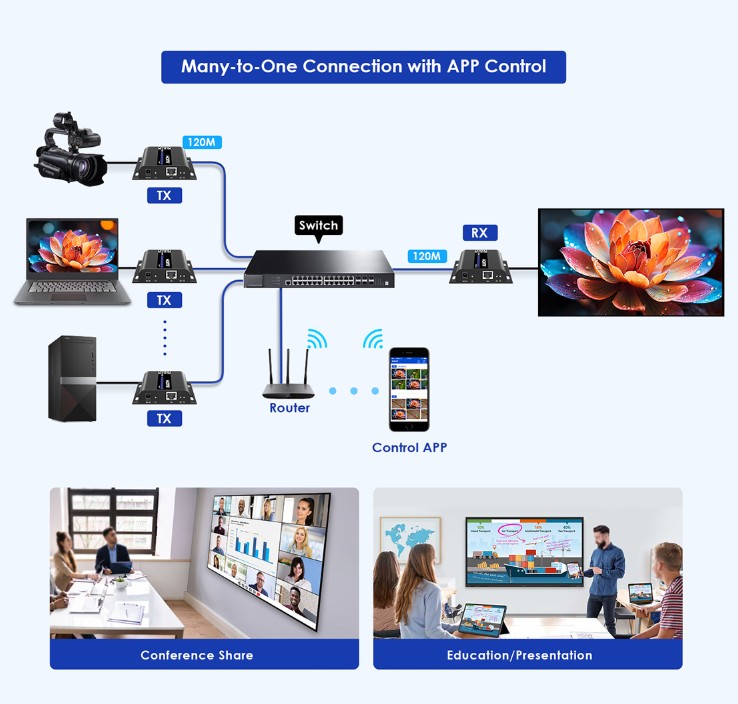

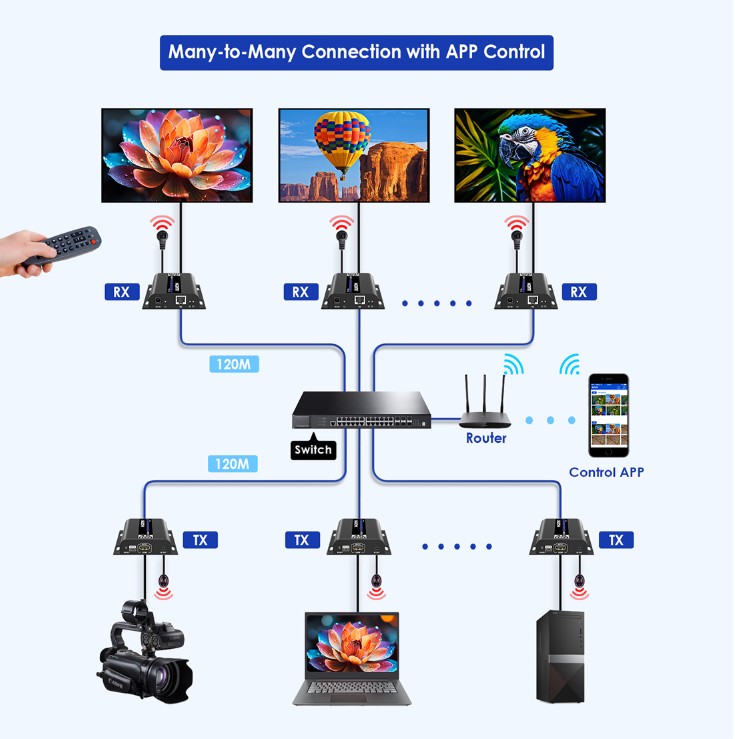

- Matrix & Scalability: When paired with matching receivers (RX) and a standard Gigabit network switch, it handles one-to-one, one-to-many, many-to-one, and many-to-many configurations. The network architecture allows control for up to 256 distinct inputs and 256 outputs, making it highly flexible for digital signage or command centers.
- IR Passback: Supports infrared (IR) routing (20kHz~60kHz) allowing operators to control the video source device remotely from the display end of the system.

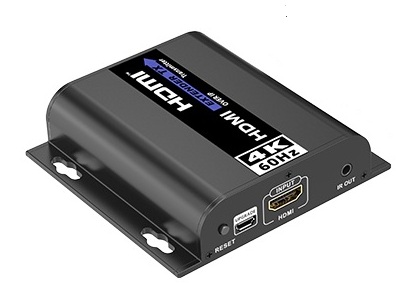

- Local Loop Out: The transmitter housing features a secondary local HDMI loop-out port, allowing you to monitor the active signal feed directly at the source location without splitters.
- App Control: Signal sources can be effortlessly managed, paired, and routed using a mobile or desktop management application.
