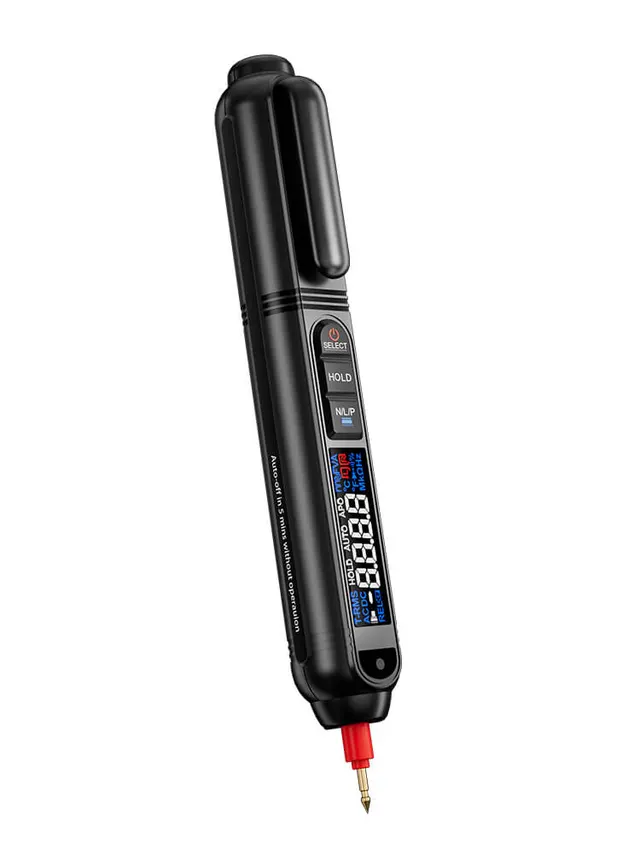

Noyafa Digital Multimeter Pen for Voltage, Resistance, Continuity, Capacitance, Phase Sequence & Diodes NF-620

€23.00

Categories: GENERAL

24/7 SUPPORT

Support every time

ACCEPT PAYMENT

Visa, Paypal, Master

SECURED PAYMENT

100% secured

FREE SHIPPING

Order over €60

15 DAYS RETURN

15 days guarantee

Test range: DC 6V - 1000V, AC 6V - 700V, 50Hz - 800Hz.
Functions: Voltage, Resistance, Continuity, Capacitance, phase sequence and diode tests (Live & Neutral), NCV, etc.
Accuracy: ±0.8%+10 for DC1000V & AC700V. ±0.5%+4 for DC/AC6V to 600V.
Operation: Press to start and test. Detectable tester probes.
Overload protection: DC1000V & AC700V. Auto-display "OL" on the screen.
Pen type: Lightweight, compact, and portable. Fits in pockets and toolbags.

Specification

Model NF-620
Display FNST with color
Max display 5999(3/5/6)automatic polarity display
Testing method Double integral A/D conversion
Sampling rate 3 times/s
Over range display "OL"
Working Environment 0-40°C, H<80%
Working Voltage DCV/ACV
Resistor/Capacitor/Diode Yes
Frequency 1HZ-10MHZ(Voltage <36V)
Continuity test
Non-contact phase sequence measurement Yes
RMS Yes
NCV Yes
Backlight Yes
Unit of Temp °C/°F
Flashlight Yes
Power Supply AAA 1.5V

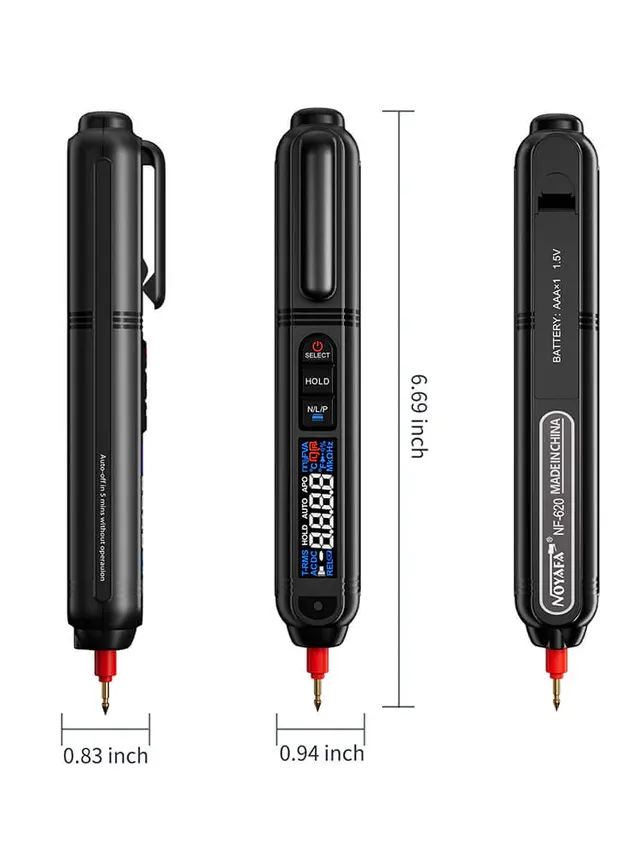

Product Size 171X24x21mm
