Renata

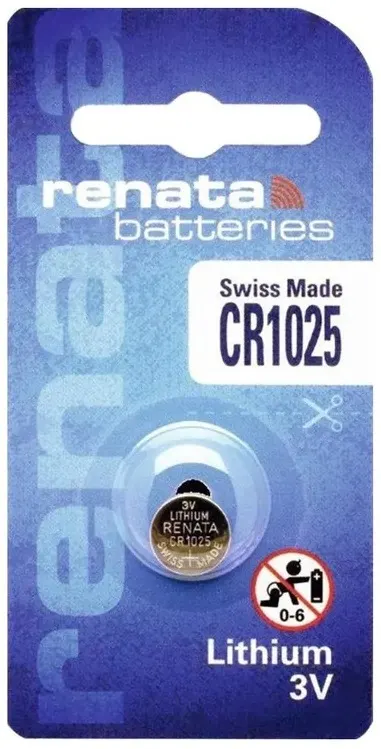

Renata Lithium CR1025 Button Battery (1pc)
Order code: 30427EAN: 8023389224388
- Size:CR1025
- Connector:Contact retainers
- Technology:Lithium
- Voltage:3 V
- Capacity (mAh / Ah):30 mAh
- All specifications
€2.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- Excellent solderability
- For wave soldering
- High energy density
- Low self-discharge
- Solder stainless steel AISI 301, thickness 0.15mm
- Tinned soldering, through-plated, thickness min. 2.5 microns. Solderability according to MIL-STD 883C, Method 2003.3
Specifications
- Size
- CR1025
- Connector
- Contact retainers
- Technology
- Lithium
- Voltage
- 3 V
- Capacity (mAh / Ah)
- 30 mAh
- Height
- 15 mm
- (Ø)
- 10 mm
- Weight
- 1 g
- Temperature Range
- -40 to +85 °C
- Alternative battery types
- BR1025 / DL1025 / ECR1025 / KCR1025 / KL1025 / KECR1025 / LM1025 / 5033LC
- Type
- Solder pins / vertical
- Content
- 1 pc(s)
- Rechargeable
- No
- Dim
- (Ø x H) 10 mm x 15 mm
- Product Type
- Button cell
