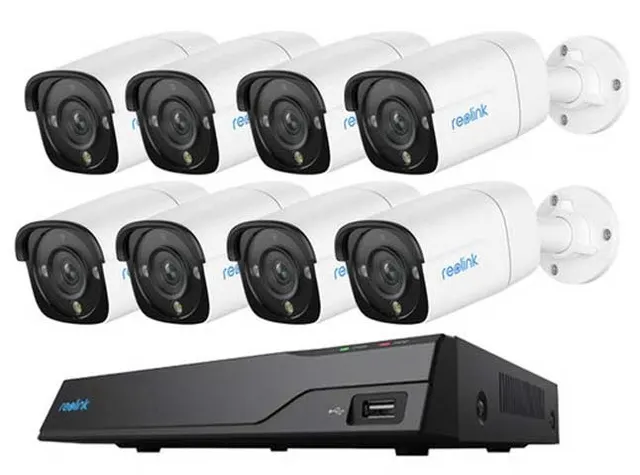

Reolink KIT 16xChNVR+8x12MP Bullet+4TB NVS16-12MB8

Specifications

IP Video Input

PoE IP Camera x 16

Audio Input

Cameras with built-in MIC

Video Output

VGA, HDMI

Display Resolution

HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768

Audio Output

1-channel, RCA

Live View/Playback Resolution

7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p

Video Format

H.265, H.264

Synchronous Playback

Up to 4 channels

SATA

2 x SATA interface (1 x 4TB HDD included)

Capacity

Up to 12TB (Max. 6TB capacity for each HDD)

External HDD

No

USB interface

2 x USB 2.0

Network Interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN

PoE

IEEE 802.3af, 48V Active

Max. Power Per Port

25W

Supported Standard

IEEE 802.3 af/at

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browser Supported

Edge, Firefox, Chrome, Safari

OS Supported

Windows, Mac OS; Smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Power Supply

DC 48V~54V

Power consumption

<10W (without HDD&PoE)

Working Environment

Temperature: -10°C~+45°C  Humidity: 10%~90%

Dimensions

330 x 45 x 285mm

Weight

460g

Image Sensor

1/2.49" CMOS Sensor

Video Resolution

Default: 4512X2512 (12 megapixels) at 20 fps

Lens

f=4.0mm; F=1.6, with IR-cut filter

Videoformat

H.265

Field of View

Horizontal: 93°; / Vertical: 49°

Day & Night

Auto-switching with IR-cut filter

Infrared Night Vision

30 meters (LED: 2pcs/28mil/850nm)

Color Night Vision

Spotlight: 1pcs/4.3W/6500K/700 Lumens

Audio

Built-in microphone and speaker

DC Power

DC 12.0V⎓1A,  <12W

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Frame Rate

Mainstream: 2fps - 20fps (default: 20fps); / Substream: 4fps - 20fps (default: 10fps)

Code Rate

Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps); / Substream: 128Kbps - 1024Kbps (default: 768Kbps)

Smart Alarm

Motion detection; person detection; vehicle detection; pet detection

Temperature

Operating temperature: -10°C to +55°C  (14°F~131°F)

Humidity

Operating humidity: 10% – 90%

Weatherproof

IP67

Dimension

Φ67*187mm
