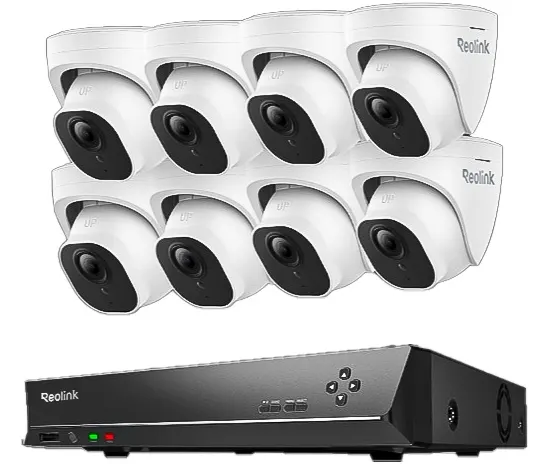

Reolink KIT 16xChNVR+8x8MP Dome+4TB RLK16-800D8-8MP

Specifications

IP Video Input

PoE IP Camera x 16

Audio Input

Cameras with built-in MIC

Video Output

VGA, HDMI

Display Resolution

HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 /  VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768

Audio Output

1-channel, RCA

Live View/Playback Resolution

7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p

Video Format

H.265

Synchronous Playback

Up to 4 channels

SATA

2 x SATA interface (1 x Seagate 4TB HDD included)

Capacity

Up to 12TB (Max. 6TB capacity for each HDD)

External HDD

No

USB interface

2 x USB 2.0

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN / 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

Max. Power Per Port

25W

Supported Standard

IEEE 802.3 af/at

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browser Supported

Firefox, Chrome, Edge, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Power Supply

DC 52V/2.88A

Power consumption

<10W (without HDD&PoE)

Working Environment

Temperature: -10°C~+55°C (14°F~131°F) / Humidity: 10%~90%

Dimensions

330 x 45 x 285mm

Weight

480g

Image Sensor

1/2.49" CMOS Sensor

Video Resolution

Default: 3840X2160 (8 megapixels) @20FPS

Lens

f=4.0 mm fixed, F=2.0, with IR cut

Field of View

Horizontal: 87° Vertical: 44°

Day & Night

IR-cut filter with auto-switching

Night Vision

30 meters (100ft) (LED: 18pcs/14mil/850nm)

Frame Rate

Mainstream: 2fps - 20fps (default: 20fps) / Substream: 4fps - 15fps (default: 10fps)

Code Rate

Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps) / Substream: 64Kbps - 512Kbps (default: 256Kbps)

Audio

Built-in microphone

Smart Alarms

Person detection/vehicle detection/motion detection

Recording Modes

Motion-triggered recording (default); Scheduled recording, 24/7 recording

PoE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓ 1A, <12W

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps RJ45

Temperature

Operating temperature: -10°C~+55°C

Humidity

Operating humidity: 10% ~ 90%

Waterproof

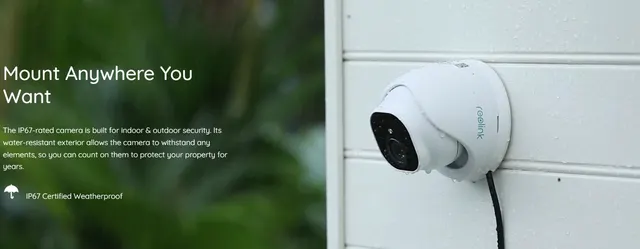

IP67

Dimension

Φ66 x 192mm
