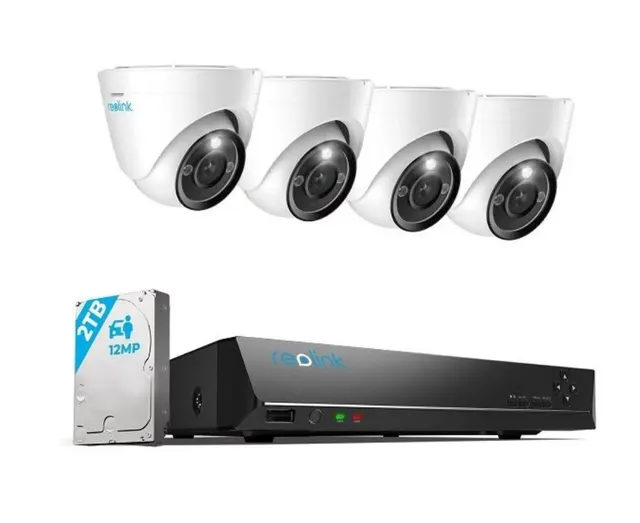

Reolink KIT 8xChNVR+4x12MP Dome+2TB NVR RLK8-1200D4-A

Specifications

Hardware

V2

IP Video Input

PoE IP Camera x 8

Audio Input

Cameras with built-in MIC

Video Output

VGA, HDMI

Display Resolution

HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 / VGA: 1920x1080, 1280x1024, 1280x720, 1024x768

Audio Output

1-channel, RCA

Video Format

H.265

Live View/Playback Resolution

7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p

Synchronous Playback

Up to 4 channels

SATA

1 x SATA interface (1 x 2TB HDD included)

External HDD

1 eSATA interface for HDD

Capacity

Up to 12TB (Max. 6TB capacity for each HDD)

USB interface

2 x USB 2.0

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN  / 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

Max. Power Per Port

25W

Supported Standard

IEEE 802.3af/at

Network Protocols

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browsers Supported

Edge, Firefox, Chrome, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Power Supply

DC 48V~53V

Power consumption

<10W (without HDD & PoE)

Working Environment

Temperature: -10°C~+45°C, humidity: 10%~90%

Dimensions

260 x 41 x 230mm

Weight

510g

Image Sensor

1/2.49" CMOS Sensor

Video Resolution

Default: 4512X2512 (12 Megapixels) at 20 frames/sec

Lens

f=4.0mm; F=1.6, with IR-cut filter

Field of View

Horizontal: 93° / Vertical: 49°

Day & Night

Auto-switching with IR-cut filter

Infrared Night Vision

30 meters (LED: 2pcs/28mil/850nm)

Color Night Vision

Spotlight: 1pcs/4.3W/6500K/700 Lumens

Audio

Built-in microphone and speaker

PoE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓1A, <12W

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Frame Rate

Mainstream: 2fps - 20fps (default: 20fps) / Substream: 4fps - 20fps (default: 10fps)

Code Rate

Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps) / Substream: 128Kbps - 1024Kbps (default: 768Kbps)

Smart Alarm

Motion detection; person detection; vehicle detection; pet detection

Record Mode

Motion-triggered recording (default); scheduled recording; 24/7 recording

Temperature

Operating temperature: -10°C~+55°C

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP67

Dimension

Φ117.4*103.7mm
