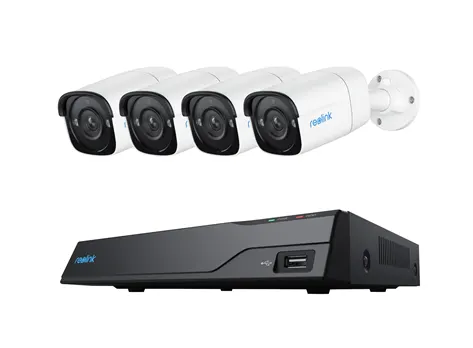

Reolink KIT 8xChNVR+4x5MP Bullet+2TB RLK8-410B4-5MP (NVS8-5MB4)

Specifications

Image Sensor

1/2.49" CMOS Sensor

Video Resolution

Default: 2560x1920 (5.0 Megapixels) at 25 frames/sec

Lens

f=4.0mm fixed; F=2.0, with IR-cut filter

Video Format

H.265

Field of View

Horizontal: 87° / Vertical: 44°

Day & Night

IR-cut filter with auto-switching

Night Vision

30 meters (100 ft) (LED: 18pcs/14mil/850nm)

Audio

Built-in microphone

PoE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓1A, <12W

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Storage

microSD card slot (Max. 256GB)

Frame Rate

Mainstream: 2fps - 25fps (default: 25fps) / Substream: 4fps - 15fps (default: 10fps)

Code Rate

Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps) / Substream: 64Kbps - 512Kbps (default: 256Kbps)

Browser Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection; person detection; vehicle detection; pet detection

Record Mode

Motion-triggered recording (default); scheduled recording; 24/7 recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Smart Home

Google Assistant

Temperature

Operating temperature: -10°C ~ +55°C (14°F ~ 131°F)

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP67

Dimension

Φ105*95mm

Weight

467.5g
