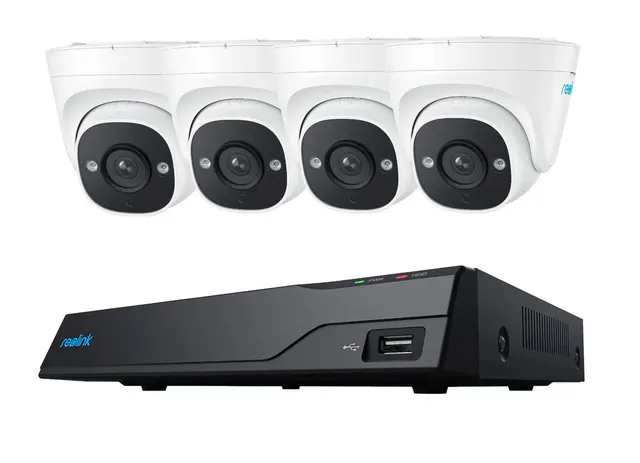

Reolink KIT 8xChNVR+4x5MP Dome+2TB RLK8-520D4-5MP (NVS8-5MD4)

Specifications

IP Video Input

PoE IP Camera x 8

Audio Input

Cameras with built-in MIC

Video Output

VGA, HDMI

Display Resolution

HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768

Audio Output

1-channel, RCA

Live View/Playback Resolution

7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p

Video Format

H.264

Synchronous Playback

Up to 4 channels

SATA

1 x SATA interface (1 x 2TB HDD included)

Capacity

Up to 12TB (Max. 6TB capacity for each HDD)

External HDD

1 eSATA interface for HDD

USB interface

2 x USB 2.0

Network Interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN

PoE

IEEE 802.3af, 48V Active

Max. Power Per Port

25W

Supported Standard

IEEE 802.3 af/at

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browser Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Power Supply

DC 48V~53V

Power consumption

<10W (without HDD&PoE)

Working Environment

Temperature: -10°C~+45°C  Humidity: 10%~90%

Dimensions

255 x 49.5 x 232mm

Weight

480g

Limited Warranty

2-year limited warranty

Image Sensor

1/2.7" CMOS sensor

Video Resolution

Default: 2880 x 1616 (5.0 Megapixels) at 30 frames/sec

Lens

f=4.0mm fixed; F=2.0, with IR-cut filter

Field of View

Horizontal: 80° /  Vertical: 42°

Day & Night

Auto-switching with IR-cut filter

Night Vision

30 meters (100ft) (LED: 2pcs/1.8W/850nm)

Audio

Built-in microphone

DC Power

DC 12.0V⎓1A, <12W

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Storage

MicroSD card slot (Max. 256GB)

Frame Rate

Mainstream: 2fps - 30fps (default: 30fps) /  Substream: 4fps - 15fps (default: 10fps)

Code Rate

Mainstream: 1024Kbps -8192Kbps (default: 6144Kbps) /  Substream: 64Kbps - 512Kbps (default: 256Kbps)

Smart Alarm

Motion detection/Person detection/Vehicle detection

Record Mode

Motion-triggered recording (default); scheduled recording; 24/7 recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Smart Home

Google Assistant

Temperature

Operating temperature: -10°C ~ +55°C

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP66

Dimension

Φ105*93mm
