Reolink POE IP Bullet Camera 5MP Fixed RLC-510A (P320 V2)

Specifications

Image Sensor

1/2.7" CMOS Sensor

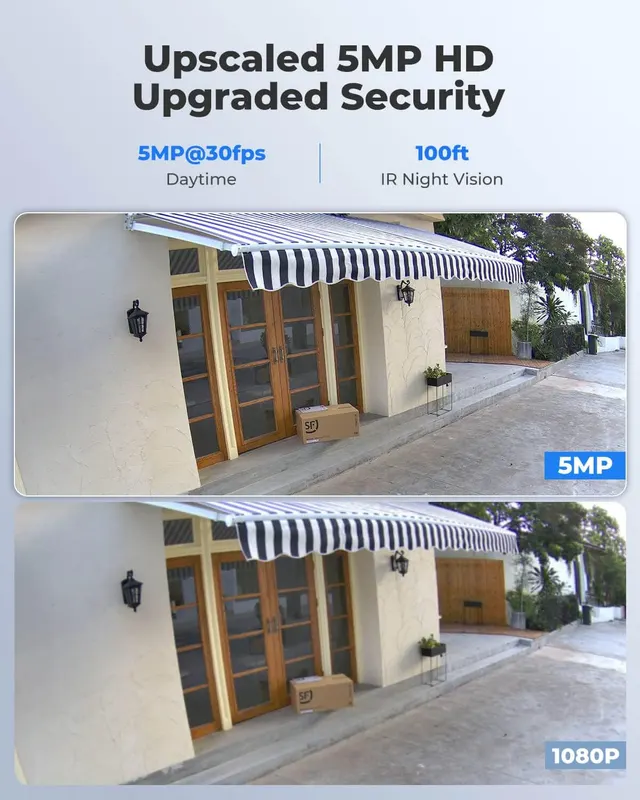

Video Resolution

2560x1920 (5.0 Megapixels)@25fps

Lens

f=4.0mm fixed / F=2.0, with IR-cut filter

Video Compression

H.264/H.265

Field of View

Horizontal: 80° / Vertical: 42°

Day & Night

Auto-switching with IR-cut filter

Night Vision

Up to 30 meters (100ft) (LED: 18pcs/14mil/850nm)

Audio

Built-in microphone

PoE

IEEE 802.3af / 48V Active

DC Power

DC 12.0V-1A / <12W

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps / RJ45

Storage

microSD card slot (support up to 512GB)

Frame Rate

Mainstream: 2fps - 25fps (default: 25fps) / Substream: 4fps - 15fps (default: 10fps)

Code Rate

Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps) / Substream: 64Kbps - 512Kbps (default: 256Kbps)

Browser Supported

IE / Edge / Chrome / Firefox / Safari

OS Supported

PC: Windows / Mac OS / Smartphone: iOS / Android

Smart Alarm

Person/vehicle/animal detection / Motion detection

Record Mode

Motion-triggered recording (default); scheduled recording; 24/7 recording

Protocol & Standard

HTTPS / SSL / TCP/IP / UDP / HTTP / IPv4 / UPnP / RTSP / RTMP / SMTP / NTP / DHCP / DNS / DDNS / FTP / P2P

Maximal User Access

20 users (1 admin account & 19 user accounts) / Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Smart Home

Google Assistant

Temperature

Operating temperature: -10°C - +55°C (14°F - 131°F)

Humidity

Operating humidity: 10% - 90%

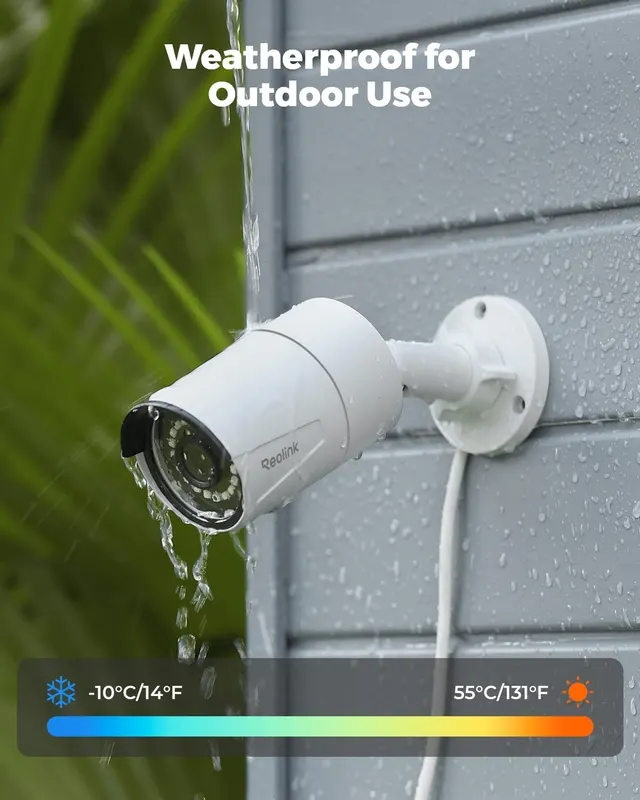

Weatherproof

IP67

Dimensions

Φ186*67mm

Weight

415g
