Reolink POE NVR 6-port with 4 POE (without HDD) RLN4E (NVS4E)

Specifications

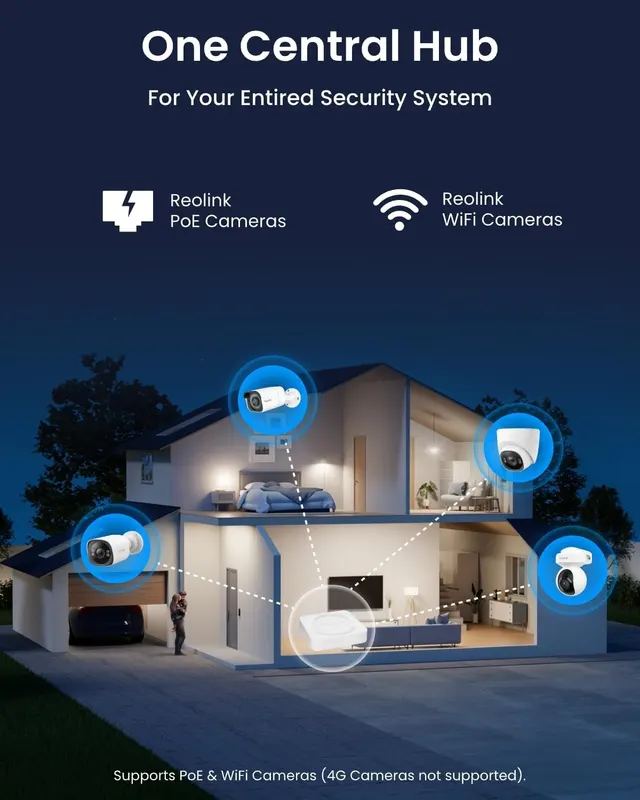

IP Video Input

Up to 6 IP Cameras

Audio Input

Cameras with built-in MIC

Video Output

1 HDMI / 1 VGA

Display Resolution

HDMI: 3840x2160 / 1920x1080 / 1280x1024 / 1280x720 / VGA: 1920x1080 / 1280x1024 / 1280x720

Audio Port

1 audio out channel / RCA

Video Format

Intelligent H.265+ / H.265 / H.264

Live View/Playback Resolution

7680*2160 / 4608*1728 / 4512*2512 / 4096*3072 / 3840*2160 / 2560*2560 / 2560*1920 / 2560*1440 / 2048*1536 / 2304*1296 / 1080p / 720p

Synchronous Playback

1-4 channels (Supports only 1-channel playback if you view it in 8MP or higher resolution)

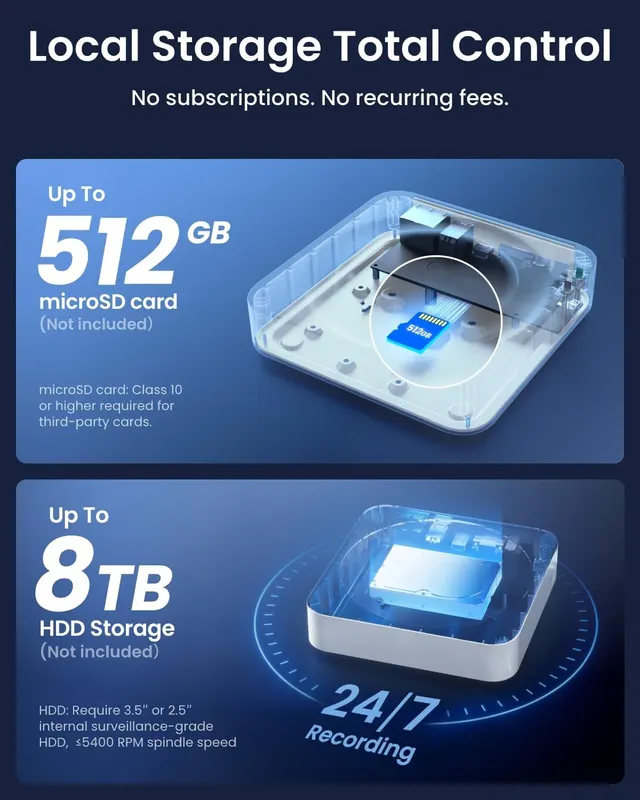

SATA

1 SATA interface for 2.5'' or 3.5'' HDD

Capacity

Up to 8TB

USB interface

2 x USB 2.0

Network Interface

4 x RJ-45 / 100Mbps self-adaptive PoE Ethernet interface for IP cameras / 1 x RJ-45 / 100Mbps self-adaptive for LAN/WAN

Max. Power Per Port

25W

Supported Standard

IEEE 802.3 af/at

Network Protocols

HTTP / TCP/IP / UDP / DHCP / P2P / UPNP / RTSP / RTMP / SMTP /  SSL/TLS / DNS / DDNS / NTP / FTP

Browsers Supported

Edge / Firefox / Chrome / Safari

OS Supported

PC: Windows / Mac OS / smart phone: iOS / Android

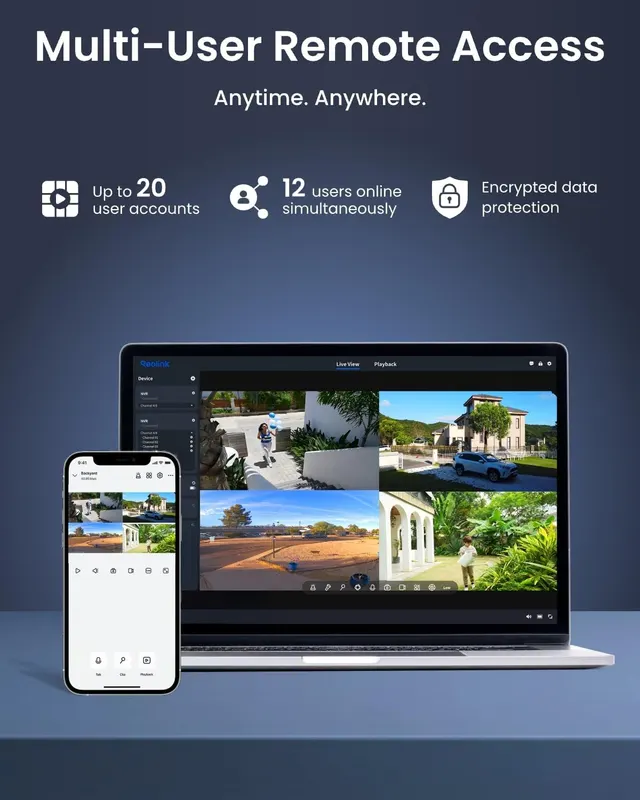

Max. User Access

20 users (1 admin account & 19 user accounts) / supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

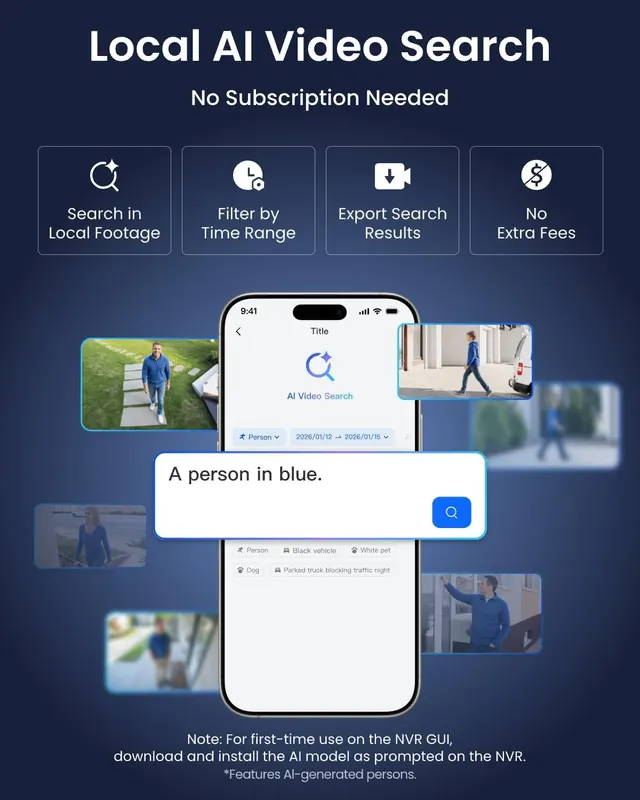

Smart Detection

Motion detection; person/vehicle/animal detection

Heatmap

Yes

Power Supply

DC 52V/1.25A

Power consumption

<2.5W (without HDD & PoE)

Working Environment

Temperature: -10°C ~ +45°C (14°F ~ 113°F); Humidity: 10% ~ 90%

Dimensions

198mm(W) x 47mm(H) x 198mm(D)

Weight

588g (without HDD)
