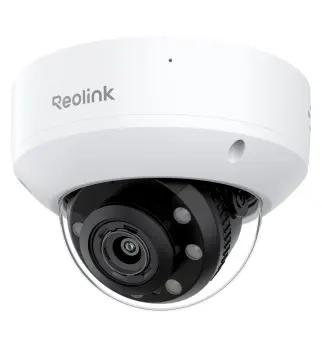

Reolink PRO IP POE Dual Illumination 8.0MP Dome 2.7-13.5mm SED Motorised RP-PCV8MZ

Specifications

Image Sensor

1/2.8" CMOS sensor

Resolution

3840x2160(8Megapixels) @30fps

Lens

f=2.7-13.5mm, Max: F1.6

Zoom

5X optical zoom

Video Compression

H.265/H.264

Field of View

H:108°-32° / V:56.2°-18° / D:133°-36.7°

Day & Night

IR-cut filter with auto-switching

Infrared Night Vision

Up to 30 meters (100ft) LED:4pcs/3W/850nm

Color Night Vision

With spotlights: 2pcs/0~3W adjustable/4000K/350 lumens

Frame Rate

Main Stream: 2fps - 30fps(default: 30fps) / Sub Stream: 4fps - 15fps(default: 10fps)

Code Rate

Main Stream: 2048Kbps -9216Kbps(default:7168Kbps) / Sub Stream: 64Kbps - 512Kbps(default: 512Kbps)

Audio

Two-Way Audio

PoE

IEEE 802.3af, 48V, Active

DC Power

DC 12.0V/1A,  <12W

Power Port

DC power port

Ethernet Port

One  10M/100Mbps  RJ45

Storage

MicroSD card slot (Max. 512GB) Reolink NVR, ftp

Reset Button

Yes

Alarm In/Out

1 input, 1 output (input:12V/1A; output:12V/500mA)

Audio In/Out

Built-in Microphone&Speaker

Browsers Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, Onvif

User Access

Max. 20 users (1 admin & 19 user);  / Max. 12 simultaneous streams (2 main & 10 sub streams)

Smart Alarm

Motion detection/Person Detection/Motor Vehicle Detection/Non-motorized Vehicle Detection/Animal Detection/Package Detection

Perimeter Protection

Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert : Smart Event Detection : Object Removal (beta) , Forgotten Object (beta)

Recording Modes

Motion-triggered recording (default); Scheduled recording, 24/7 recording

Smart Home Compatibility

Google Assistant

AI Video Search

Yes

AI ISP

Yes

HDR

Yes

Time Lapse

YES

Operating Temperature

-30°C~+55°C

Operating Humidity

10% ~ 90%

Weatherproof

IP67

Dimensions

138*100mm

Weight (Without Accessories)

845g
